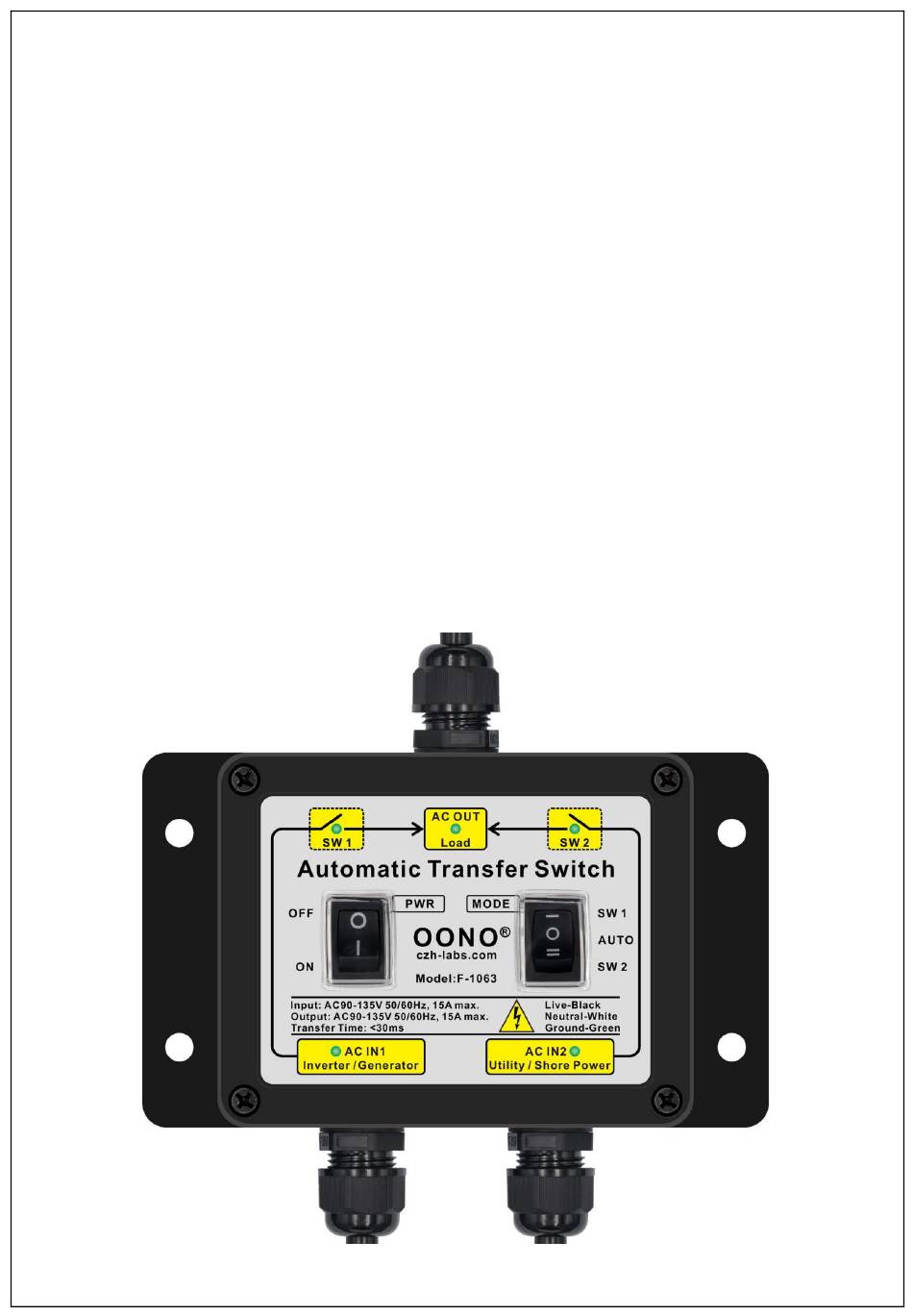

- Page 1 ® OONO CZH-LABS.com Manual and Automatic Transfer Switch AC 120V 15 Amp Model: F-1063...

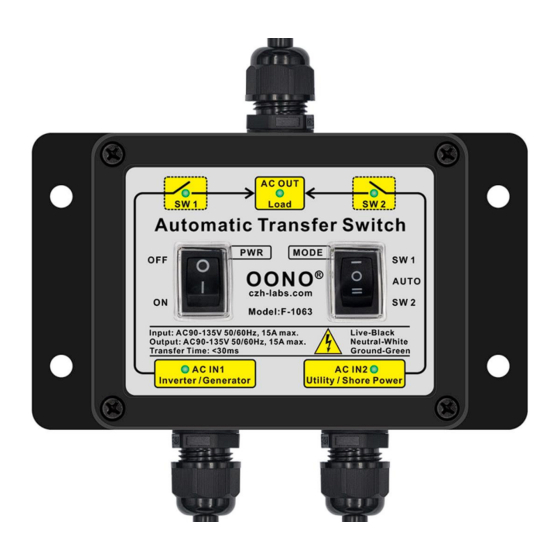

- Page 2 FEATURES: ⚫ OONO F-1063 Manual and automatic transfer switch, an easy to mount 15 Amp inline transfer module provides switching between AC IN1 (Inverter or Generator) and AC IN2 (Utility or Shore Power) AC source. With input and output and switch status indicators. It has a manual power switch function, which can quickly control the on and off of the output.
- Page 3 CABLE CONNECTS: AC IN1: 14AWG (2.08 square millimeter) x 3 cores, recommended connect Inverter or Generator. AC IN2: 14AWG (2.08 square millimeter) x 3 cores, recommended connect Utility or Shore Power. AC OUT: 14AWG (2.08 square millimeter) x 3 cores, power output, connect to Load. Cables Color: Black - AC Live Wire, White - AC Neutral Wire, Green - Ground Wire INTERNAL SIMPLE SCHEMATIC:...
- Page 4 Facilitate the operation of the device by familiarising yourself with its adju stments and indications. ⚫ CZH-LABS and Eelectronics-Salon modules are not suitable for use or as part of life support systems, or systems that might create hazardous situations of kind.
