Summary of Contents for Scion-Tech SC08.MX3000

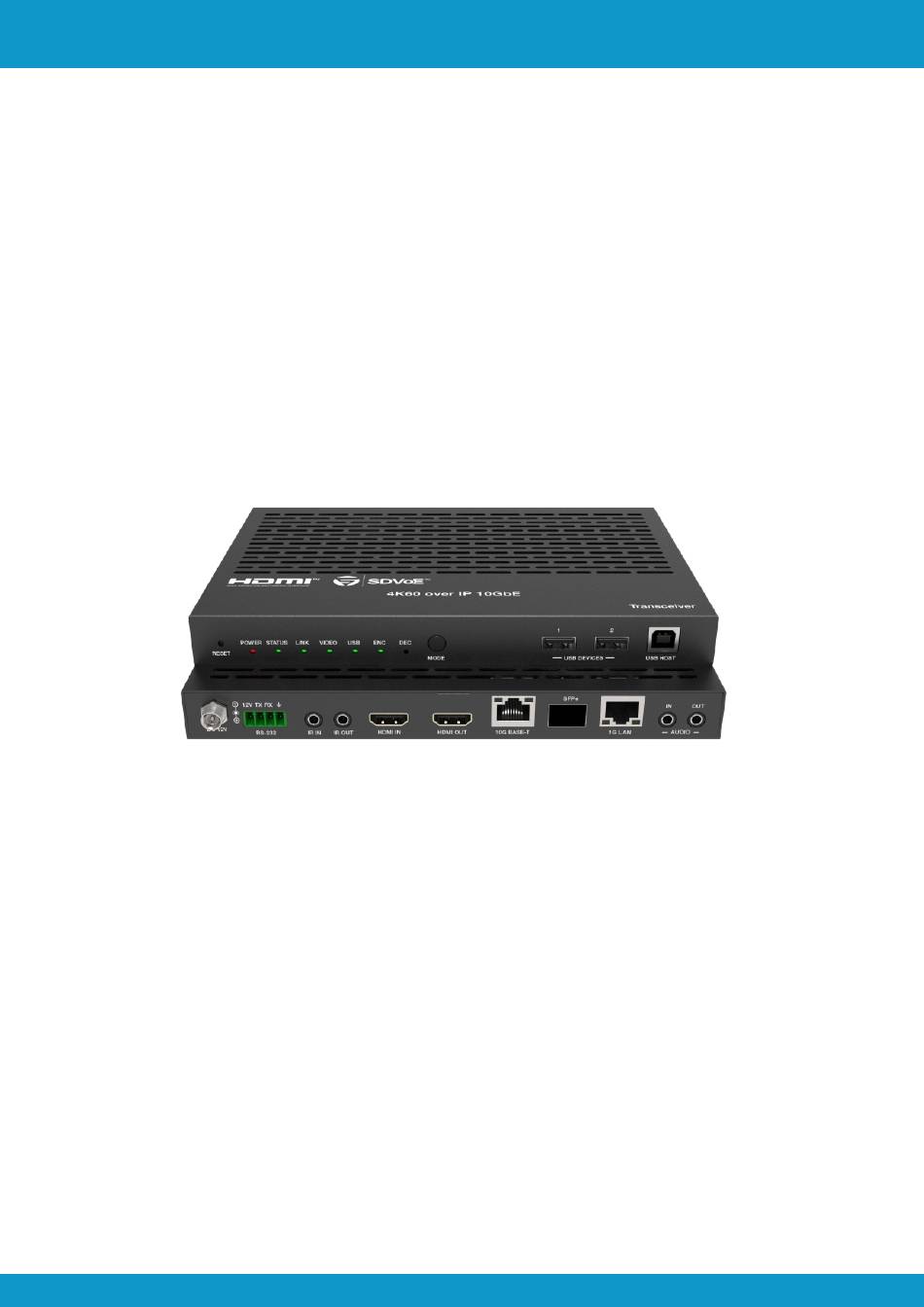

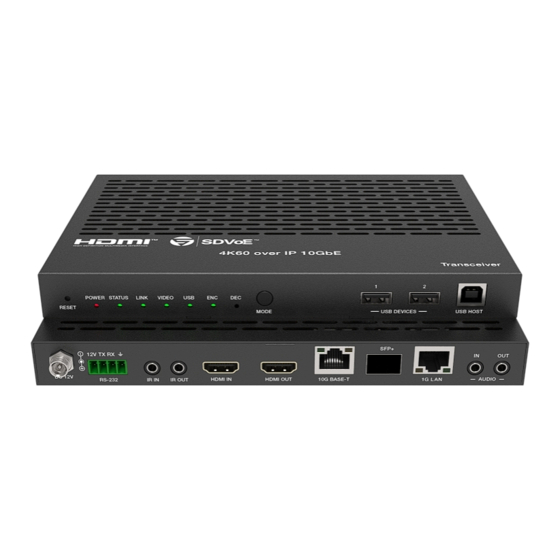

- Page 1 Scion Tech SC08.MX3000 User Manual Video over IP with Preview 4K/60Hz 4:4:4 Streaming Transceiver SDVoE User Manual Version 4.0 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484...
- Page 2 Scion Tech SC08.MX3000 User Manual Thank you for purchasing this product Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 Scion Tech SC08.MX3000 User Manual SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. ● Unpack the equipment carefully and save the original box and packing material for possible future shipment.
-
Page 4: Table Of Contents
Scion Tech SC08.MX3000 User Manual Table of Contents Product Introduction........................1.1 About 10G Network....................1.2 Features........................Specification..........................Panel Description......................... 3.1 Front Panel........................3.2 Rear Panel........................IR Pin Connections........................Application Drawing........................Maintenance..........................6.1 Servicing........................6.2 Warranty........................6.3 Returns......................... 6.4 Warranty Limitations and Exclusions................. -
Page 5: Product Introduction
Unlike traditional AV extension technology, such as HDBaseT, where transmitters and receivers are connected point to point or joined together using custom matrix switches, the SC08.MX3000 is based on the inter compatible BlueRiver™ technology and connected using standard, off the shelf 10G Layer 2/3 network switches. -
Page 6: Specification
Scion Tech SC08.MX3000 User Manual 2. Specifications Connections HDMI Input: 1 x HDMI Type-A Female HDMI Output: 1 x HDMI Type-A Female Audio In: 1 x 3.5mm Stereo Jack Socket Audio Out: 1 x 3.5mm Stereo Jack Socket Infra-Red In: 1 x 3.5mm Stereo Jack Socket Infra-Red Out: 1 x 3.5mm Stereo Jack Socket... -
Page 7: Panel Description
Scion Tech SC08.MX3000 User Manual 3. Panel Description 3.1 Front Panel Power Status Link Video Reset USB DEVICES USB Host MODE Number Name Function Reset Button Press and hold for 5 seconds to restore factory default settings. Power The LED illuminates RED when powered on. -
Page 8: Rear Panel
Scion Tech SC08.MX3000 User Manual 3.2 Rear Panel Description TX RX HDMI IN HDMI OUT AUDIO IR IN IR OUT RS232 SFP+ 1G LAN 10G (PoE) Number Name Function DC 12V 12 Volt DC Power Input RS-232 Connects to a PC or control device for RS232 Pass-Through IR Input Infrared input for sending IR data. -
Page 9: Application Drawing
Scion Tech SC08.MX3000 User Manual 5.0 Application Drawing Page 5 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 10: Maintenance
Scion Tech SC08.MX3000 User Manual 6.0 Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, pint thinner of benzene to clean these devices. 6.1 Servicing Damage requiring service: This product should be serviced by a qualified service engineer if: ●... -
Page 11: Warranty Limitations And Exclusions
Scion Tech SC08.MX3000 User Manual 6.4 Warranty limitations and Exclusions This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER...
