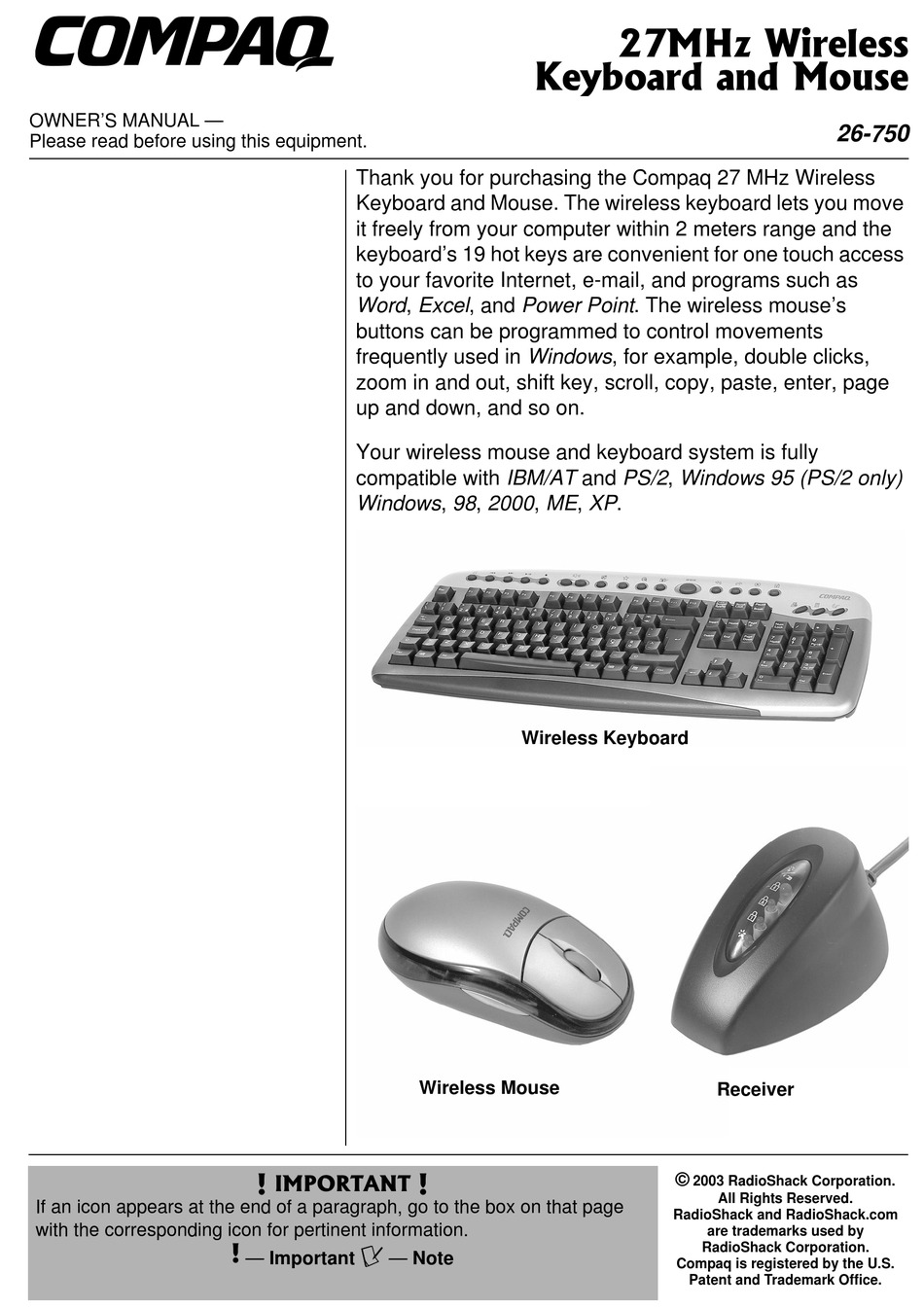

OWNER'S MANUAL —
Please read before using this equipment.
If an icon appears at the end of a paragraph, go to the box on that page
with the corresponding icon for pertinent information.
Thank you for purchasing the Compaq 27 MHz Wireless
Keyboard and Mouse. The wireless keyboard lets you move
it freely from your computer within 2 meters range and the
keyboard's 19 hot keys are convenient for one touch access
to your favorite Internet, e-mail, and programs such as
Word, Excel, and Power Point. The wireless mouse's
buttons can be programmed to control movements
frequently used in Windows, for example, double clicks,
zoom in and out, shift key, scroll, copy, paste, enter, page
up and down, and so on.
Your wireless mouse and keyboard system is fully
compatible with IBM/AT and PS/2, Windows 95 (PS/2 only)
Windows, 98, 2000, ME, XP.
!
IMPORTANT
!
— Important
— Note
Keyboard and Mouse
Wireless Keyboard
Wireless Mouse
!
27MHz Wireless
Receiver
©
2003 RadioShack Corporation.
All Rights Reserved.
RadioShack and RadioShack.com
are trademarks used by
RadioShack Corporation.
Compaq is registered by the U.S.
Patent and Trademark Office.
26-750
Advertisement
Table of Contents
Related Manuals for Compaq 27MHz
Summary of Contents for Compaq 27MHz
- Page 1 If an icon appears at the end of a paragraph, go to the box on that page with the corresponding icon for pertinent information. — Important Thank you for purchasing the Compaq 27 MHz Wireless Keyboard and Mouse. The wireless keyboard lets you move it freely from your computer within 2 meters range and the keyboard’s 19 hot keys are convenient for one touch access...
-
Page 2: Table Of Contents
Wireless Keyboard, Mouse, and Receiver ... 9 Setting the ID Channel ... 9 Software Installation ... 10 Wireless Mouse And Keyboard Setting Menu ... 10 Customizing the Mouse Settings ... 11 Mouse Button Assignments ... 11 Application Switch/Document Switch ... 13 EasyJump for Windows ... -
Page 3: System Requirements
Ergonomic Mouse Design — lets you hold the mouse comfortably. Optical Sensing Technology — senses mouse movement precisely and smoothly, with no moving parts to replace. USB to PS/2 Adapter — lets you use your mouse with computer either with PS/2 or USB connector. -
Page 4: A Quick Look
Easy-Jump, Auto-Panning, Zoom, and so on. Side Button — You can assign certain functions in the Mouse Properties menu to the left or right side button with the roller button. Side... -
Page 5: Keyboard Hotkeys
LED Indicators on the Receiver There are four LED indicators in the receiver. 1. The top LED lights either red or green as follows: • lights red when the mouse battery power weakens and turns off when fresh batteries are installed. - Page 6 • flashes green slowly when the receiver is preparing to operate. • flashes green rapidly when the mouse moves and goes off when the mouse stops. • flashes green slowly when you hit a key on the keyboard and goes off when you stop.
-
Page 7: Hardware Installation
PS/2 port, or connect the supplied USB to PS/2 adapter to the USB connector and connect it to the mouse’s USB port. Refer to your computer’s manual for the location of PS/2 ports. If your computer is AT type (IBM compatible), please contact your local RadioShack for the optional adapter. -
Page 8: In The Keyboard
3. Replace the battery compartment cover. In the Mouse 1. Press the latch on the top of the battery compartment cover. Then lift off the cover. 2. Insert two AA batteries into the battery compartment according to the battery polarity marked inside the compartment. -
Page 9: Setting Up The Keyboard
Elevation Tab Down Wireless Keyboard, Mouse, and Receiver The wireless keyboard and mouse give you free movement. For optimal performance, place the receiver at least 8 inches (about 20cm) away from the keyboard, mouse and other electrical devices, such as a computer, monitor, and so on. -
Page 10: Software Installation
The top green LED on the receiver flashes. 4. Wait until the green LED on the receiver goes off. Then move the wireless mouse and press any key on the wireless keyboard. If the green LED flashes, the channel connection among the receiver, wireless mouse and keyboard is successfully set. -
Page 11: Customizing The Mouse Settings
Easy-Jump, Auto-Panning, Zoom, and so on. Side Button — You can assign certain functions in the Mouse Properties menu for the left or right side button or operate it with the roller button. in the task bar or click The Button Assignments’... - Page 12 Double Click Speed — Use this function to set the double- click speed of the mouse. Button Swap — select this option if you want to operate the right mouse button as the primary button. Browsing Speed — Adjust your browsing speed to the desired setting.
-
Page 13: Application Switch/Document Switch
Zoom In/Out — When the left or right -button is set to “Zoom In/Out”, you can press the left or right button and roll the roller button to zoom in/out of document windows. -
Page 14: Easyjump For Windows
NOTE Some panels inside the EasyJump circle might appear gray (disabled). This is because your application software does not support those functions. The horizontal and vertical scroll bars only operate on documents that support the driver such as Microsoft Word, Excel, Notepad, and Wordpad. -
Page 15: Zoom Function For Office And Ie Applications
Internet Access — This function opens the Browser to access the Internet. Help — This opens the computer’s Help & Support menu. Control Panel — Opens the mouse’s control panel (Mouse Properties dialog box). Auto-Panning — You can set this function in the Button Assignments menu. -
Page 16: Setting The Media Key
Setting the Media Key 1. Double-click on the Windows task bar to display the HotKey menu. 2. Click the Media tab and select List Supported Media Player or Eject/Insert CD- ROM, then click then Apply 3. To perform the selected function, press follow the on screen instructions. -
Page 17: Setting The Search Key
Setting the Search Key 1. Double-click on the Windows task bar to display the HotKey menu. 2. Click the Search tab to select the web site or function you want for the key. Search Then click then Apply 3. To perform the selected function, press keyboard. -
Page 18: Setting The Mail Key
Setting the Mail Key 1. Double-click on the Windows task bar to display the HotKey menu. 2. Click the Mail tab to select Microsoft Outlook Express, Microsoft Outlook, Program, Web Site, and Menu functions you want for the Mail . Click then Apply 3. -
Page 19: Setting The Calculator Key
Setting the Calculator Key 1. Double-click on the Windows task bar to display the HotKey menu. 2. Click on the Calculator tab and select Windows Calculator, Program, Web Site, Menu functions you want for the . Click Calculator 3. To perform the selected function, press keyboard. -
Page 20: Setting Options For Displaying The Hotkey Icon
HotKey Configuration, Hide Icon, About (HotKey version), Close HotKey, right click Setting the Wireless Function The wireless function lets you see the mouse’s and keyboard’s battery level and shows Caps Lock, Num Lock, and Scroll Lock icons in the task bar. - Page 21 2. Click the Wireless tab to select showing Caps Lock, Num Lock, and Scroll Lock icons in the task bar, then click Apply...
-
Page 22: Troubleshooting
Install fresh batteries or reinstall the batteries facing the correct directions. Make sure the green connector goes to the mouse port and the purple connector goes to the keyboard port. (see “Connecting the Receiver to Your Computer” on Page 7) -
Page 23: Fcc Declaration Of Conformity
• Reorient or relocate the receiving antenna. 27MHz Wireless Key- board and mouse 26-750 RadioShack... -
Page 24: Care
RadioShack may cause interference and void the user’s authority to operate the equipment. CARE Keep the keyboard and mouse dry; if they get wet, wipe them dry immediately. Use and store the keyboard and mouse only in normal temperature environments. Handle the keyboard and mouse carefully;...
