- Page 1 Monocular Pulsar 3x20 B Manual...
-
Page 2: Table Of Contents
Content Description Specifications Package Contents Monocular Installation Legal Compliances and Disclaimers... -
Page 3: Description

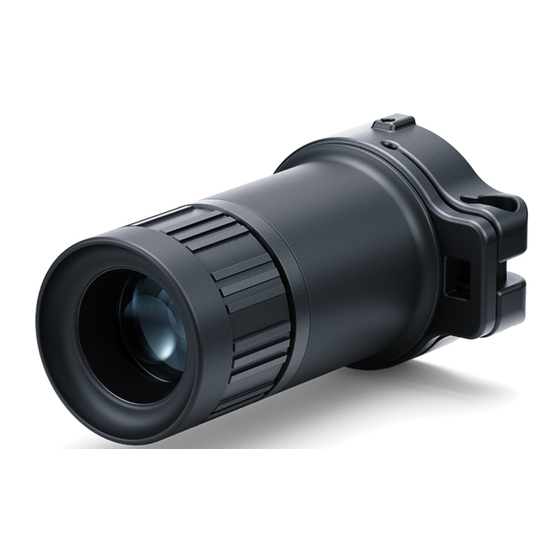

Description Themonocular Pulsar 3x20 B converts Krypton and Proton devices into handheld thermal imaging monoculars with 3x magnification. The monocular is installed on the thermal imaging module without the use of an additional adapter. -
Page 4: Specifications
Specifications 3x20 B Model 3x20 B 71014 Magnification, х Lens diameter, mm/inch 20/0.79 Field-of-view, deg Eye Relief, mm/inch 20/0.79 Eyepiece Focusing Range, ±5 Diopter Dimensions, mm/inch 95x45x51 / 3.74x1.77x2 Weight, kg/oz 0.1 / 3.53... -
Page 6: Package Contents
Package Contents Monocular Pulsar 3x20 B Carrying Case Neck Strap Quick Start Guide Warranty Card Lens-Cleaning Cloth Allen Key... -
Page 7: Monocular Installation
Monocular Installation 1. Align the protrusions on the monocular(1) on the side of its lens with the grooves of the mount (2) of the thermal imaging module. 2. Turn the monocular clockwise to secure it on the thermal imaging module. The recommended position of the clamping screw (3) is at the bottom (see Figure). - Page 8 4. Adjust the eyepiece diopter ring (4) until the symbols in the display are sharp. 5.Loosen the screw(3) with an Allen key S3. 6. Align the display to the centre of the image in the monocular by tilting the thermal imaging module in the required directions. 7.
-
Page 9: Legal Compliances And Disclaimers
The manufacturer reserves the right at any time, without mandatory notice, to make changes to the package contents, design and characteristics that do not impair the quality of the product. For technical support please contact support@pulsar-vision.com. Answers to frequently asked questions about the devices can also be found in the...
