RAB Lighting CONTROL/W/AUX/5SP/LCB Quick Start Manual

5-pin plug-in controller

Hide thumbs

Welcome

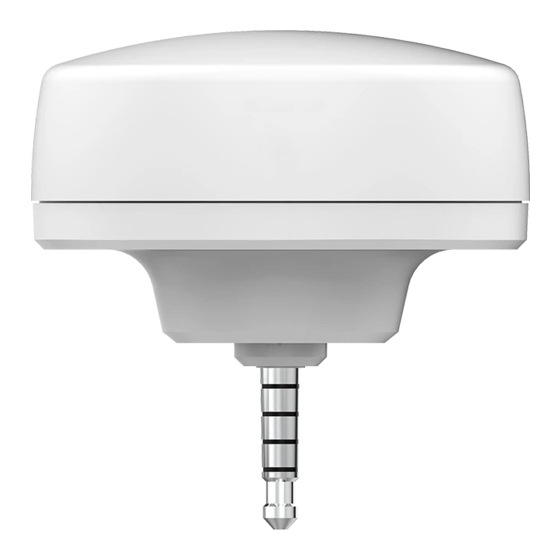

5-Pin Plug-in Controller

CONTROL/W/AUX/5SP/LCB

WE'RE HERE TO HELP:

1(844) LIGHTCLOUD

1(844) 544-4825

Hello

Lightcloud Blue 5-Pin Plug-in

Controller can be attached to any

compatible lighting device to

connect to the Lightcloud Blue

system. Adjust dim level, color

temperature, sensor settings and

create schedules or scenes with

the Lightcloud Blue mobile App.

Table of Contents

Need help?

Do you have a question about the CONTROL/W/AUX/5SP/LCB and is the answer not in the manual?

Questions and answers

Summary of Contents for RAB Lighting CONTROL/W/AUX/5SP/LCB

Page 1 Welcome 5-Pin Plug-in Controller CONTROL/W/AUX/5SP/LCB WE’RE HERE TO HELP: 1(844) LIGHTCLOUD 1(844) 544-4825 Hello Lightcloud Blue 5-Pin Plug-in Controller can be attached to any compatible lighting device to connect to the Lightcloud Blue system. Adjust dim level, color temperature, sensor settings and create schedules or scenes with the Lightcloud Blue mobile App.
Page 2 Speciﬁcations PART NUMBER CONTROL/W/AUX/5SP/LCB PRODUCT DIMENSIONS 1.69”D x 1.69”L x 1.69”H ENVIRONMENT Indoor WIRELESS RANGE 60 ft.
Page 3 Setup & Installation Install Controller Lightcloud Blue 5-Pin Plug-in Controller is only compatible with select sensor-ready lamps. Visit www.rablighting.com to see the full compatibility list. Remove plastic plug from lamp, then insert Lightcloud Blue 5-Pin Plug-in Controller into sensor port. Lamp Plastic Plug Install the lamp with the connected...
Page 4 Setup & Installation (Cont’d) Turn power on Enable Device Pairing Mode For the rst time use, the Lightcloud Blue 5-Pin Plug-in Controller is ready to be paired as soon as it is powered on. If your Lightcloud Blue 5-Pin Plug-in Controller is already paired, you can reset it by using the Rapid Reset Tool Method.
Page 5 Controlling your Lightcloud Blue Device Con rm your lamp with 5-Pin Plug-in controller is powered on. Download the Lightcloud Blue app from the Apple® App Store or Google® Play store. Launch the App to create a new account or login to an existing one.
Page 6 FCC Information: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
Page 7 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. CAUTION: Changes or modi cations to this equipment not expressly approved by RAB Lighting may void the user’s authority to operate this equipment.
Page 8 All con guration of Lightcloud Blue products may be performed using the Lightcloud Blue mobile app. Learn more at www.rablighting.com 1(844) LIGHTCLOUD 1(844) 544-4825 ©2022 RAB LIGHTING Inc. Custom manufactured in China Pat. rablighting.com/ip WE’RE HERE TO HELP: 1(844) LIGHTCLOUD 1(844) 544-4825...
