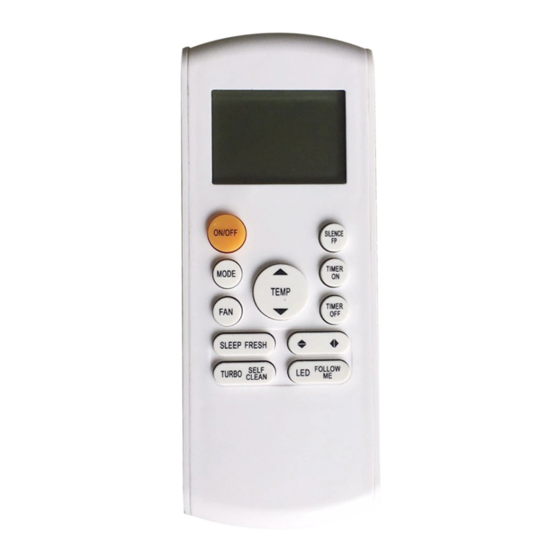

KOREL RG57A7/BGEF Manual

Air conditioner remote controller

Hide thumbs

Available languages

Quick Links

KLIMA UREĐAJ

UPUTE UZ DALJINSKI UPRAVLJAČ

Hvala što ste kupili naš klima uređaj. Molimo Vas da

pažljivo pročitate upute prije uporabe klima uređaja.

CR148-RG57B1(A7)

16117000A30353 20171220

RoHS

Table of Contents

Chapters

Need help?

Do you have a question about the RG57A7/BGEF and is the answer not in the manual?

Questions and answers

Summary of Contents for KOREL RG57A7/BGEF

Page 1 KLIMA UREĐAJ UPUTE UZ DALJINSKI UPRAVLJAČ Hvala što ste kupili naš klima uređaj. Molimo Vas da pažljivo pročitate upute prije uporabe klima uređaja. CR148-RG57B1(A7) 16117000A30353 20171220 RoHS...
Page 2 EKOLOŠKA NAPOMENA Prilikom uporabe ovog klima ureÿaja u europskim zemljama treba se pridržavati sljedeüih informacija: ODLAGANJE: Ne odlažite ovaj uređaj kako nesortirani kućni otpad. Zasebno odlaganje takovog otpada radi posebnog rukovanja je nužno. Zabranjeno je odlagati ovaj uređaj u kućanski otpad. Za odlaganje postoji nekoliko mogućnosti: A) Općina je osnovala sustave za sakupljanje, na kojima se elektronički otpad može odložiti bez naplate korisniku.
Page 3: Table Of Contents
SADRŽAJ ..........Rukovanje daljinskim upravljačem ..........Specifikacija daljinskog upravljača ................Funkcije tipki ..............Indikatori na zaslonu ................Upotreba tipki ................Automatski rad ..........Hlađenje/grijanje/rad ventilatora ................Odvlaživanje ............Podešavanje smjera puhanja ................ Funkcija Timer...
Page 4: Rukovanje Daljinskim Upravljačem
Rukovanje daljinskim upravljačem Položaj daljinskog upravljača Upotrebljavajte daljinski upravljač unutar razdaljine do 8 m od aparata Usmjerite ga prema prijemniku. Prijem je potvrđen zvukom ''beep''. Držite daljinski upravljač gdje njegov signal može dospjeti do aparata. Kada izaberete timer funkciju, daljinski upravljač automatski upućuje signal unutarnjoj jedinici u određeno vrijeme.
Page 5: Specifikacija Daljinskog Upravljača
Specifikacija daljinskog upravljača RG57A7/BGEF,RG57B1/BGE Model Radni napon 3.0V(suhe baterije R03/LR03 Domet signala Radna okolina Funkcije upravljača 1. Način rada: AUTO, HLAĐENJE, SUŠENJE, GRIJANJE i ventiliranjeFAN. 2. Podešavanje funkcije TIMER u rasponu 24 sata. 3. Raspon postavki unutarnje temperature : 17 C~30 C.
Page 6 NAPOMENA: RG52C/BG(C)E, RG52C/(C)E Tipke se mogu razlikovati ovisno o modelu. Sve opisane funkcije su u skladu s unutarnjom jedinicom. Ako unutarnja jedinica nema neku funkciju, a pritisnemo tipku za tu funkciju na daljinskom upravljaču, neće se ništa dogoditi. ON/OFF SHORT ON/OFF SHORT MODE...
Page 7: Funkcije Tipki
Deaktivira/Aktivira Display na unutarnjoj jedinici. Kad pritisnemo tipku display je prazan, jedinici. Kad pritisnemo tipku display je prazan, kad pritisnemo ponovo , display se osvijetli. kad pritisnemo ponovo , display se osvijetli. SELF CLEAN (RG57A7/BGEF) SELF CLEAN (RG57A7/BGEF) Deaktivira/aktivira samočišćenje. Deaktivira/aktivira samočišćenje.
Page 8 Svakim pritiskom klapna se pomiče za 6 SWING tipka Upotrebljava se da bi zaustavila ili započela auto swing funkciju vodoravne klapne. FOLLOW ME tipka (RG57A7/BGEF) PAktivira funkciju PRati me pri kojoj se na daljinskom prikazuje temperatura lokacije na kojoj je daljinski.
Page 9: Automatski Rad
      Prikazuje trenutni nain rada ukljuu ju i automatski rad, hlaenje, sušenje , grijanje ) (Ne Primjenjuje se na modele koji imaju samo hlaenje), v e n t i l a t o r I o p e t a u t o m a t s k i n a ...
Page 10         Ukljuite ureaj u strujnu utinicu.  OPERATION indikator na displeju unutarnje  jedinice poinje svijetliti.  1. Pritisnite tipku MODE da bi izabrali Auto.  2. Pritisnite UP/DOWN tipku da bi postavili ...
Page 11   Ukljuite ureaj u strujnu utinicu. Ukljuite ureaj u strujnu utinicu. OPERATION indikator na displeju unutarnje OPERATION indikator na displeju unutarnje jedinice poinje svijetliti. jedinice poinje svijetliti. 1. Pritisnite tipku MODE da bi izabrali nain 1. Pritisnite tipku MODE da bi izabrali nain DRY .
Page 12  Pritisnite tipku TIMER ON za postavljanje vremena ukljuivanja , te tipku TIMER OFF za postavljanje vremena iskljuivanja ureaja. Postavljanje vremena ukljuivanja ureaja 1. Pritisnite tipku TIMER ON.Na daljinskom upravljau se prikazuje TIMER ON, te se na zaslonu prikazuje zadnje postavljeno vrijeme ukljuivanja I simbol "H"...
Page 13: Funkcija Timer
 Po odabiru rada timera daljinski upravlja odreeno vrijeme automatski šalje signal timera unutarnjoj jedinici. Stoga držite daljinski upravlja na mjestu s kojeg može neometano slati signal unutarnjoj jedinici. Vrijeme rada postavljeno putem daljinskog upravljaa je ogranieno na slijedee postavke: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13, 14, 15,16,17, 18, 19, 20, 21, 22, 23 and 24.
Page 14 TIMER OFF (Automatsko iskljuivanje) Funkcija TIMER OFF je korisna kada želite da se klima ureaj automatski iskljui nakon vašeg odlaska u krevet. Klima ureaj e u postavljeno vrijeme automatski prestati s radom. Stop Primjer: Za prekid rada klima ureaja za 10 sati. 1.
Page 15 TIMER ON TIMER ON TIMER OFF TIMER OFF (Isklju  Po  etak- prestanak rada) ivanje (Iskljuivanje Poetak- prestanak rada) Ova funkcija je korisna kada želite da se Ova funkcija je korisna kada želite da se klima ureaj uklju  i prije nego se probudite I klima ureaj ukljui prije nego se probudite I isklju ...
Page 16 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.
Page 17 AIR CONDITIONER AIR CONDITIONER REMOTE CONTROLLER ILLUSTRATION REMOTE CONTROLLER ILLUSTRATION Thank you very much for purchasing our air conditioner. Thank you very much for purchasing our air conditioner. Please read this owner's manual carefully before using Please read this owner's manual carefully before using your air conditioner.
Page 18 CONTENTS Remote controller Specifications........... Operation buttons ................Indicators on LCD ................How to use the buttons ..............Auto operation................. Cooling/Heating/Fan operation............Dehumidifying operation ............... Timer operation................Handling the remote controller ............
Page 19: Remote Controller Specifications
Remote Controller Specifications Remote Controller Specifications Model Model RG57A7/BGEF,RG57B1/BGE RG57A7/BGEF,RG57B1/BGE 3.0V(Dry batteries R03/LR03×2) 3.0V(Dry batteries R03/LR03×2) Rated Voltage Rated Voltage Signal Receiving Signal Receiving Range Range Environment Environment -5 C~60 C -5 C~60 C ON/OFF ON/OFF ON/OFF ON/OFF TIMER TIMER...
Page 20: Operation Buttons
RG57A7/BGEF ature at cooling or heating operation in the shortest time(if the indoor unit does not support this function, there is no corresponding operation happened when pressing this button.) SELF CLEAN Button (applicable to RG57A7/BGEF) Active/Disable Self Clean function...
Page 21 Operation of buttons Operation of buttons UP Button( UP Button( Push this button to increase the indoor Push this button to increase the indoor temperature setting in 1 C increments to 30 C. temperature setting in 1 C increments to 30 C. DOWN Button( DOWN Button( Push this button to decrease the indoor...
Page 22 Used to change the louver movement and set the desired up/down air flow direction. The louver changes 6 in angle for each press. FOLLOW ME Button (applicable to RG57A7/BGEF) Push this button to initiate the Follow Me ON/OFF feature, the remote display is actual temperature at its location.
Page 23: Indicators On Lcd
Indicators on LCD Indicators on LCD Information are displayed when Information are displayed when Mode display Mode display the remote controller is powered the remote controller is powered AUTO AUTO COOL COOL HEAT HEAT Displayed when data transmitted. Displayed when data transmitted. Displayed when remote controller is ON.
Page 24: How To Use The Buttons
How to use the buttons Auto operation Ensure the unit is plugged in and power is available. 1. Press the MODE button to select Auto. 2. Press the UP/DOWN button to set the desired temperature. The temperature can be set within a range of 17 C~ 30 C in 1 C increments.
Page 25: Dehumidifying Operation
How to use the buttons How to use the buttons Dehumidifying operation Dehumidifying operation Ensure the unit is plugged in and power is Ensure the unit is plugged in and power is available. available. 1. Press the MODE button to select DRY mode. 1.
Page 26: Timer Operation
Timer operation Press the TIMER ON button can set the auto-on time of the unit. Press the TIMER OFF button can set the auto-off time of the unit. To set the Auto-on time. 1. Press the TIMER ON button. The remote controller shows TIMER ON, the last Auto-on setting time and the signal "H"...
Page 27 CAUTION CAUTION The effective operation time set by the remote controller for the timer function The effective operation time set by the remote controller for the timer function is limited to the following settings: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, is limited to the following settings: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13, 14, 15,16,17, 18, 19, 20, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13, 14, 15,16,17, 18, 19, 20,...
Page 28 TIMER OFF (Auto-off Operation) The TIMER OFF feature is useful when you want the unit to turn off automatically after you go to bed. The air conditioner will stop automatically at the set time. Example: Stop To stop the air conditioner in 10 hours. 1.
Page 29 TIMER ON → TIMER OFF TIMER ON → TIMER OFF (Off → Start → Stop operation) (Off → Start → Stop operation) This feature is useful when you want to start This feature is useful when you want to start the air conditioner before you wake up and the air conditioner before you wake up and stop it after you leave the house.
Page 30: Handling The Remote Controller
Handling the remote controller Location of the remote controller. Use the remote controller within a distance of 8 meters from the appliance, pointing it towards the receiver. Reception is confirmed by a beep. CAUTIONS The air conditioner will not operate if curtains, doors or other materials block the signals from the remote controller to the indoor unit.
Page 31 Replacing batteries Replacing batteries The following cases signify exhausted batteries. The following cases signify exhausted batteries. Replace old batteries with new ones. Replace old batteries with new ones. Receiving beep is not emitted when a signal Receiving beep is not emitted when a signal is transmitted.
