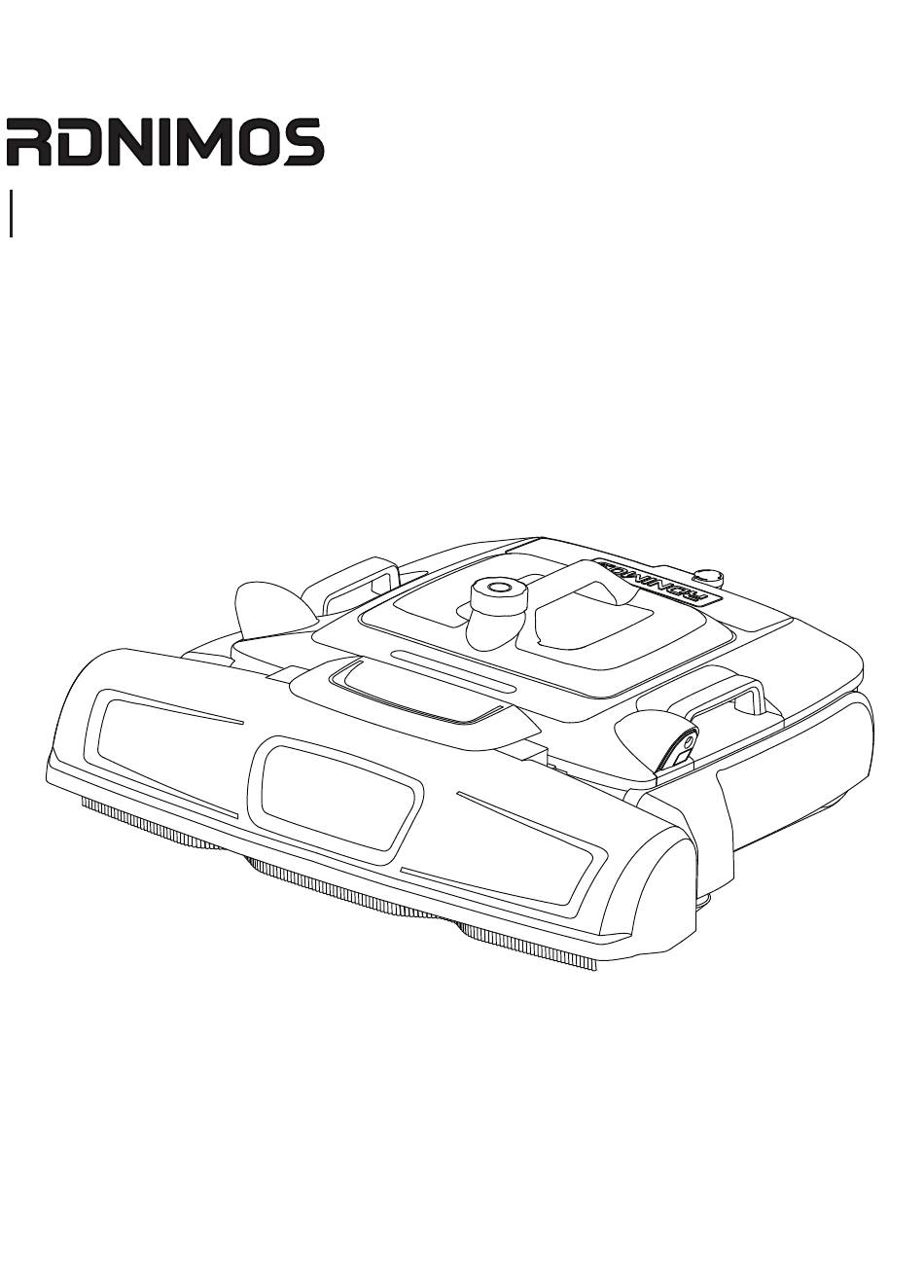

瑞 智 辉
USER GUIDE
- 光伏清洁机器人说明书
- ラディアント製 パネル掃除ロボット取扱説明書
- Instructions for photovoltaic cleaning robot
苏州瑞得恩光能科技有限公司
江苏省苏州市吴中区胥口镇子胥路 636 号
蘇州瑞得恩光能科技有限公司
中華人民共和国江蘇省蘇州市呉中区胥口鎮子胥路 636 号
Suzhou Radiant Photovoltaic Technology Co., Ltd
No.636, Zixu Road, Xukou Town, Suzhou, Jiangsu, China
Advertisement
Summary of Contents for Suzhou Radiant Photovoltaic Technology RDNIMOS
- Page 1 瑞 智 辉 USER GUIDE - 光伏清洁机器人说明书 - ラディアント製 パネル掃除ロボット取扱説明書 - Instructions for photovoltaic cleaning robot 苏州瑞得恩光能科技有限公司 江苏省苏州市吴中区胥口镇子胥路 636 号 蘇州瑞得恩光能科技有限公司 中華人民共和国江蘇省蘇州市呉中区胥口鎮子胥路 636 号 Suzhou Radiant Photovoltaic Technology Co., Ltd No.636, Zixu Road, Xukou Town, Suzhou, Jiangsu, China...
- Page 2 English Contents Important safety notes List of product accessories and parameters of the machine P45-47 Product assembly and usage scenarios P48-58 Product cleaning and maintenance P59-61 Hazardous substance information and precautions P62-63...
- Page 3 WARNINGS： These warnings apply to this product, all tools and accessories, and any chargers or power adapters you may need. To reduce the risk of fire, electric shock and injury： - This product cannot be used by people with physical, sensory or intellectual disabilities, or people without relevant experience (including children), unless there is a guardian's care or guidance to ensure that they can use this product safely.
- Page 4 List of product accessories and parameters of the machine - Product list...
- Page 5 SELECT START MODE 1. Nose lamp 2. Nose cover 3. Cameras 4. Status display 5. Portable water plate light tank 6. fixed handle 7. Battery cover 8. Power switch 9. Emergency 10. Left and right stop switch startup switch 11. Horizontal and 12.
- Page 6 List of product accessories and parameters of the machine - Parameters of the machine Product name Photovoltaic cleaning robot Ambient temperature 5 ～ 35℃ Operating voltage range DC: 25V ～ 29.4V Power of the machine 350W Cleaning efficiency 300m²/h Moving speed 0.15 米...
- Page 7 Product assembly and usage scenarios - Product assembly Be sure to remove the battery before assembly or removal. This product consists of 4 parts: Body, battery pack, portable water tank and cleaning nose The assembly of body and cleaning nose. 1.
- Page 8 Quick installation of cleaning nose Do not install and dissemble the nose frequently. The installation of the nose as described above. The step to remove the cleaning nose： 1. Open the cleaning nose compartment cover and pull out the water pipe from the quick connector.
- Page 9 Assemble the water tank into the machine body After the water tank is filled with water, tighten the water tank cover. Put the front end (one end of the water tank cover) into the tank cabin of the machine body, and then press the front end gently, so as to make the male and female connectors of the water tank outlet are reliably connected.
- Page 10 Light display description Description: As shown below, the light has 8 states 1. The green light flashes: the machine operates normally 2. The yellow light flashes: the machine is checking itself before moving 3. The red light flashes: the machine alarms due to fault 4.
- Page 11 Battery charger 1. When the battery pack is fully charged, the five indicator lights should be all on, and the indicator lights of the discharged battery will be all off. 2. When you press the light button on the top of the battery pack, if there is only one light left, it means that the battery pack has low power.
- Page 12 Startup and shutdown 1. Place the machine on the photovoltaic panel and observe the type of module array; Determine the left and right starting modes or array horizontal and vertical arrangement. 2. Select a mode in the mode switch. 3. Check whether the emergency stop switch is open, and try to turn the emergency stop switch to the right.
- Page 13 The remote control Description: Key functions are shown in the following chart: Start Select Direction keys Function keys R2 R1 SELECT START MODE SELECT START MODE Mode key Left rocker Right rocker Key Name Function Remarks Move the robot Direction keys forward/backward/left/right It can only be controlled after the Select key...
- Page 14 Follow the steps below to turn the remote control on/off 1. Power on: Press MODE and press START. 2. Remote control indicator: Steady green indicates that the remote control works normally. 3. Press the left rocker to connect the remote control to the machine. 4.
- Page 15 Product assembly and usage scenarios - Usage scenarios This machine is wet sweep mode with water. Horizontal cleaning path： Vertical cleaning path： Horizontal and vertical cleaning steps: (the arrangement in the figure is only for display, and the actual cleaning is not limited to quantity of the rows or columns) 1.
- Page 16 5. Turn the emergency stop button clockwise to release it. 6. Hold down the power button for 3 seconds, and the machine will automatically clean after it enters the 30S self-check time. 7. The cleaning path is shown in the figure. Considering different component lengths, vertical cleaning will adaptively increase the cleaning path.
- Page 17 machine to the position of continuous cleaning. 4. Disconnect the remote control, and the machine will continue to work according to the track. Breakpoint cleaning step when the battery needs to be replaced: 1. When the water tank indicates that the water volume is too low, the machine status light will flash alternately in yellow and green, and it stops operation.
- Page 18 Product cleaning and maintenance - Product cleaning Cleaning and maintenance of the brush Removal and installation of roller brush： When the roller brush has been used for more than 1000 hours, it is recommended to replace the it. You can replace it yourself or contact the after-sales service. Quick release button of the brush...
- Page 19 Clean the nose nozzle During the cleaning process, it is found that the cleaning effect is poor, please check whether the nose nozzle is blocked. If it is blocked, use a flat-head screwdriver to remove it, and then clean the nozzle and nozzle core. Nozzle core can The nozzle be pulled out...
- Page 20 Product cleaning and maintenance - Common faults and solutions The Faults Probable Causes Solutions 1. Low battery Charge in time The machine does 2. Power switch is not pressed Press and hold the power switch not work Stop using and contract after-sale 3.
- Page 21 - Description of hazardous substance elements of the product Hazardous Substance Component name hexavalent Polybrominated Polybrominated Lead Mercury Cadmium chromium biphenyls diphenyl ether Plastics Motor Circuit board and component Adapter Metal parts Battery Others This form is prepared in accordance with SJ/T11364. ○：Indicates that the content of the hazardous substance in the component is below the limit specified in 201165/EU (RoHS) and EU Directive of its annex I amendment 2015/863/, and test reference EN 62321-1:2013, EN 62321-22014, EN 2321-3-1:2014,...
- Page 22 Do not disassemble the machine. If the nameplate is artificially damaged, the machine will not be guaranteed. If the machine is defective, contact the manufacturer. - Manufacturer：Suzhou Radiant Photovoltaic Technology Co., Ltd - Address：No.636, Zixu Road, Xukou Town, Suzhou, Jiangsu, China - After-sale service line：86-512-66572916 Environmental protection is only restricted to EU countries.
- Page 23 Service Content: 口 Return of the goods 口 exchange goods 口 maintenance Reason for return or exchange or maintenance (Failure description): Maintenance return address: No.636, Zixu Road, Xukou Town, Suzhou, Jiangsu, China The consignee: Customer Service Department TEL: 86-512-66572916 Suzhou Radiant Photovoltaic Technology Co., Ltd...
