Summary of Contents for LLVISION G35A-00

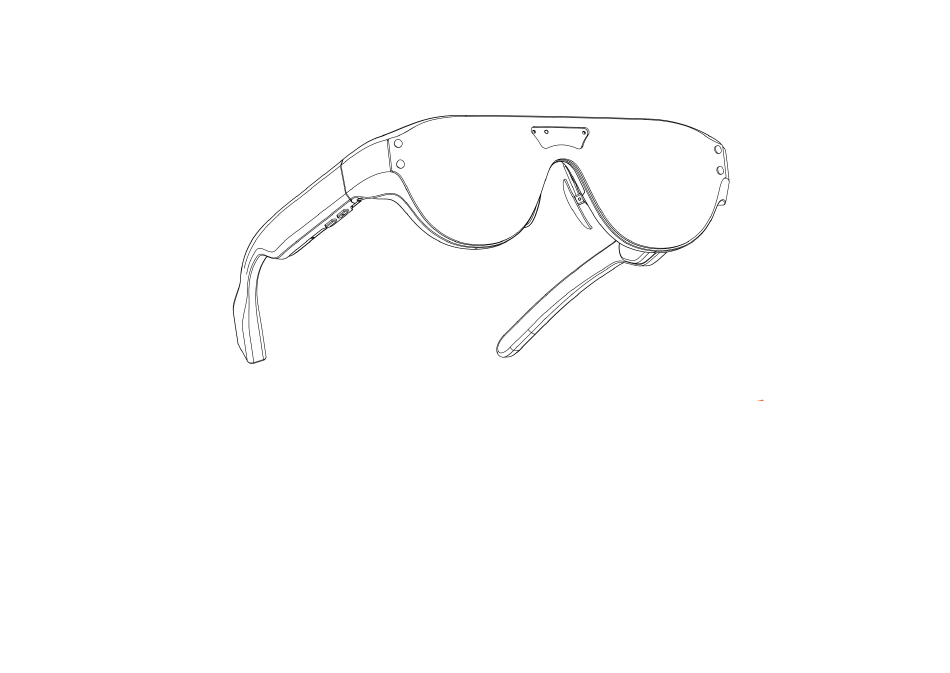

- Page 1 Leion Hey Augmented Reality Glasses Instruction Guide...
-
Page 2: Product Overview
Product Overview High-performance radio microphone Power key Function key Ambient light sensor LED indicator Function illustration of the front of the glasses Array optical waveguide display lens Prescription lenses Adjustable nose pads Adjustment spacer Battery Type C charging port High-strength elastic frame Function illustration of the back of the glasses... -
Page 3: Installation Instructions
Installation Instructions Without any spacers installed Remove the cover lens Spacer installed Install the fitted prescription lense Adjust the installation position of the spacer Installation of prescription lenses Installation of Adjustment Spacers (suitable for vision needs such as myopia/hyperopia/astigmatism) (suitable for different face sizes such as narrow/wide faces) 1. -
Page 4: Key Function Description
Key Function Description Long press for 6 seconds…………Power on Power key Long press for 3 seconds…………Shutdown Short press…………….. Light up/off the screen Long press………………Mode switch Function key Short press……………..Enter/exit the application Power key Function key Combination Power + function …… Call out Restore Factory Setting LED indicator long press... -
Page 5: Product Parameters
Product Parameters Model: G35A-00 Name: Leion Hey AR Glasses Color： Sage Gray Processor： Snapdragon Wear 4100 Memory： 1GB RAM+8GB ROM ePOP 51.2mm Wireless： BT 4.2 /WLAN 2.4GHz OS： Android 11 Go Battery： 3.85V, 400mAh 162.5mm Outin spec： 5V/2A Weight： 79g (Bare only, +/-2g) - Page 6 Usage Process 1. Check the following supporting items contained in the package: Glasses container Instruction set Accessories box - Subtitle glasses - Instruction guide - Type-C charging cable - Sunglasses lenses - Safety instruction - Sizes of spacers XS/S/M *10pcs - Prescription lenses - Warranty information *No power adapter is provided in the product package...
-
Page 7: Software Download
50% to avoid operation failure due to insufficient charge. Contact Us Official website customer service: Go to https://www.llvision.com/ Select “Online Customer Service” Scan the QR code Customer service hotline: Hotline at 400-0525-102 to follow official account... - Page 8 BRIGHTEN THE SILENT WORLD LLVISION.COM Model：G35A-00 MADE IN CHINA Copyright: Beijing LLVision Technology Co., Ltd. 2022 All rights reserved.
-
Page 9: Safety Instructions
Leion Hey Augmented Reality Glasses Safety Instructions... - Page 10 Instructions for Use Before using and operating the device, please read and observe the following precautions to ensure optimal performance and avoid dangerous or illegal situations. - This device is recommended for users over 14 years of age, but not for children, based on ergonomic dimensions. Please keep the device and its accessories out of the reach of children as they may contain small parts.
- Page 11 Instructions for Use Network Precautions: - The online function and the transfer performance of this device are highly dependent on the network environment. To ensure the effect of the device, please ensure the network connection and stability of the device. - Some networks or mobile phone hotspots turn on the 5G frequency band by default.
-
Page 12: Safety Instructions For Battery
Safety Instructions for Battery Battery Precautions: - If the device is stored for a long time, ensure that the power is sufficient and ensure that the battery is charged once every 3 months to avoid abnormal use of the battery due to over-discharge. - This device contains lithium batteries, so please use a standard charger with safety certification for charging. - Page 13 Environmental Protection Notice This device has an “environmental protection service life” of 10 years. The environmental protection service life of replaceable parts such as batteries may be different from that of the device. Environmental protection life refers to the safe life of the device without leakage of harmful substances under the normal use conditions described in this instruction.
-
Page 14: Wearing Instructions
Wearing Instructions - In view of the different head circumferences, nasal bridge positions and myopia of each user, these three parts need to be adjusted and adapted according to their own conditions to ensure the best viewing effect in the use of glasses. - Page 15 Wearing Instructions - When wearing glasses, hold the temples with both hands. If you feel that the rear temples are narrow, you can hold the end of the temples and expand the opening angle appropriately before wearing them. Try not to expand the front part of the temples to force the glasses on.
- Page 16 BRIGHTEN THE SILENT WORLD LLVISION.COM Model：G35A-00 MADE IN CHINA Copyright: Beijing LLVision Technology Co., Ltd. 2022 All rights reserved.
-
Page 17: Warranty Information
Leion Hey Augmented Reality Glasses Warranty Information... - Page 18 Warranty Information This warranty service only applies to the first purchaser of the product. Within 7 days from the date of purchase, we support a no-questions-asked return or exchange; Within 30 days from the date of purchase, a replacement can be supported due to quality problems of the device. The warranty period for the glasses is 12 months, and that of glasses-related accessories (refractive frames, sunglasses, glasses cases and data cables) is 30 days.
- Page 19 Customer Sheet Name： Contact Number: Address： Purchase Channel: Product No.: Date of Purchase: Invoice No.: Important Notice: 1. Please keep this warranty card properly. 2. This warranty card is only applicable to the warranty service of the products listed above. 3.
- Page 20 BRIGHTEN THE SILENT WORLD LLVISION.COM Model：G35A-00 MADE IN CHINA Copyright: Beijing LLVision Technology Co., Ltd. 2022 All rights reserved.
-
Page 21: Product Certification
5V 2A, FOV23，LOEx2，MICx2，BT/WLAN 2.4GHz Specifications 执行标准 GB 4943.1-2011， GB/T 9254.1-2021 ，GB 17625.1-2012 Executive Standards 检查项目与结论 合格 Inspection and Result Pass 检验员 检01 Inspector Jian 01 出厂日期 见外包装条码 Date of Manufacture Refer to Package Barcode 制造商 北京亮亮视野科技有限公司 Manufacturer Beijing LLVision Technology Co, Ltd... - Page 22 FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2.
- Page 23 Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance 10mm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided.
