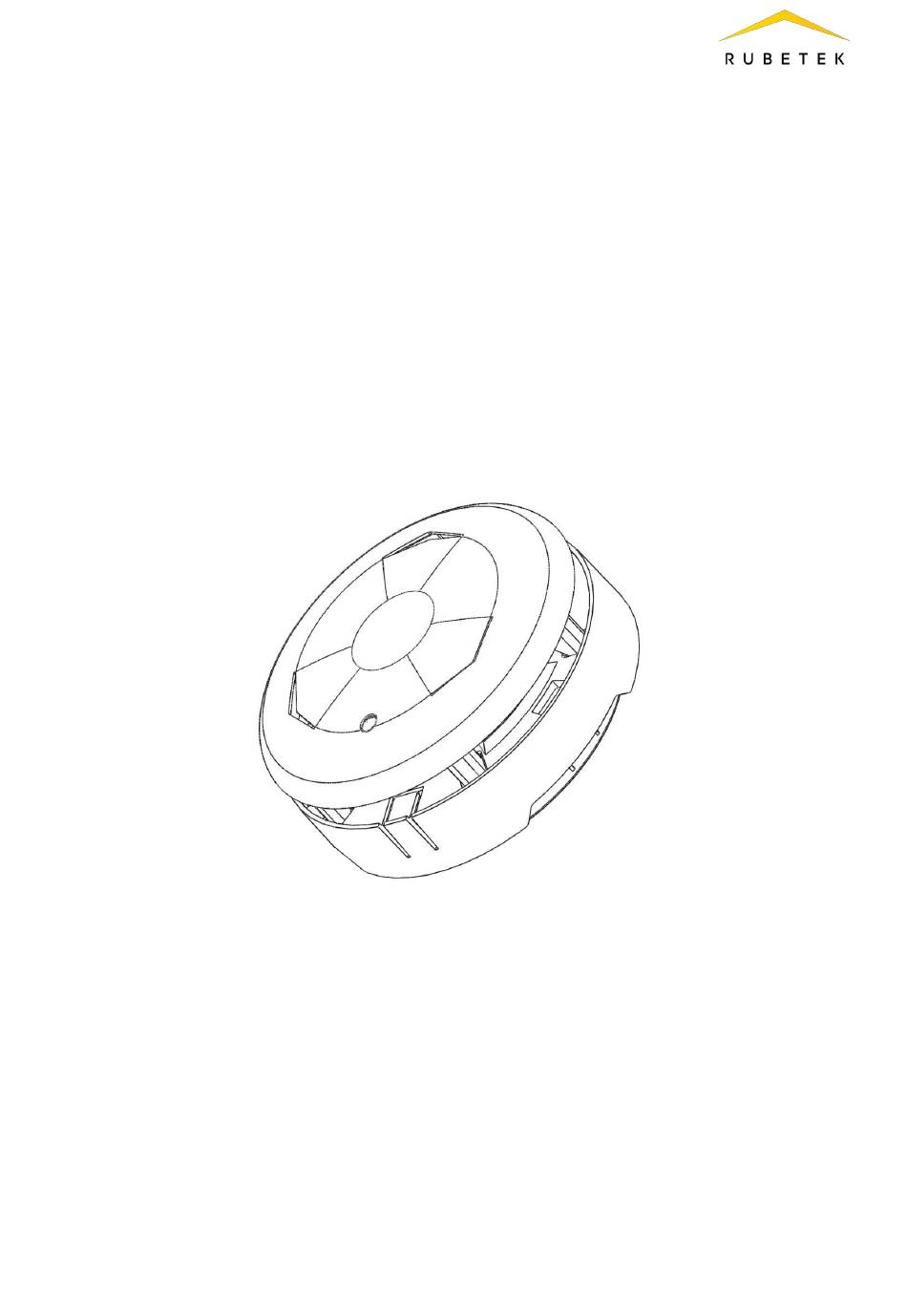

- Page 1 MANUAL ADDRESSABLE OPTICAL SMOKE DETECTOR SD-1 «RUBETEK» Complies with: EN 54-7 Hardware version: IP212-102M rev.4 Software version: 2022-11-1 Document version: 2022-11-1...
-
Page 2: Table Of Contents
Table of contents Introduction ............................3 Description and operation ......................4 1.1. Function ............................4 1.2. Technical data ..........................4 1.3. Apprearance of the detector ......................5 1.4. Internal design of the detector ....................5 1.5. Complete set ..........................6 Intended use .......................... -
Page 3: Introduction
Introduction This User Manual is intended to describe the operating principle, configuration, installation and operation of the addressable optical smoke detector SD-1 «RUBETEK» (hereinafter detector). You must read the instructions in the Manual before linking, configuring, operating or maintaining the detector. -
Page 4: Description And Operation
«RUBETEK» using power line communication. The detector operates as part of the automatic Rubetek fire alarm, controlled by an addressable fire alarm control panel CP-1 (hereinafter CP). Functionality of the detector: •... -
Page 5: Apprearance Of The Detector
1.3. Apprearance of the detector 1 - Case cover 2 - LED indicator 3 - Smoke chamber 4 - «Test» button 5 - Device case 6 - Base Figure 1 - Appearance of the detector (side view) 1 - Detector case 2 - Detector contacts 3 - Base 4 - Terminals to connect to PLC... -
Page 6: Complete Set
Complete set Table 2 - Complete set of the detector Item Quantity, ea Remarks Addressable optical smoke detector SD-1 «RUBETEK» Installed on Detector base DB-1 «RUBETEK» detector Installed on Protective cover detector Mounting kit Datasheet Multiple package * Per shipment. - Page 7 - Open the case of the detector. To do this, turn the base of the detector counterclockwise, and with a little effort pull the base of the detector. - Attach the device base to the selected installation location and mark the mounting holes with a pencil.
-
Page 8: Detector Connection To Cp
- Install the detector on the base, aligning the projections of the case with the recesses on the base. - Rotate the detector clockwise. 2.4. Detector connection to CP The connection can be carried out by the «tree» or «ring» topology. When connected by the «tree»... - Page 9 Figure 6 - Connection diagram by the «ring» topology The detector operates under the CP control, all detector configurations are made through the device software. When connecting wired devices, it is necessary to take into account the maximum length of the PLC from the CP to the end device, which should not exceed 1200 meters.
- Page 10 Device configuration If you are making configurations for a previously paired and configured device, you must: - select item 3.DEVs and press OK - select submenu 1.Devices list. Press OK. - select submenu 2.Wired DEVs. Press OK. - select the desired slot. Press OK. If configurations are made during pairing, the configuration menu will be available immediately.
-
Page 11: Detector Led Indication
ATTENTION! Options marked with * are not configurable and are for informational purposes only. You may set reactions for detector in the Reaction configuration menu on the CP keyboard. After the required reactions are set press Ок to save changes. ATTENTION! List of required active reactions: ●... -
Page 12: Detector Deactivation
Table 3 – Detector LED indication Detector status Red indicator Standby mode (Normal) 1 pulse Repetition period 10 s. Alarm mode /Fire/Test 1 pulse Repetition period 1 s. 2.6. Detector deactivation When performing installation and maintenance work, it is recommended to switch the detector to the deactivation mode. -
Page 13: Сp Bypass Mode
- select 1.Wired DEVs. Press Ок. After that you can see the list of wired DEVs which are deactivated on the system with their slot number #Х. СP bypass mode 2.7. Bypass mode is used to simultaneously disable all DEVs linked to a given CP. At the same time, pairing and the devices configurations are preserved. -
Page 14: Maintenance
For «Fire 2» confirmation alarm signal activation configuration from only two or more detectors of one zone: - In the Main menu select 3.DEVs. Press Ок. - select 2.Device zones. Press Ок. - select the right Zone. Press Ок. - select Fire 2 by single det. Press Ок. - set time 0000. -
Page 15: Storage
● external inspection of the detector for traces of moisture and mechanical damage; ● checking the indication of the detector: «Standby mode» according to table 3; ● external examination of the smoke chamber of the detector for dust. If there is dust on the smoke chamber, blow the smoke chamber with a pneumatic cleaner with compressed air;... -
Page 16: Transportation
A copy of the payment document for the detector must be attached to the act. Certification 9.1. Addressable optical smoke detector SD-1 «RUBETEK» complies with the European standard EN 54-7 «Fire detection and fire alarm systems. Part 7: Smoke detectors - Point detectors using scattered light, transmitted light or ionization ». -
Page 17: Manufacturer
Manufacturer Name of the manufacturer’s organization: DEVICE FACTORY L.L.C 10.1. 10.2. Legal address: 302020, Ippodromny ln 9/24, Orel, Russian Federation 10.3. Phone: +7 (4862) 51-10-91 10.4. Email: info@zavodpriborov.com...
