Geekoto C1Pro User Manual

Flash transmitter
Hide thumbs

Advertisement

Quick Links

Download this manual
C1Pro Flash Transmitter
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the C1Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for Geekoto C1Pro

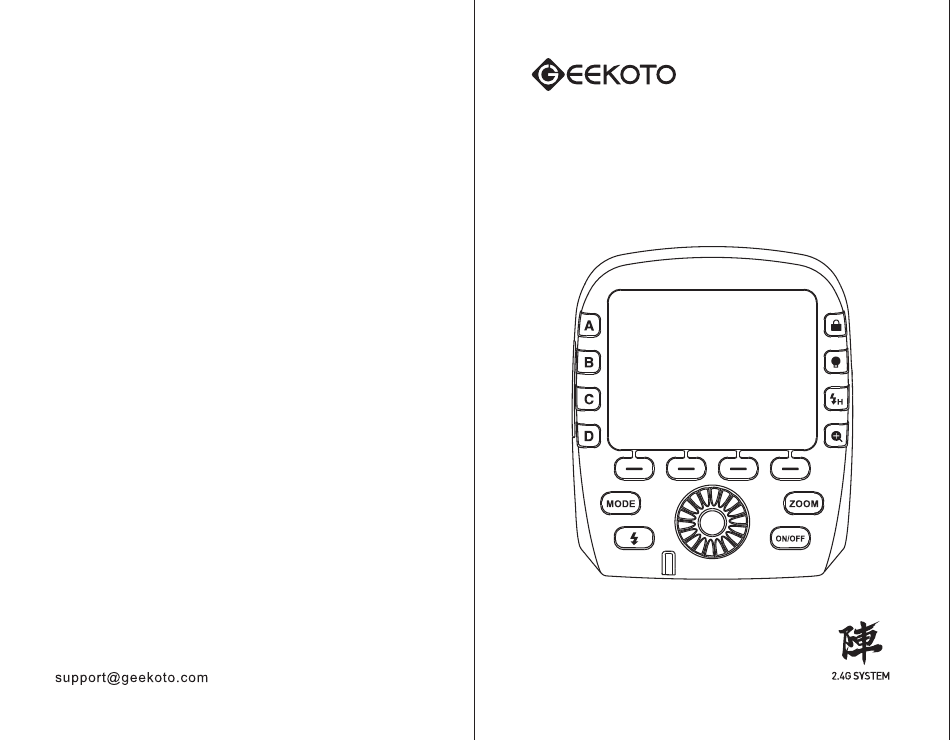

  • Page 1 C1Pro Flash Transmitter User's Manual...

  • Page 2: Table Of Contents

    Contents SAFETY INSTRUCTIONS FEATURES TERMINOLOGY DISPLAY BATTERY WIRELESS OPERATION SETTINGS...

  • Page 3: Safety Instructions

    2. Avoid dropping or shaking your C1Pro transmitter Lock, and AF assist light. to prevent damage. 4. With your C1Pro transmitter, up to 4 groups of flashes 3. Before extended periods of storage, power off can be set to distinct power output levels. When...

  • Page 4: Terminology

    TERMINOLOGY TERMINOLOGY 01 Group A selection button 09 Mode button 17 Function 4 button 02 Group B selection button 10 Test button 18 Switch dial 03 USB port cover 11 LED indicator 19 Zoom button 04 Group C selection button 12 Screen lock button 20 OK button 05 MicroUSB socket...

  • Page 5: Display

    DISPLAY DISPLAY Multi-group display 01 Bluetooth status 02 Current channel 03 Camera connection status 04 Group A selection Repeat flash (Multi) display 05 TTL 06 Group B selection 07 Manual mode indicator 08 Group C selection 09 Group D selection 10 High speed sync (HSS) 11 Modeling light master switch 12 Battery level...
  • Page 6 DISPLAY BATTERY ●Installing Battery Slide and open the battery compartment door on the side of your C1Pro transmitter. Install 2 AA batteries (not included) in the orientation of battery terminals as indicated In the battery compartment. Custom settings display Grouped zoom settings display...

  • Page 7: Battery

    Instructions made with Triopo R1 flash. Examine the battery level indicator on the screen’s upper right corner to check battery level. 1.1 Power off your camera. Mount your C1Pro transmitter securely onto your camera. Power ●Battery Level Indicator on the C1Pro transmitter and your camera.
  • Page 8 Instructions made with Triopo F1-400. Instruction made with generic aftermarket and camera- brand flashes. 2.1 Power off your camera. Mount your C1Pro 3.1 Power off your camera. Mount your C1Pro transmitter securely onto your camera. Power on the C1Pro transmitter and your camera.

  • Page 9: Settings

    SETTINGS ●Power On/Off ●Toggleg AF Assist Light Long press the power button for 3 seconds to power To toggle the AF assist light on your C1Pro transmitter, on your C1Pro transmitter. press <function 4 button> on your C1Pro transmitter Attention: to enter custom settings menu.
  • Page 10 SETTINGS SETTINGS ●Channel Setup ●Flash Grouping 1. Press <function button 1> to select the channel Select <A><B><C><D> to activate settings for the corresponding flash group. Then, press <MODE> to 2. Use the dial to select the appropriate channel number. activate the group by selecting a flash mode. press Press <function 1 button>...
  • Page 11 2. Repeat/MULTI mode: when no group is selected in multi-group mode, press <MODE> button to enable 1. Select group with the group selection buttons on your C1Pro transmitter. Then, press <MODE> to repeat flash (MULTI) mode. change the flash mode of the selected group among TTL mode, M mode, or OFF.
  • Page 12 ●Magnifier ●Manual Mode (M): Output Setting 1. when shooting in multi-flash mode, the magnifier 1. In multi-group settings screen of your C1Pro enables more detailed settings for individual flash transmitter, select the group you wish to modify with the group selection buttons. Then, using groups.
  • Page 13 2. In single group settings screen under manual (M) mode, simply use the dial to set your desired 1. Set your C1Pro transmitter to repeat/MULTI mode. output from 1/128 to 1/1 for the individual group. When no group is selected in multi-group settings To confirm setting, press the OK button in the screen, press <MODE>...
  • Page 14 SETTINGS SETTINGS 8. NOTE: The number of repetitions is limited by the combination of flash power output and frequency. Therefore, your set number of repetitions cannot exceed system limit. The flash repetitions are sent to receiving units as a sequence of independent flash cycles.
  • Page 15 ] icon is present on the screen. ●Zoom Settings 1. To alter zoom setting for a group of flashes, press <ZOOM> button. When zoom setting is active, C1Pro will display zoom settings for all groups. Using the group selection buttons, select the group whose zoom setting you wish to change.
  • Page 16 SETTINGS ●Factory Reset To perform a factory reset on your C1Pro transmitter, press <function 4 button/C. Fn button> to open the custom settings menu. Then, long press the OK button in the middle of the dial until screen shows “RESET”. Then, press <function 2 button> to factory...
