Summary of Contents for Routline AS6

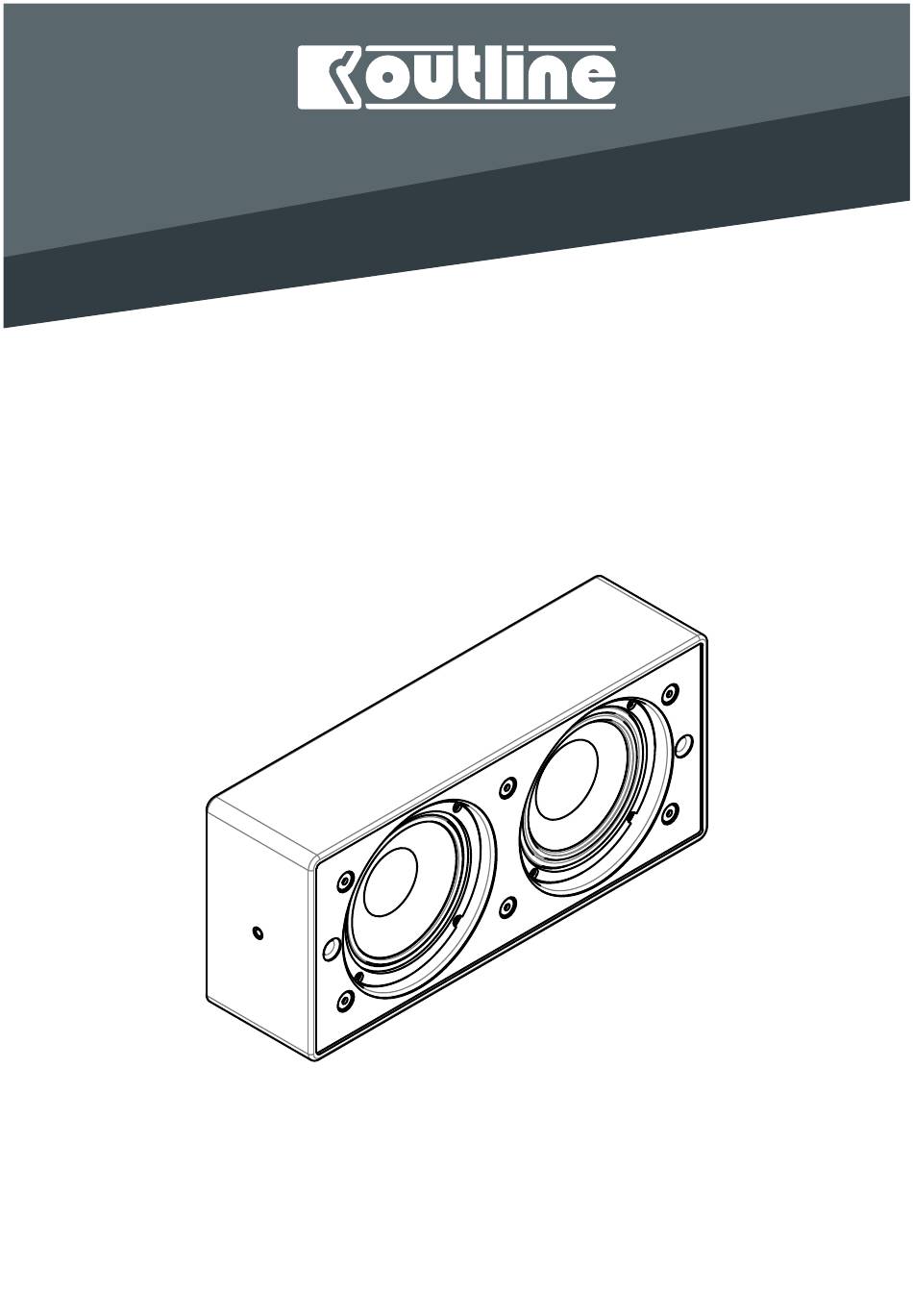

- Page 1 Subwoofer system USER MANUAL...
- Page 2 SAFETY REGULATIONS In order to avoid risks for the user’s and other be switched on after having connected and people’s safety, as well as annulling the warranty, switched on all the other components of the it is advisable to read the suggestions in this section sound reinforcement/recording system, to for correct use of the product.
- Page 3 AMPLIFIER CONNECTION AS6 is using one 6” woofer and one 6” passive diaphragm. The unit requires just one amplification channel and the connections are available on a 4-pin Euroblock socket.
- Page 4 MOUNTING INSTRUCTIONS AS6 cabinet features two through holes, as shown For this application, do not use screws with in the figure, to install the box either on wall or on a diameter greater than 4.5 mm. flat surface. Proceed as follows: •...
- Page 5 OVERALL DIMENSIONS M6 FIXING POINT (also on opposite side) OUTLINE S.R.L. Tel.: +39 030.3581341 www.outline.it Via Leonardo da Vinci, 56 Fax +39 030.3580431 25020 Flero (Brescia) Italy info@outline.it...
- Page 6 TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS Frequency response (-10dB) 42 Hz - 350 Hz Nominal Dispersion Quasi-omnidirectional Impedance (Nom/Min) 8 Ω / 8.6 Ω Watt AES (Continuous/Peak) * 150 W / 1500 W Maximum SPL Output ** 114 dB * according to AES2-2012 (+12 dB) standard ** calculated using +12 dB Crest Factor signal (AES2-2012) PHYSICAL Components...
- Page 7 APPENDIX - PERIODIC CONTROLS All the loudspeakers, before the shipment, are damaged during the shipment. Periodic controls fully tested at the end of the production line, but shall be performed at regular time intervals. The before the system is installed an overall check shall following table represents an ideal check.
- Page 8 Outline carries out on-going research for product improvement. New materials, manufacturing methods and design upgrades are introduced to existing products without prior notice as a routine result of this philosophy. For this reason, any current Outline product may differ in some aspect from its description, but will always equal or exceed the original design specifications unless otherwise stated.
