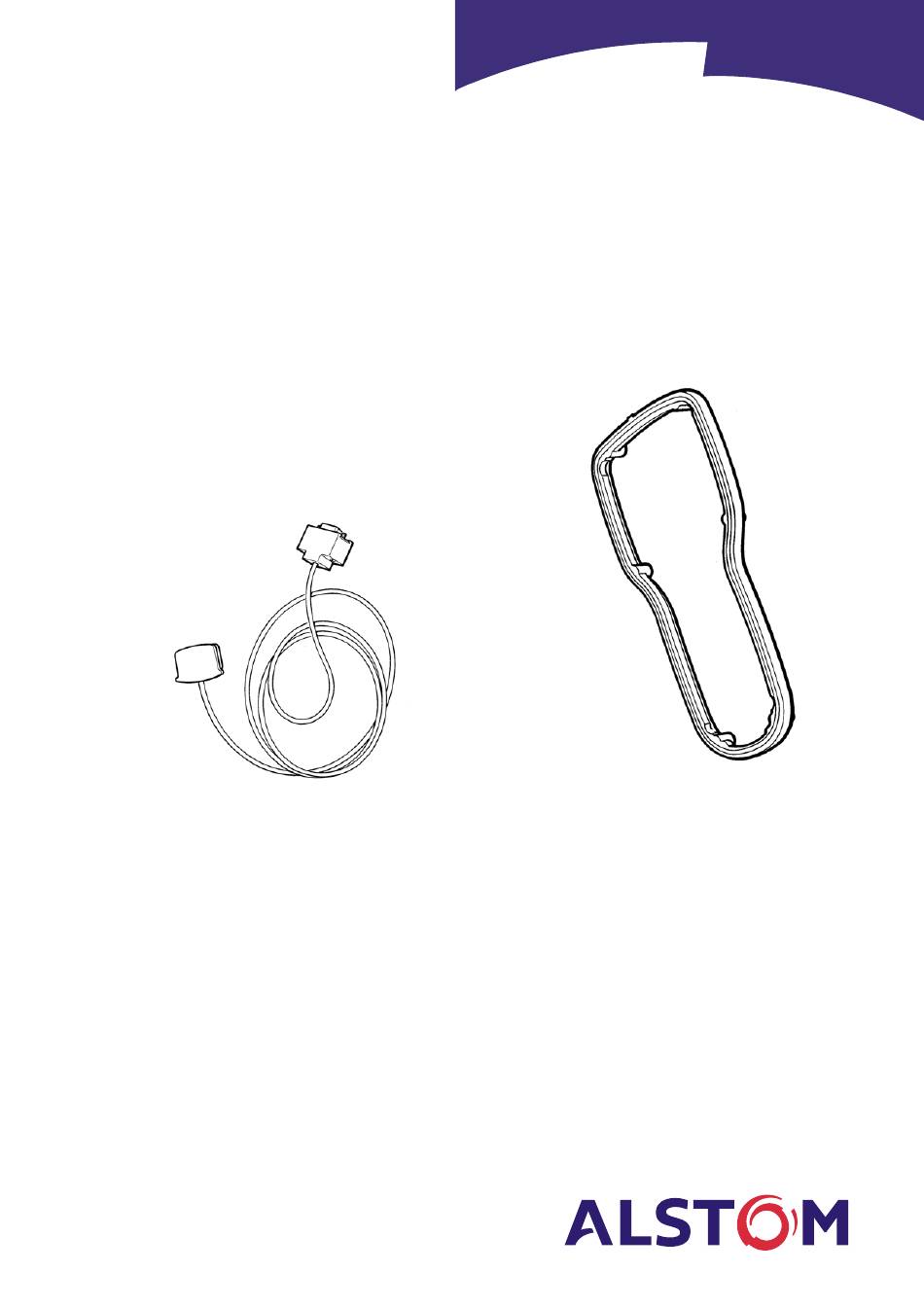

ALSPA MV3000 Drive Data Manager™ Lead/Mounting Kit
Part Number MVS3001-4001
Features / Specification :
• 3 metre extension cable for hand-held operation, or
enclosure mounting of Drive Data Manager™

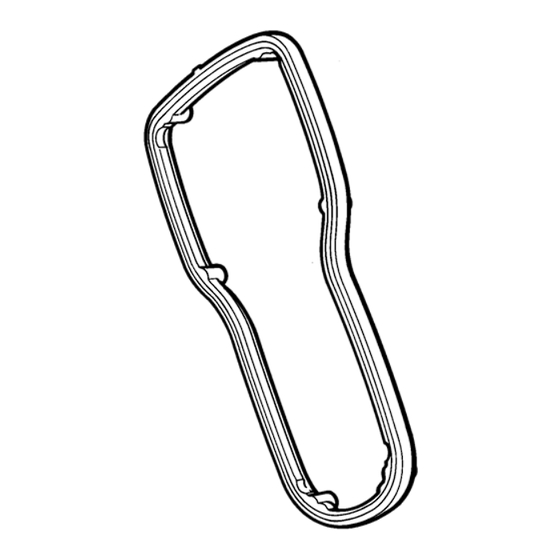

• Mounting Kit to achieve IP65, when mounted on an
enclosure panel
• Drilling template for enclosure mounting of the Drive
Data Manager™
• Humidity :
5% to 95% Relative Humidity,
non condensing
• Temperature :
Operating 0°C to 50°C
Storage -25°C to 70°C
Related Documents
Failure to comply with any of the general requirements for installation, operation and maintenance
provided in the technical manuals will significantly increase the risk of maloperation, fire or electric
shock.
T1676
ALSPA MV3000 Getting Started Manual
Scope
This instruction sheet explains how to mount the Drive Data Manager™ on an enclosure, and how to correctly
use the extension cable for hand held operation.
Instruction Sheet T1916EN Rev. 0002 (07/00)
Page 1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Alstom Drive Data Manager ALSPA MV3000
- Page 1 ALSPA MV3000 Drive Data Manager™ Lead/Mounting Kit Part Number MVS3001-4001 Features / Specification : • 3 metre extension cable for hand-held operation, or enclosure mounting of Drive Data Manager™ • Mounting Kit to achieve IP65, when mounted on an enclosure panel •...
- Page 2 ALSPA MV3000 Drive Data Manager™ Lead/Mounting Kit Related Products This enclosure mounting kit is intended for use with the MV3000 Drive Data Manager™ MVS3000-4001, allowing it to meet IP65. Box Contents This box contains the following items : Description Quantity This Instruction Sheet (T1916) including drilling template Data Drive Manager™...
- Page 3 ALSPA MV3000 Drive Data Manager™ Lead/Mounting Kit Fitting Instructions For Enclosure Operation Of The Drive Data Manager™ CAUTION Do not photocopy the template as it may change size. Only use the template provided by =>?@. • Using adhesive tape, fix the drilling template in position on the enclosure.
- Page 4 ALSPA MV3000 Drive Data Manager™ Lead/Mounting Kit • Fit the lead to the Drive Data Manager™. • Pass the other end of the lead through the 35mm diameter hole in the enclosure. • Using the M4 x 8 screws and spring washers provided, secure the Drive Data Manager™...
- Page 5 ALSPA MV3000 Drive Data Manager™ Lead/Mounting Kit • Fit the 4-40 UNC screw locks to the drive. • Route the Drive Data Manager™ lead as required through the enclosure to the drive. • Open the yellow Control Door and route the cable up inside the Control Wiring area of the drive.
- Page 6 ALSPA MV3000 Drive Data Manager™ Lead/Mounting Kit Fitting Instructions For Hand-Held Operation Of The Drive Data Manager™ • For hand-held operation of the Drive Data Manager™ fit the extension lead as shown. • Use the tab on the side of the extension lead connector to retain the lead.
- Page 7 79.00 39.50 26.00 161.00 ø 35 Hole in cubicle door for keypad cable 98.00 4 HOLES ø 4.60 Warning : Photocopying can affect drawing size 52.00 Instruction Sheet T1916EN Rev. 0002 (07/00) Page 7 of 8...
- Page 8 ALSPA MV3000 Drive Data Manager™ Lead/Mounting Kit Avid Controls, Inc. 41261 Park 290 Dr Waller, TX 77484 +1(281)640-8600 Fax +1(281)640-8605 info@avidcontrolsinc.com www.avidcontrolsinc.com Instruction Sheet T1916EN Rev. 0002 (07/00) Page 8 of 8...
