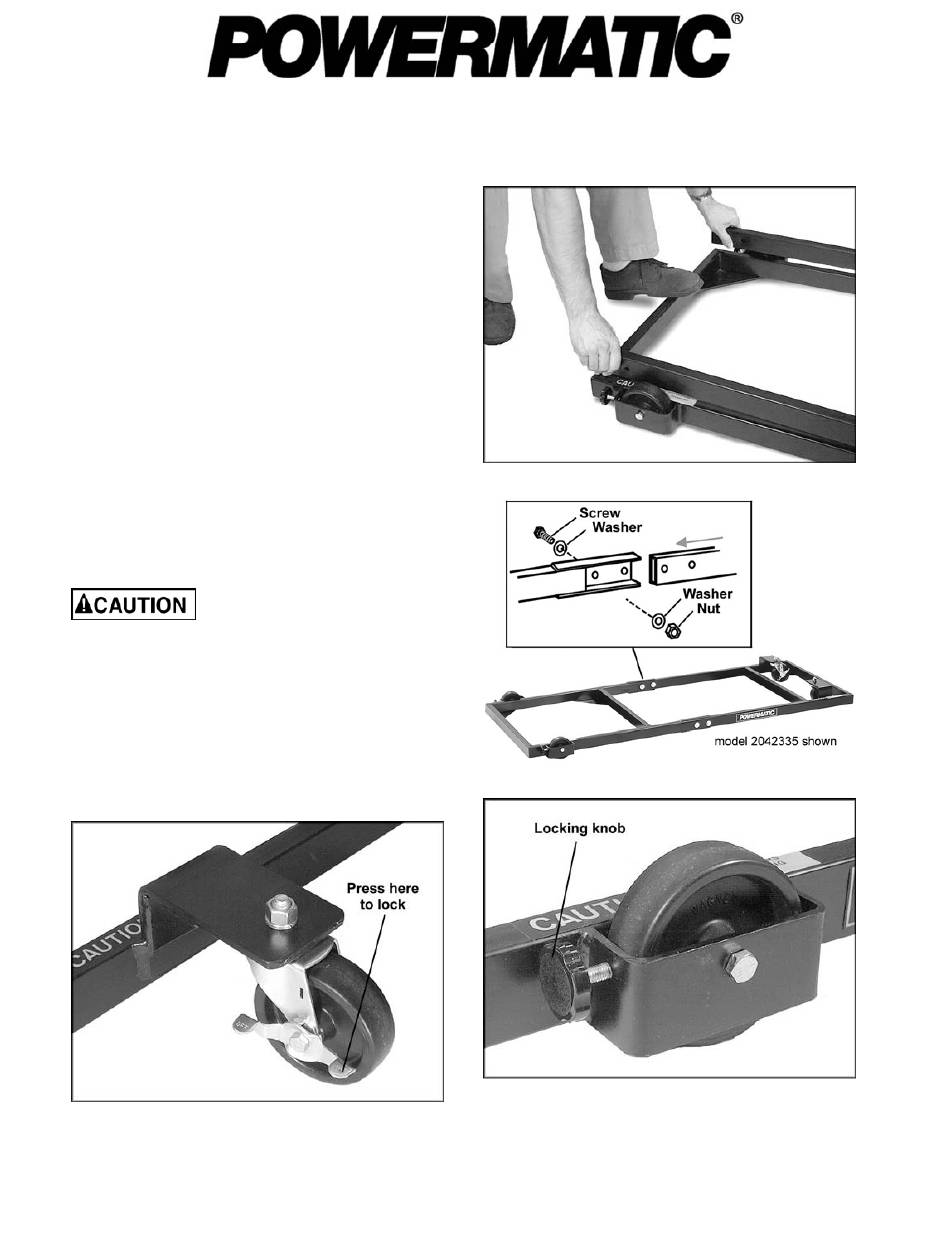

Powermatic 2042377 Instructions

Mobile base

Advertisement

Unpacking

Open shipping container and check that all parts
are intact. Report any damage immediately to
your distributor.
The small mobile base requires no assembly. The
extended mobile base requires minor assembly.

Assembly of Extended Mobile Base

The extended mobile base is shipped with one
piece flipped on top of the other. To separate
them, place your foot on the lower bar and lift up
on the two sides. See Figure 1.
Attach the two pieces with four screws, eight flat
washers, and four hex nuts (provided), as shown
in Figure 2. A 9/16" wrench is required.

Operation

Lock
operating machine.
To lock a swivel caster, press locking lever down
with foot (Figure 3). Press opposite end of lever to
unlock.
To lock a rigid caster, rotate caster locking knob
clockwise (Figure 4).
Figure 3
Mobile Base Instructions
all
casters
before
Copyright © 2014 Powermatic, a Division of JPW Industries, Inc.
Figure 1
Figure 2
Figure 4
Part No. M-0460287
Revision F4 01/2014
