Summary of Contents for KESO KG-5

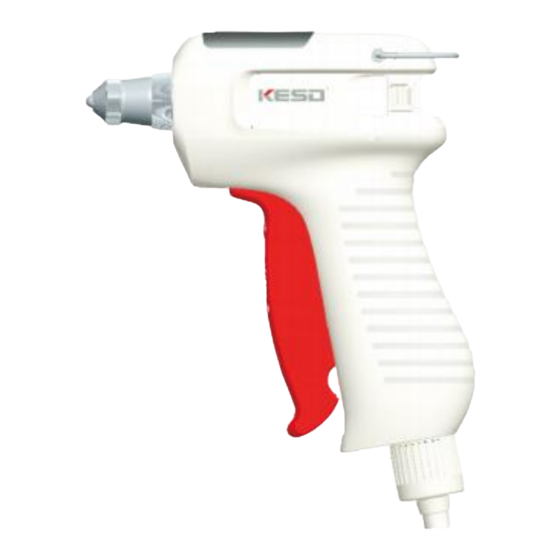

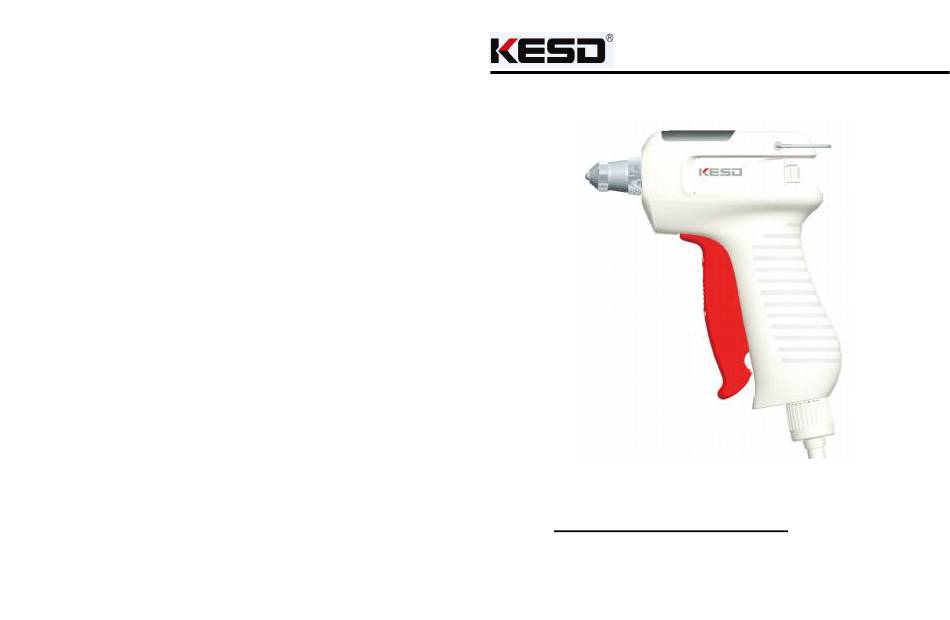

- Page 1 Hand Operated Electrostatic Eliminator KG-5 High Frequency AC Ion Air Gun...
- Page 2 Read carefully before using 6. Make empty and clean inside of the tube if equip with air tube ■ Thank your very much to buy the KG-5 ion air gun 7. Precise electronic parts are installed within the product. When ■...
- Page 3 decrease the voice. Piston design of the air flue, huge volume enable Product structure diagram short decay time 3. Various nozzle heads optional for different application 4. Trigger Arc design in accordance with ergonomics, convenient for operation 5. “Electric & air synchronous” and “Air inlet firstly, electric secondly”...
- Page 4 Product detailed diagram Dimension...
- Page 5 Left housing ABS C type latch Electric & air control switch Down: Air inlet firstly, electric secondly (Optional for flammable and Right housing ABS Trigger combustible industry) Hanger Electric & air control switch ABS Upper: Electric & air synchronous HV Box Inching switch L type air flue (Fireproof ABS) Laser head...
- Page 6 Technical parameters: Different nozzle head for option Model: KG-5 Input power DC24V High voltage output: 2200V Current consumption 500mA Power normal LED green light HV normal LED blue light indicator Clean reminder LED yellow light HV abnormal LED red light...
- Page 7 Ozone concentration: Below 0.03ppm(distance 150mm) Length of power adapter cable: 2m Power and air tube connect drawing Φ6 trachea Hose diameter: 0.2μm Filter precision: Connect is rotate type and disassemble, position in the accurate point and fasten well for a fine performance Filter efficiency: Anti-static test condition Operating voltage: DC 24V Test voltage:±...
- Page 8 2. Service after Warranty Period All products sold by the company will still be reparied free of labor cost (only charging part cost) after warranty period to protect customer’s interest. The company maintains the right of modifying the above product property parameters and technology at any time without further notification.
