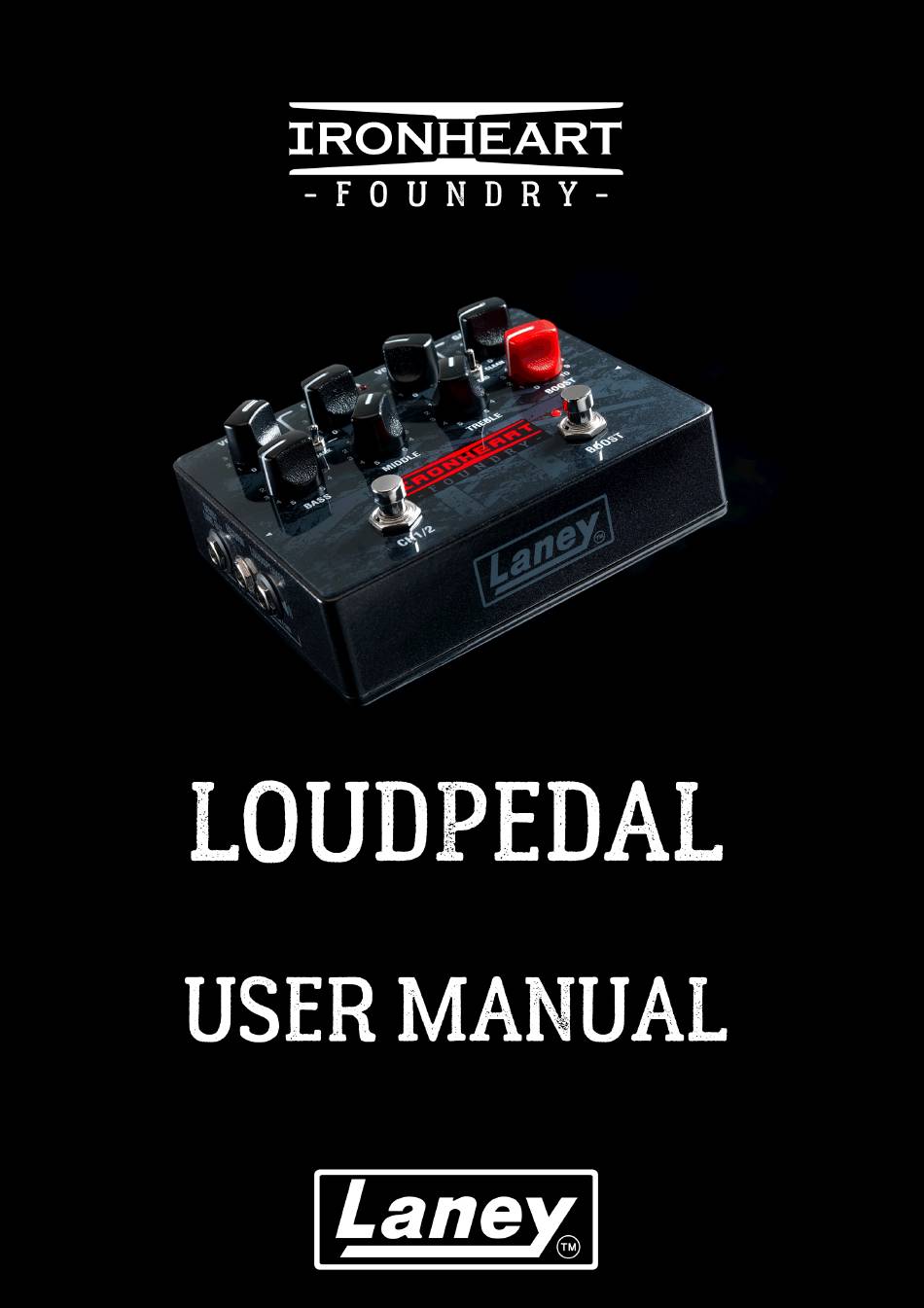

Summary of Contents for Laney IRONHEART FOUNDRY LOUDPEDAL
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..............................2 FEATURES ..............................2 CONTROLS ................................. 3 TOP VIEW ............................... 3 REAR VIEW ..............................5 BOTTOM VIEW .............................. 6 CONNECTIONS ..............................7 HOW TO CONNECT THE LOUDPEDAL ..................... 8 EXAMPLE SETTINGS ............................10 SPECIFICATIONS ............................. 13 DIMENSIONS (in mm) ..........................14 SAFETY AND WARNINGS .......................... -
Page 3: Introduction
INTRODUCTION Your new LANEY IRONHEART FOUNDRY series LOUDPEDAL is a powerhouse 60-Watt twin channel amplifier in a pedal format. You are now part of our crusade to deliver crushingly powerful amplification. A journey that began in 1967 in The Black Country, in the heart of England. -
Page 4: Controls

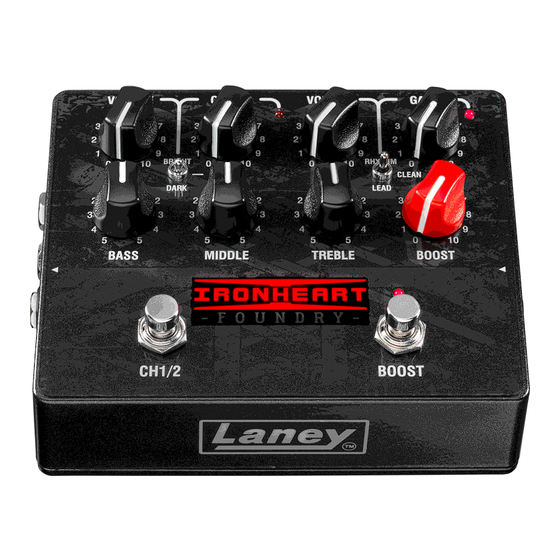

CONTROLS TOP VIEW Thanks to its dual channel setup, the LOUDPEDAL allows you to easily switch between two tones set by the user. Channel 2 possesses more gain than Channel 1 and will distort much easier as you increase the gain. With their own individual volume and gain controls, the levels can be changed independently, allowing you two different tones to switch between. - Page 5 CHANNEL 2 TONE SWITCH o BRIGHT – Extends the high frequencies and slightly dulls the low-end. o DARK – Boosts the low-end frequencies adding some warmth to the tone whilst reducing the power of the higher frequencies. o OFF – Middle setting results in no change to your signal from this switch. The LOUDPEDAL’s built in passive EQ stack allows you to fine tune your sound.
-
Page 6: Rear View
REAR VIEW The Power inlet and switch. This switch will turn on and off the pedal. We suggest turning the pedal off when plugging in the power supply. IRONHEART logo will light up on the front indicating the pedal is on. The LOUDPEDAL has an included power supply runs universally at 100-240V~. Warning: Only connect the provided 24V 2.5A power supply to the DC inlet. - Page 7 RIGHT SIDE VIEW 6.3mm input jack. Plug your signal input in here, either direct from your guitar or from your pedalboard setup. LEFT SIDE VIEW 6.3mm output jack. This is a multi-purpose output that can be used either as a line level output, or as a traditional effect send to your other gear.
-
Page 8: Bottom View
BOTTOM VIEW Your serial number is attached here along with other information. Page 7... -
Page 9: How To Connect The Loudpedal
HOW TO CONNECT THE LOUDPEDAL The LOUDPEDAL can function just like your regular head, plugged directly into a passive speaker cabinet. Its loud. You can also connect your pedalboard to the LOUDPEDAL’s FX loop and use the pedal in place of a regular amplifier. - Page 10 The LOUDPEDAL includes a high-quality headphone output for silent practice. It is optimised for high impedance headphones such as common 33ohm types, though any may be used. To play along with a backing track, the LOUDPEDAL comes with an AUX in connection. This is a stereo 3.5mm mini jack to connect to the audio output of any device with an aux or headphone output.
- Page 11 The LOUDPEDAL has a high-quality speaker emulated DI output that can be connected to any balanced line level input device such as a PA or audio interface to DAW. The loudspeaker emulation can be disabled, allowing you to add you own in the DAW. Page 10...
- Page 12 The LOUDPEDAL can be connected in series with your regular pedal setup to act as a dual channel gain pedal with additional boost. Page 11...
-
Page 13: Example Settings
EXAMPLE SETTINGS The best way to get started with your LOUDPEDAL is to experiment with the controls to find your favourite sounds. However, for a head start, here are a few example tone settings to try out: FORGED CLEAN HAMMER CRUNCH MOLTEN LEAD Page 12... -
Page 14: Specifications
SPECIFICATIONS Specifications Model LOUDPEDAL Type Floor Mounted Guitar Amplifier 1MΩ Input Impedance Line Output Impedance 100Ω Amplifier Power 60W RMS Controls Two Channels both with Gain and Volume. CH1 Clean, Rhythm, Lead switch. CH2 Natural, Bright, dark switch. Input pre-boost level and footswitch with LED indicator. Bass, Middle, treble controls. -
Page 15: Dimensions (In Mm)
DIMENSIONS (in mm) Page 14... -
Page 16: Safety And Warnings
1) Unpacking: On unpacking your product please check carefully for any signs of damage that may have occurred whilst in transit from the Laney factory to your dealer. In the unlikely event that there has been damage, please re-pack your unit in its original carton and consult your dealer. - Page 17 1) This device may not cause harmful interference 2) This device must accept any interference received, that may cause undesired operation. Warning: Changes or modification to the equipment not approved by Laney can void the user's authority to use the equipment.
- Page 18 STEELPARK ROAD, COOMBSWOOD BUSINESS PARK WEST, HALESOWEN, B62 8HD. UK FOR THE LATEST INFORMATION PLEASE VISIT WWW.LANEY.CO.UK IN THE INTEREST OF CONTINUED DEVELOPMENT, LANEY RESERVES THE RIGHT TO AMEND PRODUCT SPECIFICATION WITHOUT PRIOR NOTIFICATION. V1.0 Page 17...
