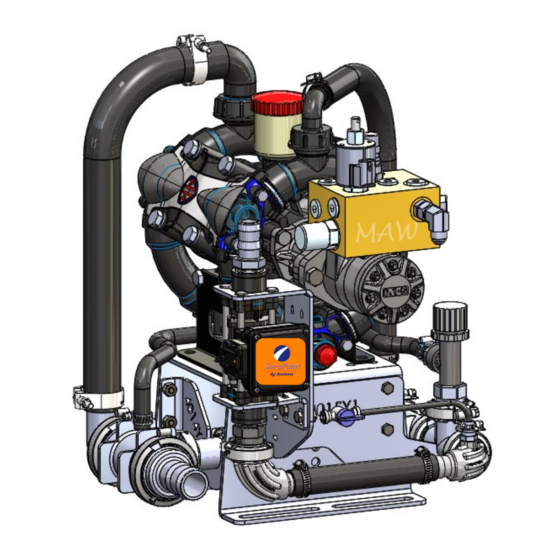

SurePoint PUMPRIGHT PR17 Manual

With surepoint sentinel rate control with pwm control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Sentinel Instructional Videos
Scan or click
Maximum Pump Flow and Application Rates
Number of
Diaphragms
PR17
PR30
PR40
D250
396-4953Y1 SurePoint PumpRight for Sentinel Rate Control
396-4953Y1
SurePoint Sentinel
Rate Control
With PWM Control
Max Flow
GPM
3
17
3
30
4
40
6
55
© 2010-2022 SurePoint Ag Systems Inc.
PumpRight &
Max GPA on 40' at
Max GPA on 60'
6 MPH
35
62
82
Operator should read this
manual before operating the
system.
at
6 MPH
23.5
41
55
75
Revised 05/13/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUMPRIGHT PR17 and is the answer not in the manual?

Questions and answers

Summary of Contents for SurePoint PUMPRIGHT PR17

  • Page 1 Maximum Pump Flow and Application Rates Number of Max Flow Max GPA on 40’ at Max GPA on 60’ Diaphragms 6 MPH 6 MPH PR17 23.5 PR30 PR40 D250 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 2 396-4035Y1, for harness layouts, system setup, module addressing and more about operating the Sentinel Rate Control system. Scan or click the QR Code to go to the Sentinel Instructional Videos Playlist on YouTube. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 3: Table Of Contents

    Replacing Valves and Diaphragms ..............43-45 Maintenance • Pump Assemblies and Parts Breakdowns............46 & Parts • PWM Valve and Motor Parts ................47 • See 396-4034Y1 PumpRightManual 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 4 CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices. NOTICE is used to address safety practices not related to personal safety. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 5 A Word to the Operator It is YOUR responsibility to read and understand the safety messages in this manual. YOU are the key to safety. SAFETY IS YOUR RESPONSIBILITY. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 6 396-4035Y1, for harness layouts, system setup, module addressing and more about operating the Sentinel Rate Control system. Scan or click the QR Code to go to the Sentinel Instructional Videos Playlist on YouTube. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 7: Basic Steps To Install Your Fertilizer System

    2. Open the packages and familiarize yourself with the components. See the System Overview Example on the following page to see the big picture of how SurePoint Fertilizer Systems are installed. Refer to manual sections B & D for component information.

  • Page 8: Introduction

    System Overview Example The following gives an example of a complete SurePoint Fertilizer system with these Introduction components: • Display with UT or VT and Task Control • Sentinel ECU Module • PumpRight PR30 • Section Valves • Flow Indicators SurePoint Adapter Harness- •...
  • Page 9 System Overview Example The following gives an example of a complete SurePoint Fertilizer system with Gen2 Introduction LiquiShift and these components: • Display with UT or VT and Task Control • Sentinel Rate Controller • PumpRight PR30 • LiquiShift Valve Stack Extension harness to •...

  • Page 10: Flowmeters

    Second, electromagnetic flowmeters detect the flow by electrically measuring the velocity of the liquid, which makes them independent of viscosity or density of the fluid measured. They are extremely accurate using the standard calibration number. SurePoint still recommends you perform a catch test to verify the system is properly installed and configured.
  • Page 11 Earlier model flowmeters (meters with white labels with black text) have different calibration numbers. The flow cal number (pulses per gallon) is printed on the serial number sticker on the side of the flowmeter. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022...

  • Page 12: Section Valves

    Pin A—Red, 12 Volts + 384-1100 Pin B—Black, Ground - See also: Gen3 LiquiShift Manual (396-4608Y1) Pin C—White, Signal Mounting Bracket Gen2 LiquiShift Manual (396-4063Y1) 400-2493Y1 12V=on ; 0V=off 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 13: Pressure Sensor

    Then also order the kit above that includes the 2” Manifold x 1/4” MPT fitting. 3/4” Hose Pressure Tap 520-00-055800 1” Hose Pressure Tap 520-00-055850 1 1/2” Hose Pressure Tap 520-00-055900 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 14: Pump Priming And Air Bleed Valve

    1” x 2” tee on outlet side 90 deg HB sweep gauge port of pump 1/4” air bleed valve 1/4” Tubing 1/4” air bleed valve 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 15: Recirculation & Agitation

    Recirculation hose attaches to back of 2” x 1” tee 102-23520-3/4 on pump inlet Start with a quarter to a half turn. 1/2” recirculation hose 1/2” recirculation Recirculation Regulation hose Valve, 102-23520-3/4 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 16: Flow Indicators And Manifolds, Check Valves, Orifice Charts

    These indicators use an o-ring and wire clip connection to snap together in any configuration necessary. SurePoint has simple tee brackets and U-bolts that will mount these to a variety of bar sizes. Two main types of flow indicators are used. On 30”...
  • Page 17 The low flow column has a smaller internal diameter. This means a heavier ball can be used to monitor a smaller flow. SurePoint uses the low flow columns with 1/4” push to connect out- let fittings. The flow capability of 1/4” tubing and the low flow column are a 400-2011A1 great pair for rates on 30”...
  • Page 18 2.292 113.46 100.85 90.76 82.51 75.64 69.82 64.83 All application rates (gallons/acres) are estimates based on 0-28-0 (10.65 lbs/gallon) at 70 degrees F. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 19 PN 136-04-04QC04QC 4 lb check valves are typically used with electric pump systems. SurePoint recommends this valve for use with 1/4” tubing applying up to 10 GPA on 30” rows. The recommended minimum system operating pressure for this check is 10 psi, to ensure all checks open fully.
  • Page 20 Colored Disc Orifice Chart for 30” rows Download the SurePoint Flow Calculator App for iPad Components Liquid 30” Spacing PumpRight Pressure Recommendations (with 10 lb check Orifice Color Gal/Min valves): (Approx 28-0-0 Size) • Minimum 20 PSI 0.033 1.62 1.44 1.30...
  • Page 21 All application rates (gallons/acres) are estimates based on 0-28-0 (10.65 lbs/gallon) at 70 degrees F. All application rates (gallons/acres) are estimates based on 0-28-0 (10.65 lbs/gallon) at 70 degrees F. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 22 All application rates (gallons/acres) are estimates based on 0-28-0 (10.65 lbs/gallon) at 70 degrees F. All application rates (gallons/acres) are estimates based on 0-28-0 (10.65 lbs/gallon) at 70 degrees F. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 23 All application rates (gallons/acres) are estimates based on 0-28-0 (10.65 lbs/gallon) at 70 degrees F. All application rates (gallons/acres) are estimates based on 0-28-0 (10.65 lbs/gallon) at 70 degrees F. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 24: Dual Check Valve Systems, Row Distribution

    Metering Tube / LiquiShiftTube Charts. SurePoint dual metering tube plumbing kits are a great way to apply fertilizer. These plumbing kits will contain everything you need to distribute fertilizer from the flowmeter outlet down to the ground application device of your choice (not included).
  • Page 25 Section 2 Section 1 Section 3 For a 2 section plumbing system, omit the center section and plumb similar to the outside 2 sections. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 26 Short tube. notch to length Bracket mount can be cut off. check valve closer to the bar. Long Bracket 311-0408000800-05 1/4” L Bolt 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 27 Hose Barb 113-15-038025 Reducing Straight Connector 3/8” QC x 1/4” QC 3/8” Hose, attach to tube Push 3/8” end onto SS tube with hose clamp 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 28: Metering Tube Charts

    Insert 4116 p1 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 29 Insert 4116 p3 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 30 Insert 4116 p4 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 31 396-4035Y1, for harness layouts, system setup, module addressing and more about operating the Sentinel Rate Control system. Scan or click the QR Code to go to the Sentinel Instructional Videos Playlist on YouTube. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 32: Installation Overview

    515-1005 12 Row Seed Firmer, SS outlet. Colored disc orifice 515-1006 6 Row Tube, etc. can be placed under cap. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 33: Installation Overview

    2. SurePoint has U-Bolts available to mount the pump directly to multiple bar sizes shown below. Each U- bolt kit includes 1 bolt and 2 flange nuts.

  • Page 34: Hydraulic Connections, Pwm Valve, Hydraulic Oil Flow Requirements

    If the load sense is needed, do this: First, remove the load sense plug and install a #6 male boss x #6 JIC adapter fitting, SurePoint PN 161-01-6MB-6MJ. Then run a 3/8” or 1/4”...
  • Page 35 PumpRight after the seed distribution fan. If using this method, the SurePoint PWM bypass valve must be open (see previous page for instruction & picture). If bypass is left closed, the SurePoint valve will limit the speed of the seed distribution fan.
  • Page 36 PumpRight Hydraulic Oil Flow Requirements (Requirements for 4.0 CID Motor—standard SurePoint motor beginning in 2016— Earlier motor was 4.9 CID which uses 20% more oil) Installation Overview Setting Tractor Hydraulic Remote Speed PumpRight pumps require a constant hydraulic oil flow from Model PR17 - 3 Diaphragms the tractor.

  • Page 37: Liquid Plumbing Connections

    Pressure Relief Valve (PRV) is installed and functioning so system pressure will be kept under 100 PSI. Check hoses, hose clamps, and liquid fittings regularly and repair or replace loose connections. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 38 (PRV) is installed and functioning so system pressure will be kept under 100 PSI. Check hoses, hose clamps, and liquid fittings regularly and repair or replace loose connections. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 39: Setup & Operation

    396-4035Y1, for harness layouts, system setup, module addressing and more about operating the Sentinel Rate Control system. Scan or click the QR Code to go to the Sentinel Instructional Videos Playlist on YouTube. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 40: Pump Will Not Turn, Manual Operation Mode

    Hydraulic Pump Will Not Turn Turn hydraulics off, go to the SurePoint Hydraulic PWM valve and use the manual override (red knob) on top of the electric coil to manually open the valve (Manual Override UP = valve fully Trouble- open).
  • Page 41 396-4035Y1, for harness layouts, system setup, module addressing and more about operating the Sentinel Rate Control system. Scan or click the QR Code to go to the Sentinel Instructional Videos Playlist on YouTube. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 42: Flowmeter Troubleshooting And Tap Test

    5. Change Flow Cal back to appropriate Flow Cal when finished with Tap Test. 6. SurePoint has a Speed/Flow Simulator (PN 219-01462) or a Tap Tester (212-03-3912Y1) that can be used to confirm if the wiring is good between the flowmeter and controller.

  • Page 43: Section Valve Won't Move, Pressure Sensor Issues

    Connect the (-) end of the battery to pin C and the (+) end to pin A of the pressure connector. The 1.5 v should show up as 30 psi on the screen. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022...

  • Page 44: Other Troubleshooting Issues

    This will show up in an in- creased Duty Cycle and RPM. Working Width will change as sections turn on and off. It should show the application width at any time. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 45 4. If there is a DC% showing, but the pump is not running, check the hydraulics or the EPD on an electric pump system. Verify there is voltage on the 2-pin PWM Connector. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022...
  • Page 46 396-4035Y1, for harness layouts, system setup, module addressing and more about operating the Sentinel Rate Control system. Scan or click the QR Code to go to the Sentinel Instructional Videos Playlist on YouTube. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 47: Maintenance & Parts

    20% of working pressure. So, if your system operates at 50 psi, charge the air bladder to 10 psi. Due to the small size of the air bladder, very little air is needed. SurePoint recommends charging a portable air tank to the correct pressure, then attach to the bladder valve to charge the air bladder to the same pressure as your air tank.

  • Page 48: Pre-Season Service

    100 PSI. Check hoses, hose clamps, and liquid fit- tings regularly and repair or replace loose connections. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 49: Replacing Valves And Diaphragms

    D160 - D250 Valves (not shown) are Part Number arranged on (all begin 291-02- Description opposite sides of 9910-xxxxxx) head. 550080 Diaphragm (Buna, Optional) 550190 Accumulator Diaphragm 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 50 For other service parts, see individual Pump Part Breakout Diagrams in 396-4034Y1, the PumpRight manual that came with your pump. Also see the manual and individual pump parts breakouts online here. (store.SurePointag.com) 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
  • Page 51 Wobble Plate/Diaphragm Sleeve Keeper Washer Diaphragm Inlet Valve NOTE: A multipurpose grease is fine to use for applying in between the Diaphragm and Wobble Plate/Washer Gasket/O-ring 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 52: Pump Assemblies And Parts Breakdowns

    Diagrams in 396-4034Y1, the PumpRight manual that came with your pump. Also see the manual and individual pump parts breakouts online here. (store.SurePointag.com) Go to support.SurePointag.com for pump information and parts breakdowns. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.

  • Page 53: Pwm Valve And Motor Parts

    4.0 CID motor (this is the standard motor beginning in 2016) Maintenance & Parts 164-FTA1609 Same as 164-FTA0994, but with RPM Speed Sensor-- GRC does not support a Pump RPM sensor. 396-4953Y1 SurePoint PumpRight for Sentinel Rate Control Revised 05/13/2022 © 2010-2022 SurePoint Ag Systems Inc.
