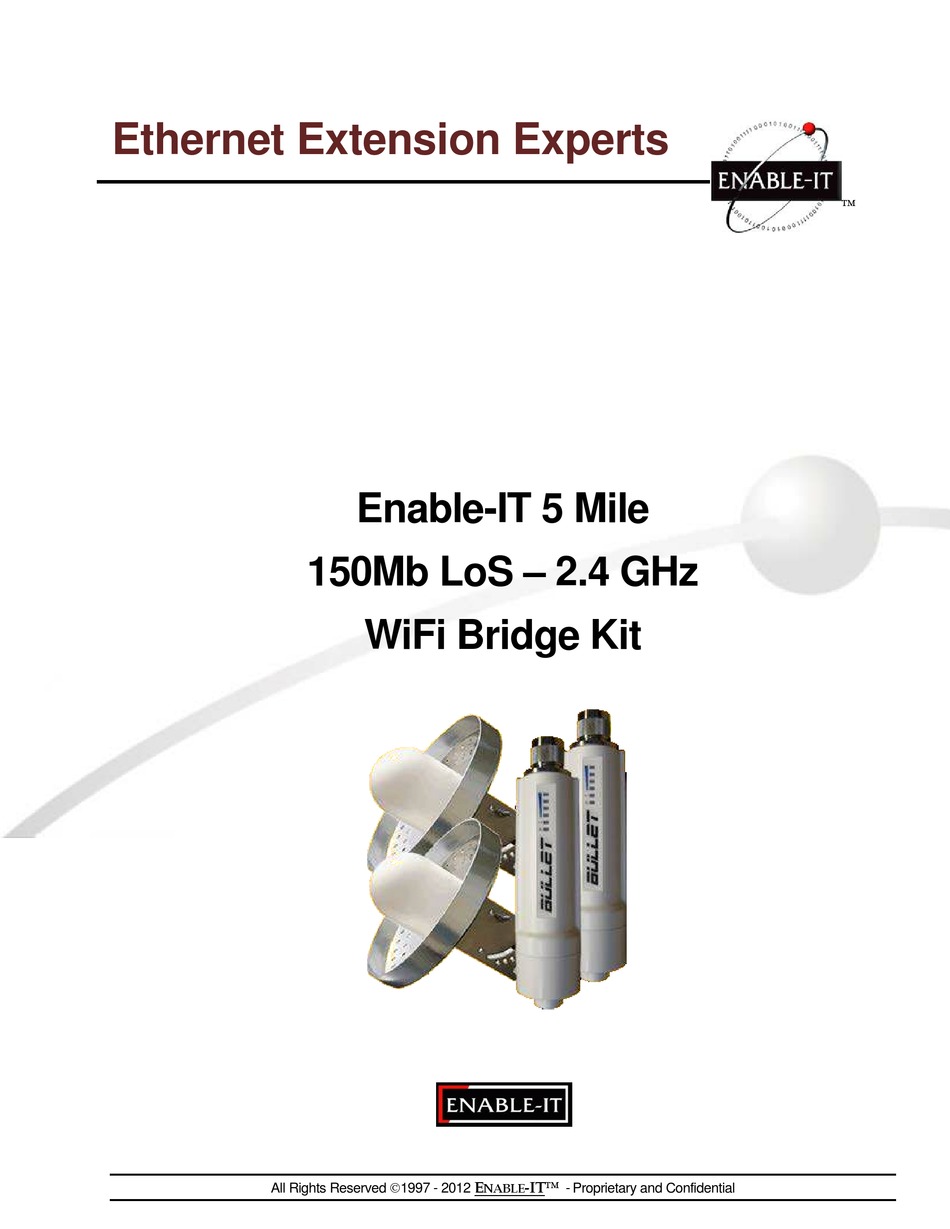

- Page 1 Ethernet Extension Experts Enable-IT 5 Mile 150Mb LoS – 2.4 GHz WiFi Bridge Kit All Rights Reserved 1997 - 2012 -IT - Proprietary and Confidential NABLE...
- Page 2 If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation. If you are unable to locate a copy, please contact Enable-IT, Inc and a copy will be provided to you.
-
Page 3: Table Of Contents
CONTENTS BOUT UIDE RODUCT VERVIEW & S EATURES PECIFICATIONS 150M INSTALLING THE RIDGE 8450 A 8-16 ONFIGURING THE CCESS OINT OUTER TROUBLESHOOTING ECHNICAL SUPPORT -IT I NABLE IMITED ARRANTY ONTACT US Page 3 of Ethernet Extension Experts... -
Page 4: About This Guide
ABOUT THIS GUIDE This guide provides all the information needed to install and use the Enable-IT 5 Mile 150Mbps WiFi Bridge. This guide is intended for use by technicians who are responsible for installing and setting up network equipment. Consequently, it is assumed that the installer has a basic working knowledge of LANs (Local Area Networks) and voice telecom wiring. -
Page 5: Product Overview
RODUCT OVERVIEW Enable-IT 5 Mile 150Mbps WiFi Bridge Kit is a multi-purpose router that can act as a standard SOHO (Small Office/Home Office) router or operate in two other network modes: Bridge or Router mode. The High Speed Bridge also offers multiple wireless modes... - Page 6 & S EATURES PECIFICATIONS • High Power 600mw capable of heavy demands, such as video streaming. • Capable of 150Mbps+ real TCP/IP speeds over multi-km distances. • Connects directly to antenna so no RF cables needed. • Web based administration. •...
-
Page 7: Installing The 5 Mile
150M NSTALLING THE RIDGE Thank you for purchasing the 5 Mile 150Mbps Bridge Kit! Using this device you will be able to bridge LAN connections up to 150Mbps. This point to point kit will also act as a non-routing LAN extension or as a NAT-enabled gateway linking two locations by means of the IEEE 802.11N wireless frequency. - Page 8 150M ONFIGURING THE RIDGE 1) Connect a Category 5 Ethernet cable between your PC/MAC’s Ethernet port and the LAN port of the POE Injector. 2) Connect a second Category 5 Ethernet cable between the PoE port of the PoE injector and the Ethernet port of the 8450 Access Point. 3) Connect the PoE Injector to AC power with the included power cable.
-
Page 9: Configuring The 8450 A
8450 A ONFIGURING THE CCESS POINT Select Network Connections (if unavailable, select show “Classic view”). Vista: Select Start Menu/Window Logo > Network > Network and Sharing Center > Manage Network Connections Windows 7: Select Start Menu/Windows Logo > Network > Network and Sharing Center > Change Adapter Settings Once you can view your system’s network connections, right click on “Wireless Network Connection”... - Page 10 8450 A ONFIGURING THE CCESS POINT When logging into the 8450 Access Point to configure the unit, you will need to have a Static IP address on your PC/MAC’s Ethernet Adapter. Windows XP: Open Start Menu and Select Control Panel. Select Network Connection and right click “Local Area Connection.”...
- Page 11 8450 A ONFIGURING THE CCESS POINT Select Properties Select Internet Protocol (TCP/IP) or Internet Protocol (IPv4) and click Properties. Page 11 of Ethernet Extension Experts...
- Page 12 8450 A ONFIGURING THE CCESS POINT Select “Use the Following IP Address” and Enter 192.168.1.10 into the IP Address field and 255.255.255.0 into the subnet mask field. Select “OK” and select “Close” on the Local Area Connection properties window. Vista: Start Menu/Windows Logo > Control Panel > Network and Sharing Center > Manage Network Connection >...
- Page 13 8450 A ONFIGURING THE CCESS POINT Your PC/MAC is now ready to configure the 8450 Access Point device. Open a web browser (Internet Explorer, Mozilla Firefox, Safari, Google Chrome, etc.) and enter 192.168.1.20 into the address bar and hit “Enter.” Enter ‘ubnt’...
- Page 14 8450 A ONFIGURING THE CCESS POINT Select the “Wireless” tab and change the “Wireless Mode” to “Access Point WDS.” This will open the “WDS Peers” table. Enter the MAC Address of the secondary 8450 (12- digit alphanumeric code located on the top of the 8450 product box) into the first WDS Peers field.
- Page 15 8450 A ONFIGURING THE CCESS POINT Follow the same instructions as the previous 8450 explained on page 10. Select the “Wireless” tab and change the “Wireless Mode” to “Station WDS.” Enter the MAC Address of the primary 8450 (1 unit configured) into the “Lock to AP MAC” field.
- Page 16 8450 A ONFIGURING THE CCESS POINT Select “Change” in the lower right hand corner and then “Apply” at the upper right hand corner. Your 8450 Access Point devices are now configured as a point to point bridge. Antennae can now be connected to the integrated N-Type connector and the system can be deployed. The connection diagram at the beginning of this manual displays the correct cabling connections for integration into an existing network or LAN.
-
Page 17: Troubleshooting
ROUBLESHOOTING Most connection issues can be attributed to incorrect MAC address entry. If you are unable to gain network access of if the bridge is not functioning correctly, double check the MAC address entries against the WLAN MAC addresses listed on the Main Tab of each of the 8450’s configuration page. -
Page 18: Technical Support
-IT L NABLE IMITED ARRANTY Enable-IT warrants the Enable-IT 5 Mile 150Mbps WiFi Bridge Kit solely pursuant to the following terms and conditions. A. PRODUCT WARRANTY 1. Express Warranty Enable-IT warrants to the original purchaser of the Product ("you" or the "End User") that, for the one (1) year period commencing on the date the Product was... -
Page 19: Contact Us
PROGRAMS, DATA, OR OTHER INFORMATION STORED ON OR TRANSMITTED USING THE PRODUCT. 3. LIMITATION OF LIABILITY IN NO EVENT SHALL ENABLE-IT BE LIABLE TO THE END USER OR ANY THIRD PARTY FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH OR ARISING OUT OF THE...
