Summary of Contents for BLAUBERG CIVIC FMM 1000

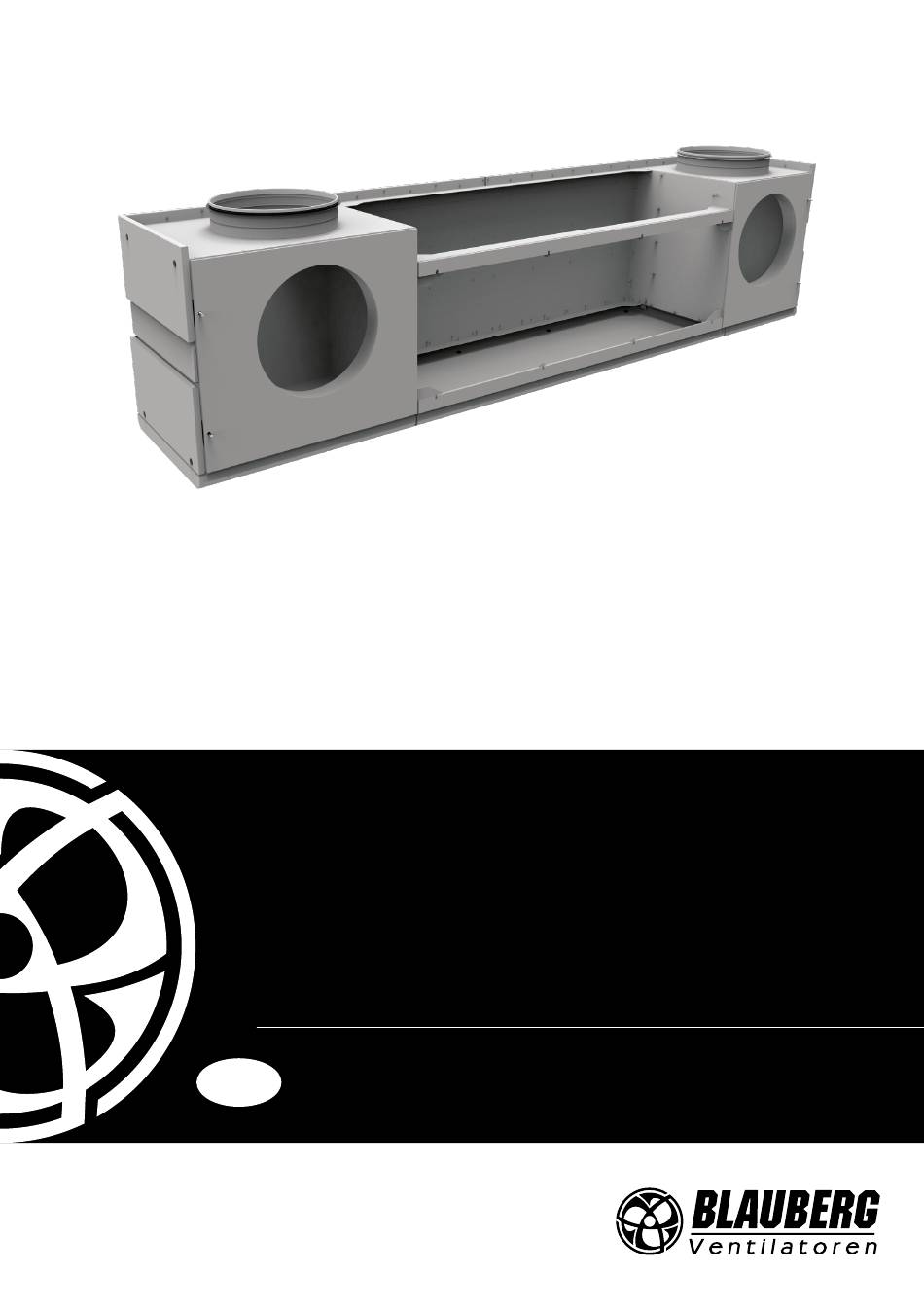

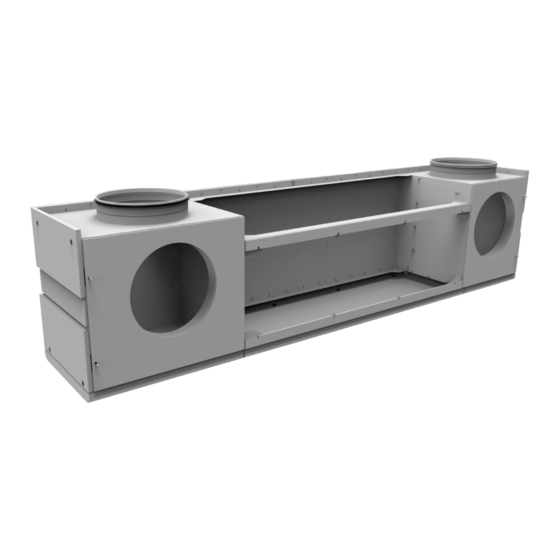

- Page 1 VERTICAL DUCT CONNECTION MODULE CIVIC FMM 1000 INSTALLATION INSTRUCTION...
- Page 2 CIVIC FMM 1000 blaubergventilatoren.de PURPOSE The product is designed to connect the unit. Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs).
- Page 3 CIVIC FMM 1000 blaubergventilatoren.de OPERATION LOGIC MOUNTING AND SET-UP The product is fixed to the mounted unit using screws screwed into the mounting plate of the unit and the screws contained in the product. Remove the screws on the mounting plate corresponding to the mounting holes. Attach the product to the unit in accordance with the diagram shown.
- Page 4 blaubergventilatoren.de B177-1-1EN-01...
