Air Sniper DCU-300

USER MANUAL

Table of Contents

Need help?

Do you have a question about the DCU-300 and is the answer not in the manual?

Questions and answers

Summary of Contents for air sniper DCU-300

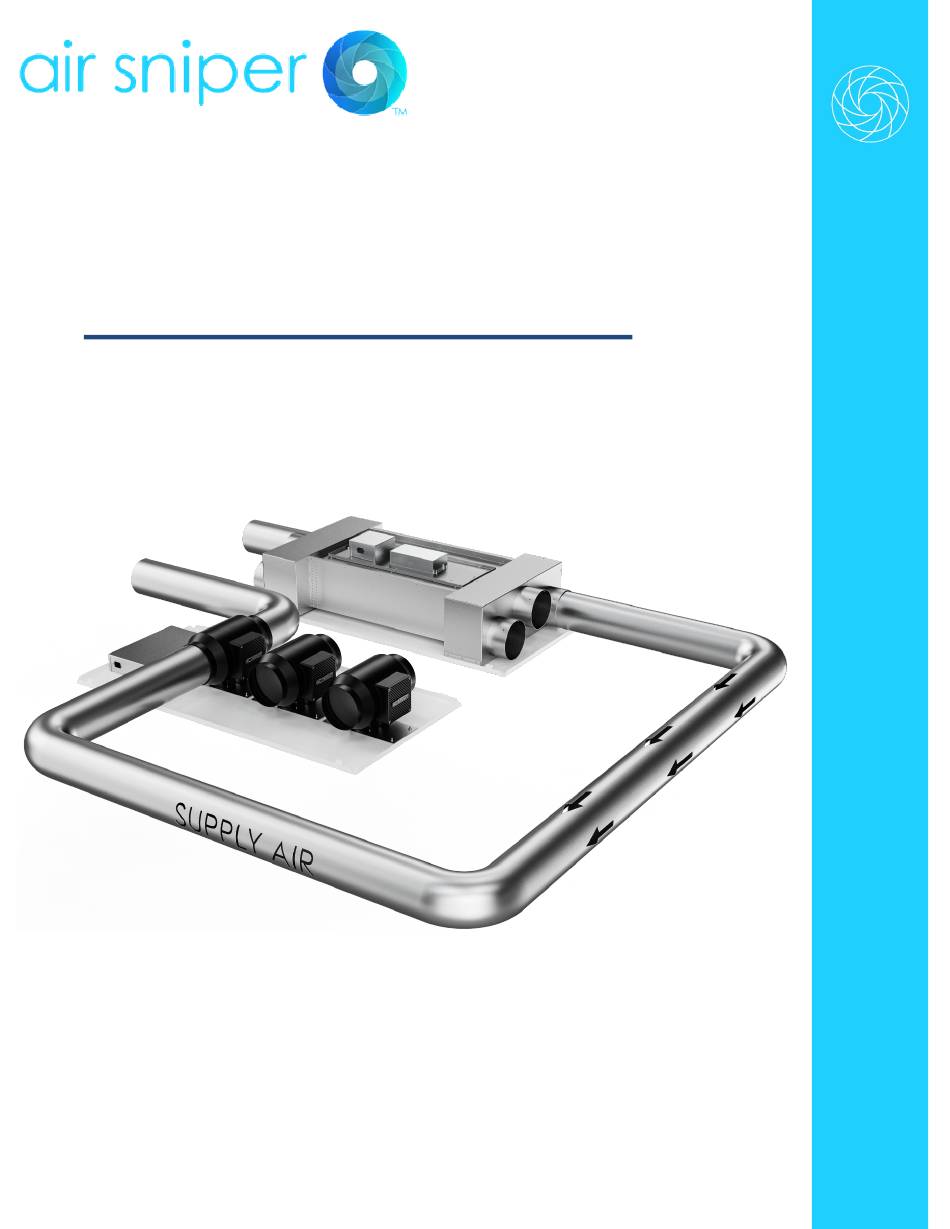

Page 1: Home Page
Air Sniper DCU-300 USER MANUAL...
Page 2: A Word To Air Sniper Owners
© AIR ALPINE INNOVATIVE RESEARCH INC. All rights reserved. This document is subject to change without notice. All Air Sniper trademarks and logos are owned by Air Sniper or one of its affiliates. Unless expressly noted, names and brands of third parties that may be used in this document are not used to indicate an affiliation or endorsement between the owners of these names and brands and AIR ALPINE INNOVATIVE RESEARCH INC.
Page 3: Table Of Contents
TABLE OF CONTENTS HOME PAGE ....................A WORD TO AIR SNIPER OWNERS ............. 2 TABLE OF CONTENTS ................. 3 IMPORTANT SAFETY INSTRUCTIONS ........ABOUT YOUR UNIT ..................5 DESIGN......................5 FEATURES ....................6 SPECIFICATIONS ..................6 INCLUDED PARTS ..................7 INSTALLATION ..................
Page 4: Important Safety Instructions
Failure to follow any instructions or labels may result in injury of the user or damage to the unit. Save this manual for future reference. The DCU-300 unit is intended to be used for The DCU-300 unit is not to be used by air sanitization inside of a sealed air chamber.
Page 5: About Your Unit

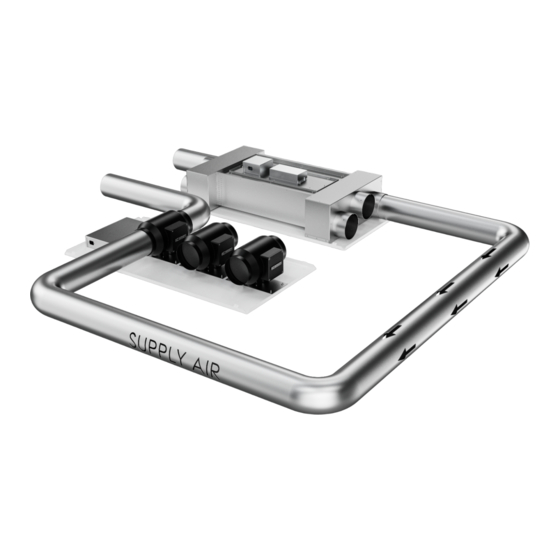

The DCU-300 unit is made up of several key components listed below. The DCU-300 unit is designed to be installed to allow for continuous sanitization of airflow up to 1,200 CFM. For greater airflow environments, multiple units may be necessary.
Page 6: Features
FEATURES - 300 Watt UV-C Induction Lamp - 6+ Year Lamp Life (55,200 Hours) - 3x Centrifugal In-Line Fan - Easy-Fit Ceiling Tile Mount - Plug & Play - Control Monitor - Bluetooth Enabled - Optional Motion Sensor SPECIFICATIONS Electrical Safety Certification Power Supply Field Certified Single Phase, 100v - 240v - A/C 50/60 Hz...
Page 7: Included Parts
INCLUDED PARTS Included in the package you will find: DCU-300 Lamp Assembly DCU-300 Fan Assembly AC Infinity Fan Manual 10’ Power Cable Lamp Assembly Fan Assembly Tel: 1-866-466-2592 Email: info@airsniper.ca Web: www.airsniper.ca EPA Facility Registration Number 100516-CAN-1...
Page 8: Installation
INSTALLATION To Install the DCU-300 unit: Remove from packaging a. Carefully remove your DCU-300 unit, 10’ power cable and AC Infinity Fan Manual from the packaging. b. Inspect the unit and all components, make note of any damage or defects that may have occurred during shipment.
Page 9 Prepare location for installation a. Prior to installation of either the lamp or fan assembly, be sure to note where the units will be mounted and where the air intakes and outputs are intended to be. This will determine the amount of aluminum air duct tubing necessary to complete installation.
Page 10 Installing the unit - Lamp Assembly a. Once a 24” x 48” opening in the ceiling has been prepared, drop the lamp assembly into the space. Lamp Assembly Assembly b. Secure the lamp assembly into the ceiling mount opening by connecting the support cables to the 4 connection points as detailed below.
Page 11 Verify that the desired intake and output aluminum duct tubing is also installed. b. The DCU-300 is supplied with a 10’ power cord with a standard male plug for connecting to a standard electrical outlet. The installer is responsible for connecting the 110 –...
Page 12: Installation Conclusion
When the “Lamp Operating” LED color is yellow indicating “Lamp Life Warning”, please contact your local distributor or an Air Sniper representative directly for a replacement. Tel: 1-866-466-2592 Email: info@airsniper.ca Web: www.airsniper.ca EPA Facility Registration Number 100516-CAN-1...
Page 13: Controller Diagram
CONTROLLER DIAGRAM Mode Button – Cycles through all of the controller’s modes. Up/Down Buttons – Adjusts the parameters of the mode or settings you are viewing. Setting Button – Cycles through all of the controller’s settings. PROGRAMMING MODES • OFF Mode – Set the device to turn off. •...
Page 14: Troubleshooting
Try increasing the airflow and/or fan speeds until it turns on. If the “Lamp Operating” LED is not able to illuminate at any airflow and/or fan speed please contact your Air Sniper representative at 1.888.338.9549 or email us at service@airsniper.ca. REPLACING YOUR UNIT Tel: 1-866-466-2592 Email: info@airsniper.ca Web: www.airsniper.ca...
Page 15: Replacing Your Unit
The DCU-300 unit uses a built in 300w UV-C lamp with a lifetime of 6+ years (55,200 hours, based on 24/7 operation). To track the life of the lamp on your unit, check the “Lamp Operating” LED colour when the unit is powered on to determine the state of your unit. It is strongly recommended that the unit be replaced when the “Lamp Life Warning”...
Page 16 Extended Warranty is available. Limited Warranty Five Year Warranty Alpine Innovative Research Inc. (AIR) warrants the Air Sniper™ unit to be free from defects in the workmanship or materials under normal use and service (the “Warranty”) for a period of three (5) years (the “Warranty Period”) from the date of purchase through an AIR-authorized...
