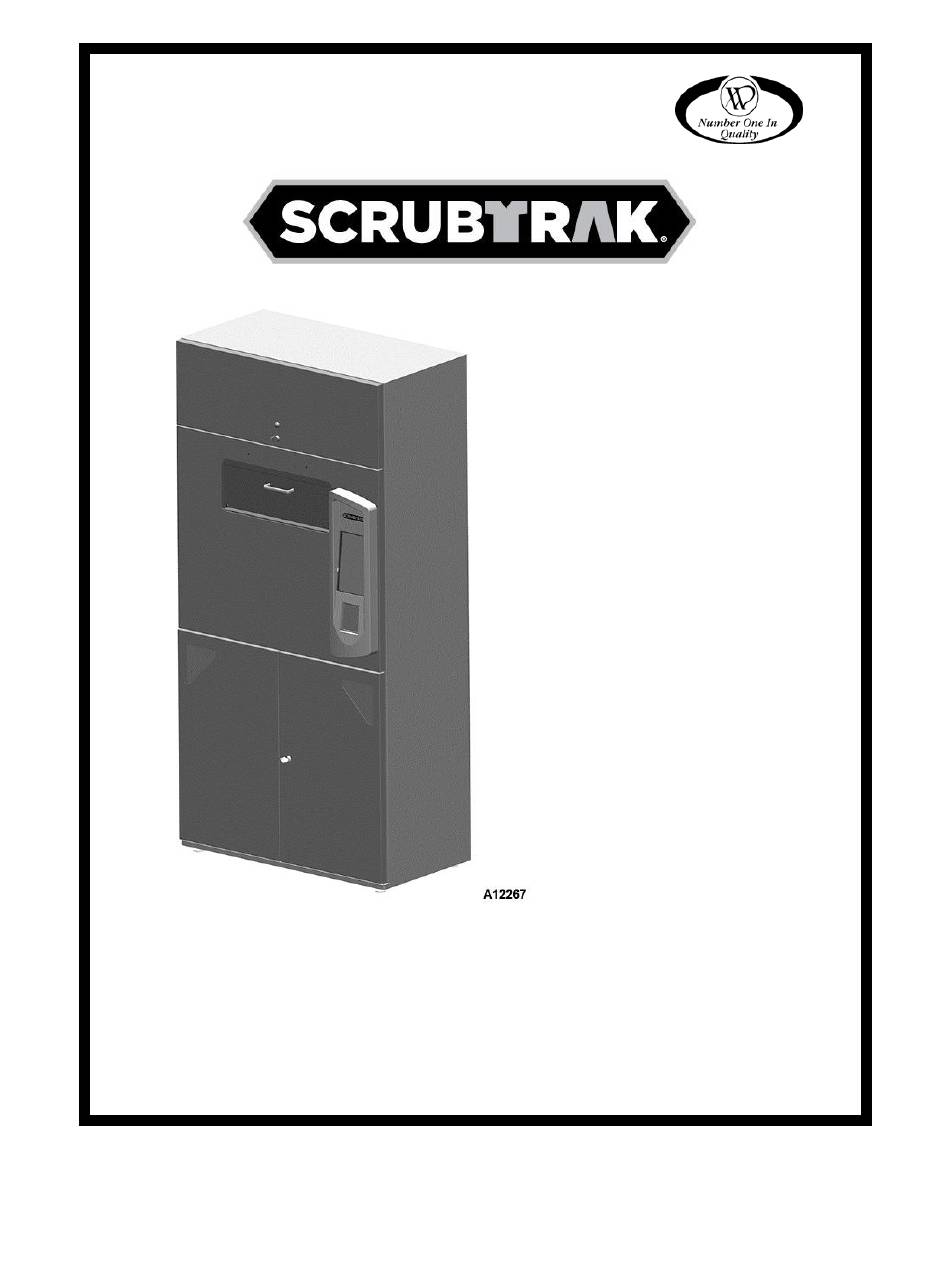

- Page 1 MODEL: 3599 – RETURN CENTER SERVICE MANUAL VendNet 165 North 10 Street Waukee, IOWA 50263-0488 United States of America JUN 2017 4225061•A...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ............................1 SPECIFICATIONS ............................2 DIMENSIONS ............................2 ELECTRICAL ............................2 MACHINE OPERATION ..........................2 UNPACKING ..............................2 INSTALLATION .............................. 3 GROUNDING (EARTHING) & ELECTRICAL.................... 3 CONTROLLER FUNCTIONS ......................... 4 DISPENSING MODE ..........................4 MAKE A SELECTION ..........................4 DISPENSE CYCLE ............................ -
Page 3: Introduction
Phone: (800) 833-4411 permitted only to individuals having knowledge and Parts Fax: (515) 271-8555 E-mail: vendnet@vendnetusa.com practical experience in machine setup and loading, www.VendNetUSA.com especially in the areas of safety and security. 4225059•A | SERVICE MANUAL | SCRUB TRAK | DISPENSER... -
Page 4: Specifications
Turn the leveling screws as far as possible. See Figure 1. NOTE: if the power supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified individual in order to avoid hazard. SCRUB TRAK | DISPENSER | SERVICE MANUAL | 4225061•A... -
Page 5: Installation
For proper operation of any equipment utilizing electronically controlled components, the equipment should be placed on an isolated, or dedicated, noise-free circuit properly polarized and grounded. Refer to Electrical Specifications in this manual to determine circuit amperage and protection. 4225059•A | SERVICE MANUAL | SCRUB TRAK | DISPENSER... -
Page 6: Controller Functions
60 seconds while in Service Mode, the controller automatically exits to the Sales Mode. TOUCH SCREEN Use the touch screen, and select the button to access that menu selection SCRUB TRAK | DISPENSER | SERVICE MANUAL | 4225061•A... -
Page 7: Quick Reference Chart
TEST MOTOR USD 3 TEST DROP SENSOR TEST LIGHT SENSOR MOTOR HOME TEST COMPACTOR CAMERA SETTINGS EXIT PROGRAM CONTROL BOARD Control Board: Power Box: Service Mode On/Off Switch Button Service Mode Button 4225059•A | SERVICE MANUAL | SCRUB TRAK | DISPENSER... - Page 8 Press in text box to change Alternate Host IP 168.215.88.21 (example) ALTERNATE HOST PORT Press in text box to change Alternate Host Port 80 (example) Press Back to Previous Page to exit to main menu Main Menu SCRUB TRAK | DISPENSER | SERVICE MANUAL | 4225061•A...
- Page 9 Press Service Mode Button Press Hardware Button HARDWARE MENU Press Test Motor to test vend Press Motor number to enter selection 42 Press Back to Previous Page to exit to main menu Main Menu 4225059•A | SERVICE MANUAL | SCRUB TRAK | DISPENSER...
- Page 10 Press First Motor text box to enter the First Motor (XX) ENTER FIRST MOTOR Press Second Motor text box to enter the Last Motor (YY) ENTER LAST MOTOR Press Back to Previous Page to exit to main menu Main Menu SCRUB TRAK | DISPENSER | SERVICE MANUAL | 4225061•A...
- Page 11 Programming steps are the same as MAIN MACHINE with the following exception: MOTOR RANGE will be 400 to 499. USD3 Programming steps are the same as MAIN MACHINE with the following exception: MOTOR RANGE will be 500 to 599. 4225059•A | SERVICE MANUAL | SCRUB TRAK | DISPENSER...
-
Page 12: Preventive Maintanence
“Left” or “Right” when used in the name or description of the part are determined while facing the front of the dispensing machine with the door closed. Order via E-mail to vendnet@vendnetusa.com; online at www.vendnetusa.com; phone at 1-800-833-4411; or fax at 1-515-271-8555. SCRUB TRAK | DISPENSER | SERVICE MANUAL | 4225061•A... -
Page 13: Before Calling For Service
Is the circuit breaker at the fuse box reset? NOTE: When you call, please have your Model and Serial Number available, and be in front of the machine so that we may assist you more accurately and completely. 4225059•A | SERVICE MANUAL | SCRUB TRAK | DISPENSER... - Page 14 We reserve the right to modify or improve the designs or specifications of such products at any time without notice. VendNet™ 165 North 10th Street Waukee, Iowa 50263 United States of America USA & Canada International Service (800) 833-4411 (515) 274-3641 Parts (888) 259-9965 vendnet@vendnetusa.com Email www.vendnetusa.com Web Site SCRUB TRAK | DISPENSER | SERVICE MANUAL | 4225061•A...
