Minerva 5565 Assembly Instructions

Assembly Instructions
Callaway Shampoo Bowl
Model 5565
!! Safety and Warranty Information !!
A LICENSED PLUMBER MUST PERFORM ALL INSTALLATION
FOR PLUMBING AND ALL PLUMBING-RELATED EQUIPMENT.
FAILURE TO DO SO WILL VOID THE WARRANTY.
AT NO TIME SHOULD ANY PRODUCT CONTAINING BLEACH OR
BARBICIDE BE USED TO CLEAN OR SANITIZE ANY OF THE
SHAMPOO SINKS. SUCH PRODUCTS MAY CAUSE THE
BREAKDOWN OF SEALS AND RESULT IN LEAKING.
DOCUMENTATION OF INSTALLATION BY A LICENCSED PLUMBER
MUST BE PROVIDED TO MINERVA BEAUTY, INC.
FOR ALL PLUMBING RELATED WARRANTY ISSUES.
WWW.MINERVABEAUTY.COM/MAINTENANCE.HTM
For Minerva Beauty Callaway and
Cumberland Shampoo Bowls.
Cumberland Shampoo Bowl
Model 5560
Cumberland Bowl 1x
- OR - - OR -
Callaway Bowl 1x
Valve 1x
Faucet Washer 1x
Mounting Bracket 1x
Bracket Screws 5x
Camber Bolt 1x
Camber Nut 1x

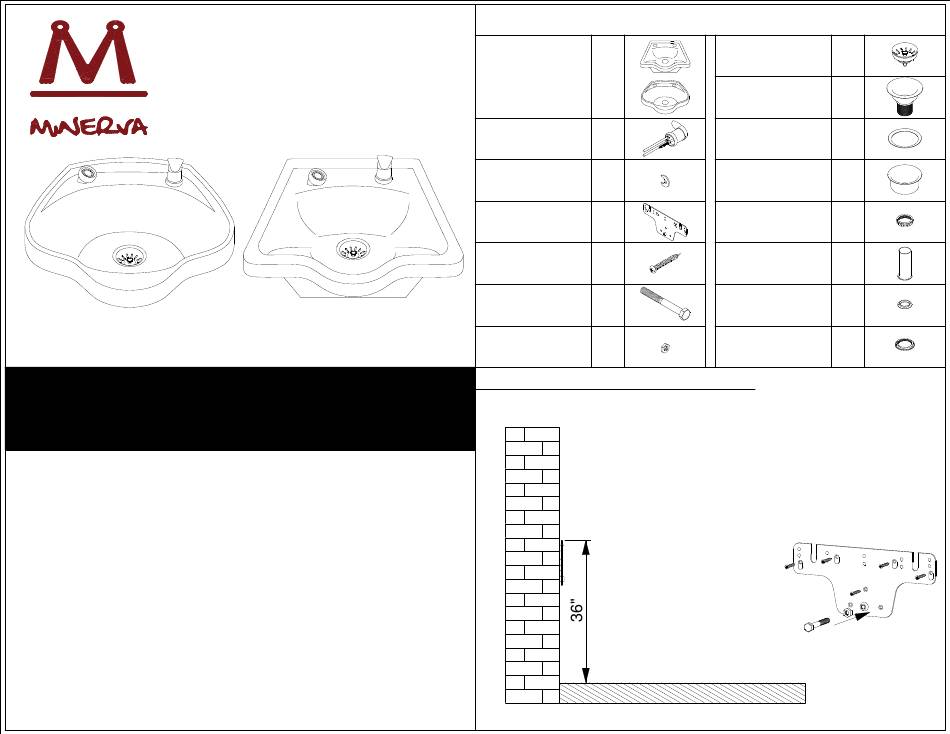

1 - Bracket Installation
Align the bracket against the wall such that the top of the bracket
is approximately 3' (36") off the floor.
Use the 5 included screws as shown to affix the bracket to the wall.
Screws should be anchored into studs where available, or anchors
for the appropriate material otherwise (not provided).
Use the 5 screws for the
holes shown here.
Screw the camber nut over the bolt,
then the bolt into the bracket .
Parts List
Strainer Basket 1x
Drain 1x
Rubber Washer 2x
Drain Cover 1x
Brass Locknut 1x
Tail Pipe 1x
Tail Washer 1x
Brass Slipnut 1x
