Summary of Contents for Smart Start SSI-2035

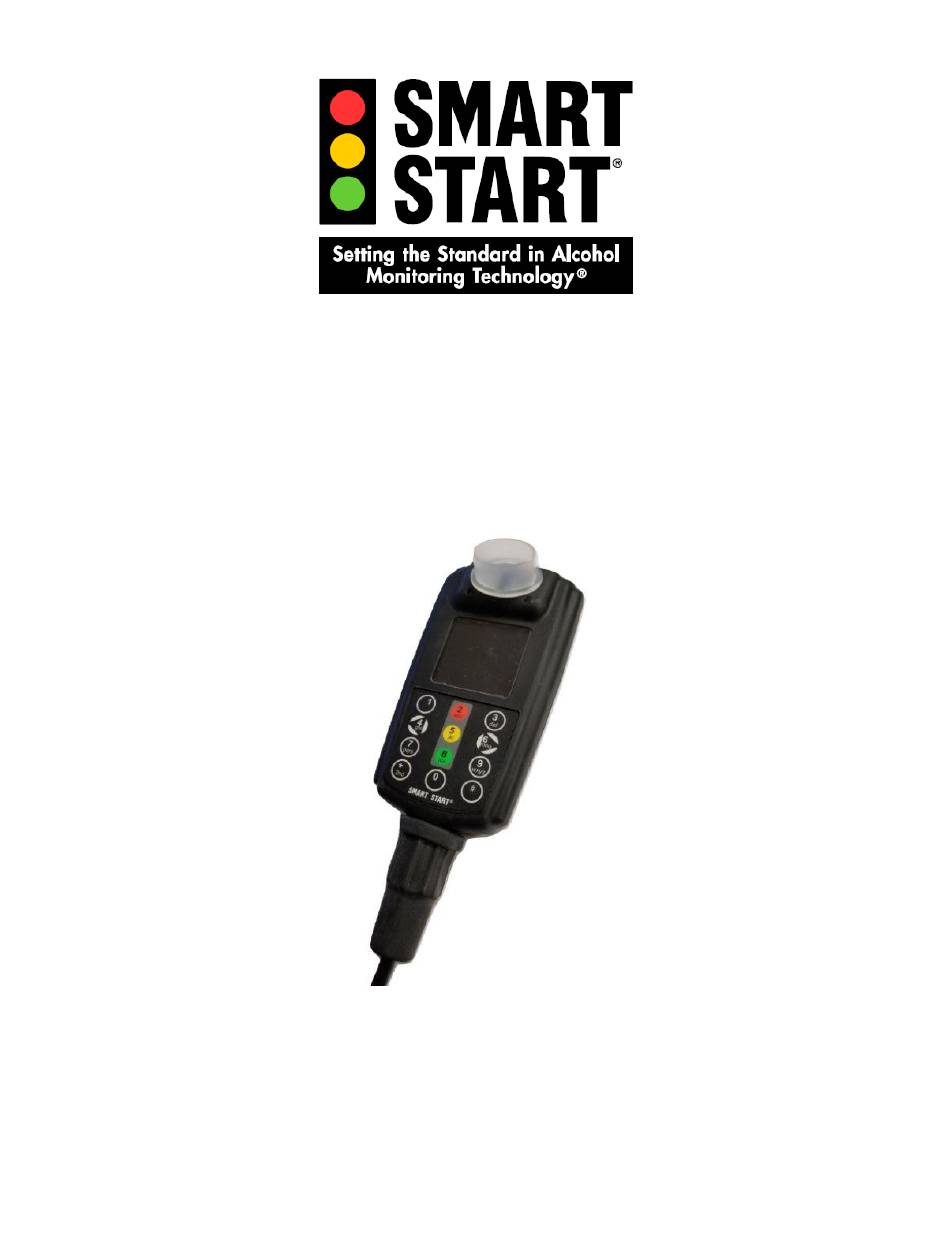

- Page 1 SSI-2035 User Manual Rev. January-2018...
- Page 2 Smart Start is a trademark of Smart Start, LLC. All other trademarks used herein are the property of their respective owners and are used for identification purposes only.
-
Page 3: Table Of Contents
Cleaning Cautions ..............6 Other Cautions ..............6 Description ................7 Parts Listing ................. 7 SSI-2035 Operations ..............8 Mouthpiece Installation............8 Mounting Clip for the Head Unit..........9 Mouthpiece Cover ............10 How to Take a Test ............11 Post-Test Results ............ -
Page 4: Fcc Statement
Smart Start LLC SSI-2035 User Manual FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Safety
Such changes and/or additions invalidate any or all warranty of the device or vehicle. To protect against electrical shock and fire, maintain a secure connection of all components to the SSI-2035. Do not cut any cables connected to the SSI-2035 as this could result in electrical shock or fire. -
Page 6: Handset Mount
Smart Start LLC SSI-2035 User Manual Handset Mount You have been provided with a handset mount to keep your device within easy reach and out of harm’s way. If your mount needs replacing, contact our service personnel and we will provide a new one. -
Page 7: Description
SSI-2035 User Manual Description The SSI-2035 is a breath-alcohol ignition interlock device which requires the user to take and pass a breath test before the vehicle will start. If the breath alcohol concentration of the breath sample submitted is at or above the preset fail level, the vehicle will not start. Only breath alcohol concentrations below the pre-set fail level will allow the vehicle to be started. -
Page 8: Ssi-2035 Operations
Keyed Slot for mouthpiece Figure 2 Mouthpiece Installation The mouthpiece has a key along its underside. Align the key with the slot on the SSI-2035 and insert the mouthpiece until it is fully seated against the body of the 2035. Figure 3 Mouthpiece Key Rev. -
Page 9: Mounting Clip For The Head Unit
Smart Start LLC SSI-2035 User Manual Figure 4 Properly Inserted Mouthpiece Mounting Clip for the Head Unit The mounting clip us used for placing the Head Unit on the dash of the vehicle. This ensures several things: • Keeps the Head Unit a position that is easily accessible to the driver •... -
Page 10: Mouthpiece Cover
SSI-2035 User Manual Mouthpiece Cover To protect the mouthpiece from dust, dirt and moisture, the SSI-2035 is supplied with a mouthpiece cover. The mouthpiece cover should be place on the mouthpiece whenever the head unit is not being used to perform a breath test. -
Page 11: How To Take A Test
Smart Start LLC SSI-2035 User Manual How to Take a Test If you are the driver of the vehicle, letting someone else take a test for you is a program violation. Use a clean mouthpiece for each test. Before taking a test: 1. -
Page 12: Re-Tests
Smart Start LLC SSI-2035 User Manual • DON’T INHALE - Unit is detecting air flow going the opposite way in the unit, normally appears when a tester blows right before the unit actually displays BLOW or if the tester is inhaling to close to the mouthpiece. -
Page 13: Lockouts
Smart Start LLC SSI-2035 User Manual Lockouts Per state requirements the device can trigger a lockout for several reasons. The different type of lockouts is listed below. The grace period leading up to the permanent lockout will differ from state to state. -
Page 14: Unlock Codes
You are responsible for the tow bill if the problem is not unit related. Please contact your local service center for a phone number to a preferred towing company in your area. Towing costs which exceed $100 MUST be arranged through the Smart Start service center manager. Unlock Codes A Remote Unlocking service is available if your unit goes into a lockout and you cannot get to a service center. -
Page 15: Displayed Messages And Troubleshooting Guide
Smart Start LLC SSI-2035 User Manual Displayed Messages and Troubleshooting Guide Displayed Message LEDs Description Action PLEASE WAIT The unit is preparing for a breath test. Wait until unit displays BLOW. BLOW The unit is ready to accept a breath test. -
Page 16: Table 1 Displayed Messages & Troubleshooting Guide
Table 1 Displayed Messages & Troubleshooting Guide For all further questions, please contact your local service center, Smart Start Customer Service or visit www.smartstartinc.com and go to the Information for Clients – Product Support page. Rev. January-2018... -
Page 17: Maintenance
Smart Start will check the calibration of the interlock at every service. Disposal of the device The SSI-2035 must not be disposed of using common household disposal methods. The device can be returned to Smart Start, LLC or a Smart Start, LLC authorized service center. Please contact Smart Start, LLC Customer Service at 1-800-880-3394 for further information. -
Page 18: Service And Support
Service and Support Customer Service Contact Information Contact Smart Start Customer Service at 1-800-880-3394 and a live person will help you 24/7/365. If you leave a message, be sure to include your area code, phone number, and full name so that we can return your call. -
Page 19: Technical Data
Maximum: < 4 A Stand-by: < 5 mA Control Outputs 15 A continuous 40 A peak Certifications NHTSA Model Specifications for BAIIDs: 2013 CSA Z627-16: 2016 EN 50436-1:2014, EN 50436-2:2014 E-Mark Table 2 SSI-2035 Technical Data Rev. January-2018 Page 19... -
Page 20: Ignition Interlock Client Checklist
I have ___ minutes to complete the rolling re-test. ____ I understand that I must call Smart Start before having services performed on my vehicle so that we may educate the mechanic on how to work with the device. -
Page 21: Read And Understood
Smart Start LLC SSI-2035 User Manual Read and Understood It is required by your Monitoring Authority that you sign and date the form below to indicate that you have read this document and understand it. Your signature on the form below verifies that you have read this manual and understand its contents.
