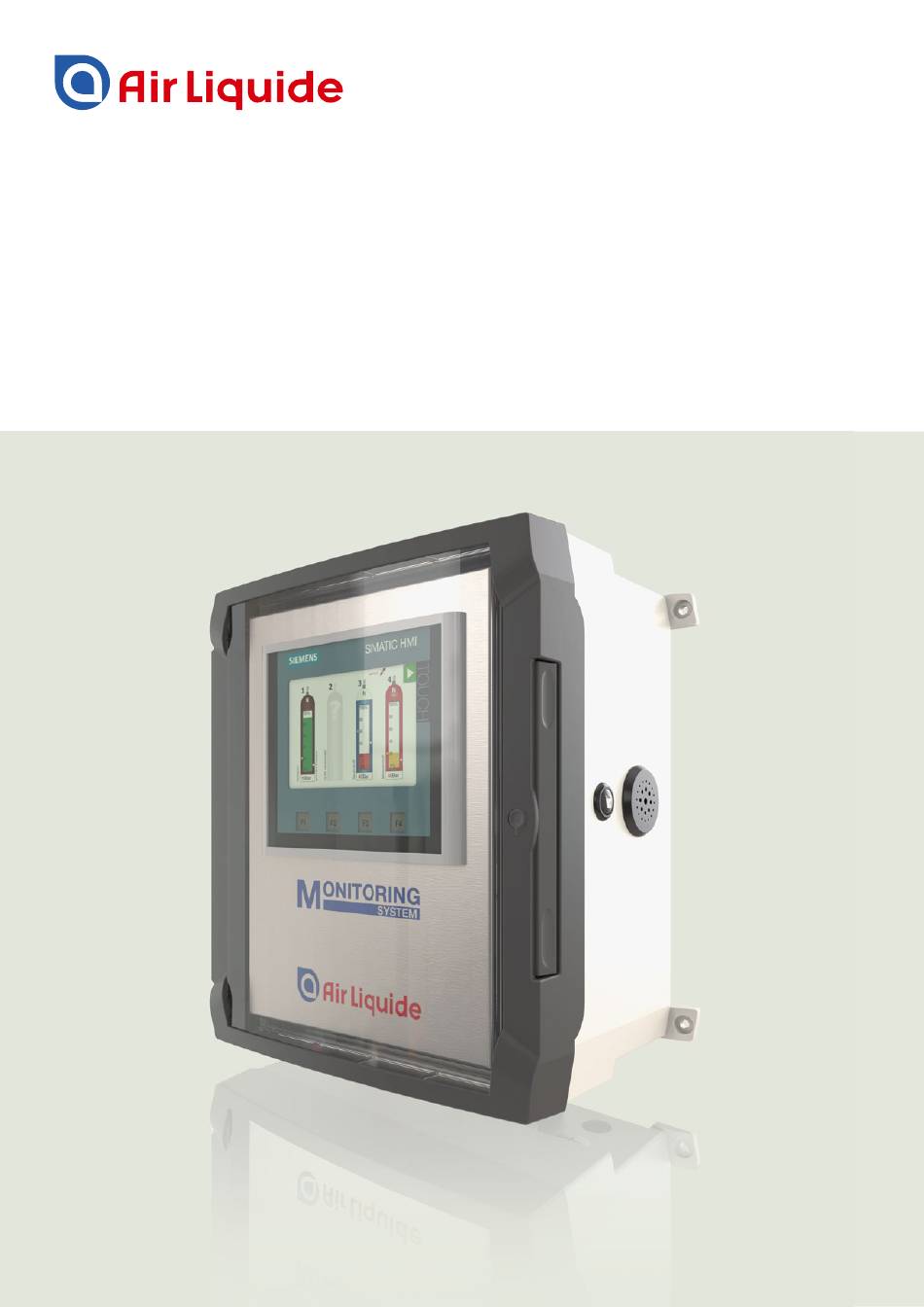

  • Page 1 Monitoring System ALMS Instruction manual...

  • Page 2: Table Of Contents

    Consumption Measurement 10.2 Pressure test Device setup / Basic settings 11.1 Language 11.2 Info 11.3 Time 11.4 Password 11.5 Set alarm volume Care and Maintenance Disposal Technical Data Product overview AIR LIQUIDE Monitoring System Spare parts and options for ALMS Documents Wiring diagrams...

  • Page 3: User Notifications

    2 User notifications 2.1 Warning / Danger symbols 2.2 Symbol explanations These notes identify hazards that could result The following symbols are used in these instructions: in moderate or minor injury if not avoided. Perform actions in a specific order: 1.

  • Page 4: General Information

    Air Liquide Monitoring System Our „General Sales and Delivery Conditions“ apply as a rule. ALMS. In this notice, the monitoring system is called the This is made available to the user at the latest at the time of ALMS.

  • Page 5: Safety Instructions

    5 Identification 5.1 Name plate On the right side of the ALMS, you can find a type plate with information about: Manufacturer, type, serial number, power supply, temperature range, IP protection, CE marking, and Ex marking (if the de-...

  • Page 6: Use

    6.1 Function 6.2 Use in hazardous areas The ALMS is a permanent, continuously operating control The ALMS EX model series may only be con- unit for transmitter to monitor the contents of pressurized nected to the pressure sensors of the compa- containers.

  • Page 7: Installation

    Check equipment immediately after unpacking for any visible • Heat (heater or direct sunlight) damage. If damage is evident, please contact the distributor. Delivery includes: • ALMS monitoring system • 4 x wall mount • Instructions 7.2 Wall mounting 7.2.1 Wall mounting without bracket...

  • Page 8: Create Mains Connection

    7.3 Create mains connection 7.5 Sensor connection for Ex models Connection of the mains The monitoring system ALMS may only be in- power supply is made to stalled in non-explosion hazard area! the designated terminals. The pressure transmitters are connected di- rectly to the Zener barriers.

  • Page 9: Alarm Contact Output (Optional)

    7.6 Alarm contact output Alarm output for use as a connection to further signaling systems such as sirens, flash lamps, or alarm messages to up- stream systems. Contact indicates a violation of the alarm limits or a broken cable in the sensors. Floating switchover contact: Contact load max.

  • Page 10: Enter Basic Values

    8.2.3 Warning and alarm limits 100% Left arrow displays Right arrow displays warning limits. alarm limits. 18Bar 8.2.4 The absolute tank pressure is displayed at the bottom of the bottle. 18Bar 18Bar 8.3.3 The alphanumeric keypad appears when entering text. Key “123“...
  • Page 11 SIMATIC HMI 8.4.2 If the term “not used” is entered under If the value entered in the field “Fl. pressure” „Gas type“ this channel is considered is higher than the value of the sensor type, the unused. No further values can be en- input will not be accepted.

  • Page 12: Installation Step By Step

    • Only route through blue cable gland • Connect directly to Zener barrier Pay attention to polarity! 8.11.2 Supply the ALMS with voltage and wait until the the device responds with the language selection. Select the language and continue with the green ar- row key to the info screen.
  • Page 13 Cyl. pressure Enter the pressure of the cylinder or bundle as specified by Air Liquide. Example: Enter “300 bar”, then the max. bottle content is cal- culated to 300 bar. The pressure inside the bottle is set to 300 bar for 100 % and is displayed according to the cylinder content.

  • Page 14: Operation

    9 Operation SIMATIC HMI 9.1 Level indicator and alarm 9.2 Bottle change – Alarm clearing 9.1.1 The level of the bottle will be dis- played as an actual pressure value (in bar) at the bottom of the bottle symbol. 100% 100% 100% 18Bar...

  • Page 15: Alarm Indicator / Alarm Window

    Meldungen - Behobene Stoerungen quittieren ! Keine / schlechte Mobilfunkverbindung ! Flasche 7: Stoerung Druckfuehler! Flasche 5: Stoerung Druckfuehler! Flasche 3: Stoerung Druckfuehler! 9.3 Alarm indicator / Alarm window 9.3.4 Errors are displayed in the message window. Flasche 1: Stoerung Druckfuehler! •...

  • Page 16: Additional Functions

    10 Additional functions 10.1 Consumption Measurement “Today“ is always reset at 00:00:00 AM. All three “Consumption“ meters are free counters that can be Clicking the button “Consumption“ takes you to the corre- reset at any time. It also displays when the consumption sponding submenu.
  • Page 17 SIMATIC HMI The fields shown in the window have the following meaning: Test Pressure hold test 10 min Enter test duration: 194.87 Bar Actual pressure: 100% Test – Start 196.21 Bar Starting pressure: 9,2 min Remaining time: -1.34 Bar Pressure change: Test is running...

  • Page 18: Device Setup / Basic Settings

    11 Device setup / basic settings 11.1 Language 11.3.3 The current time is displayed in the field above. The time is used to store the reset time-point of consump- Press the F1 key to go from any screen in the device tion meters.

  • Page 19: Set Alarm Volume

    Cancel Login / Logout 12 Care and Maintenance 13 Disposal Do not clean the ALMS using solvents or harsh Do not dispose of the device or its accessories via cleaning products. household refuse. Take to a recycling station for electronic or electrical waste.

  • Page 20: Technical Data

    14 Technical Data Technical documents on request 85 to 264 V AC, 47 to 63 Hz Line voltage 180 mA at 120 V AC Performance recording 90 mA at 240 V Ac -10 °C to 60 °C Operating environment temperature IP65 Protection type Typ 250 264 x 234 x 144 mm (height x width x depth) Typ 310 324 x 289 x 145 mm (height x width x depth) Measurements for plastic wall housing...

  • Page 21: Product Overview Air Liquide Monitoring System

    Several sensor lines may be routed in one master cable: Do not include live lines in the trunk cable and do not install them in parallel. 15 Product overview AIR LIQUIDE Monitoring System Device component /...

  • Page 22: Spare Parts And Options For Alms

    Front hinged lid, clear for ALMS series in graphite gray, 78005143 size 310 with view window, size 310 Wall holder for ALMS series in light gray, for fixation of display 78005144 Fixation set terminal for mounting the display terminal without opening the enclosure.

  • Page 23: Documents

    17 Documents...

  • Page 24: Wiring Diagrams

    4 - 20mA 4 - 20mA 4 - 20mA 4 - 20mA Drawing No.: 78005107 Rev. 3 18.2 ALMS 4K + AK + GPRS wiring diagram ALMS 4K + AK + GPRS Wiring diagram GPRS SIEMENS S7 1200 Alarm -...
  • Page 25 4 - 20mA 4 - 20mA 4 - 20mA 4 - 20mA Drawing No.: 78005111 Rev. 3 18.4 ALMS 8K + AK + GPRS wiring diagram ALMS 8K + AK + GPRS Wiring diagram SIEMENS GPRS S7 1200 Alarm -...
  • Page 26 4 - 20mA 4 - 20mA 4 - 20mA Drawing No.: 78005114 Rev. 3 18.6 ALMS 2 / 2K Ex + AK + GPRS wiring diagram ALMS 2/2K Ex + AK + GPRS Wiring diagram GPRS SIEMENS S7 1200 Alarm -...
  • Page 27 4 - 20mA 4 - 20mA 4 - 20mA Drawing No.: 78005118 Rev. 3 18.8 ALMS 2 / 6K Ex + AK + GPRS wiring diagram ALMS 2/6K Ex + AK + GPRS Wiring diagram GPRS SIEMENS S7 1200 Alarm -...
  • Page 28 4 - 20mA 4 - 20mA 4 - 20mA Drawing No.: 78005122 Rev. L 18.10 ALMS 6 / 2K Ex + AK + GPRS wiring diagram ALMS 6/2K Ex + AK + GPRS Wiring diagram GPRS SIEMENS S7 1200 Alarm -...
  • Page 29 4 - 20mA 4 - 20mA 4 - 20mA 4 - 20mA Drawing No.: 78005125 Rev. 3 18.12 ALMS 4K Ex + AK + GPRS wiring diagram ALMS 4K Ex + AK + GPRS Wiring diagram SIEMENS GPRS S7 1200 Alarm -...
  • Page 30 4 - 20mA 4 - 20mA 4 - 20mA Drawing No.: 78005129 Rev. 2 18.14 ALMS 4 / 4K Ex + AK + GPRS wiring diagram ALMS 4/4K Ex + AK + GPRS Wiring diagram SIEMENS GPRS S7 1200 Alarm -...
  • Page 31 4 - 20mA 4 - 20mA 4 - 20mA 4 - 20mA Drawing No.: 78005133 Rev. 3 18.16 ALMS 8K Ex + AK + GPRS wiring diagram ALMS 8K Ex + AK + GPRS Wiring diagram GPRS SIEMENS S7 1200 Alarm -...
