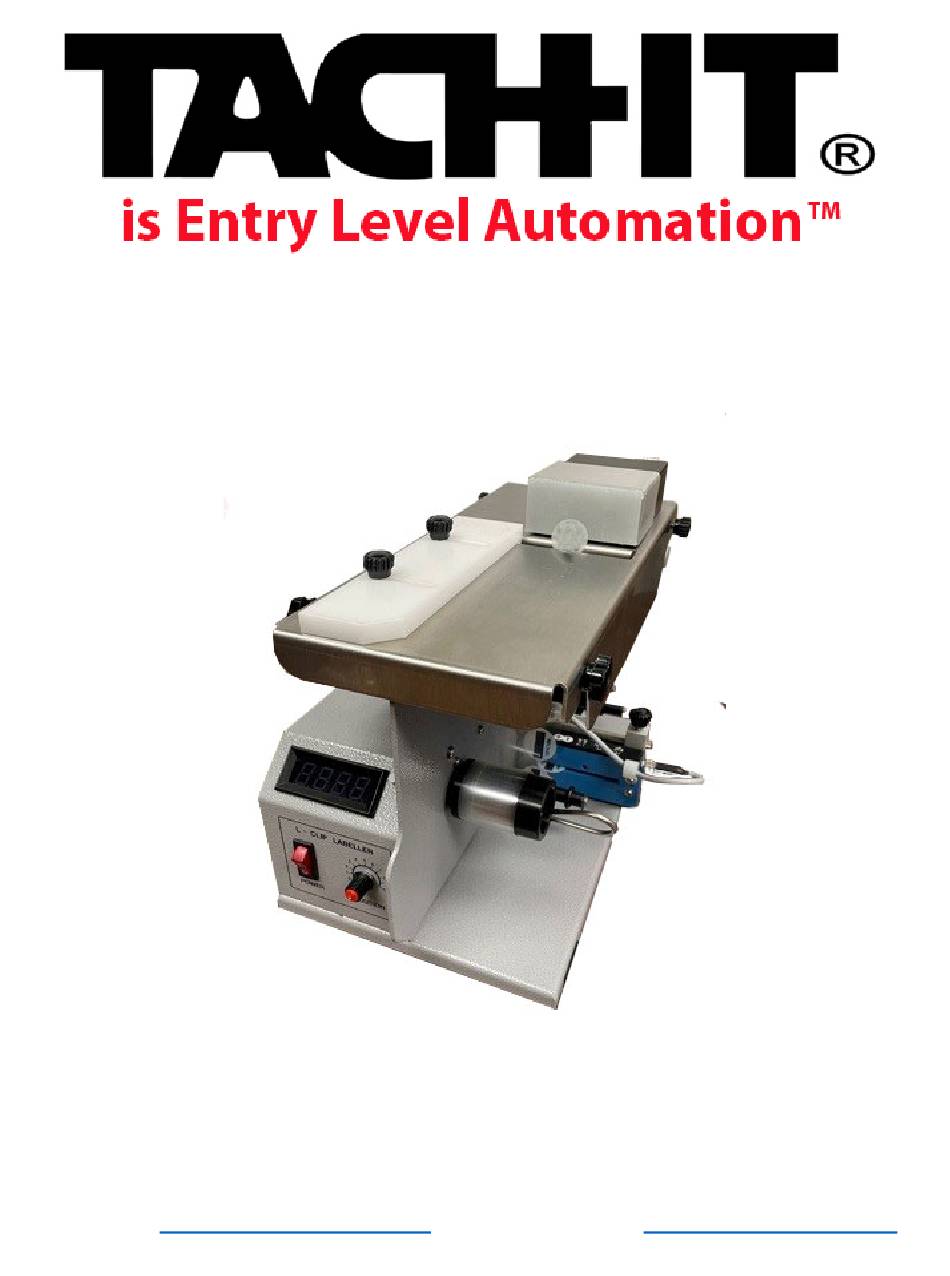

Setup and Instruction Manual for Tach‐It
Model #6510‐TL L‐Clip Label Applicator
Ben Clements and Sons, Inc.
50 Ruta Court, South Hackensack, New Jersey 07606 USA
Tel: 201‐440‐5500 or 800‐222‐5540
Email: sales@tach‐it.com Website: www.tach‐it.com
All Information in this manual is the property of Ben Clements and Sons, Inc.
Ben Clements and Sons, Inc. Tach‐It, Tach‐It is Entry Level Automaton are all trademarks of Ben Clements and Sons, Inc. Dec. 2022
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tach-It 6510-TL
Summary of Contents for Tach-It 6510-TL
- Page 1 Setup and Instruction Manual for Tach‐It Model #6510‐TL L‐Clip Label Applicator Ben Clements and Sons, Inc. 50 Ruta Court, South Hackensack, New Jersey 07606 USA Tel: 201‐440‐5500 or 800‐222‐5540 Email: sales@tach‐it.com Website: www.tach‐it.com All Information in this manual is the property of Ben Clements and Sons, Inc. Ben Clements and Sons, Inc. Tach‐It, Tach‐It is Entry Level Automaton are all trademarks of Ben Clements and Sons, Inc. Dec. 2022 ...
- Page 2 Cautions: Before operating this machine make sure to read and understand the complete instruction manual. Never have the power cord of this machine plugged into an outlet when any covers or the top of this machine have been removed. Install and operate this machine only on a flat, level and dry surface. Use only the specified electrical power input with this machine. Always turn the power off and unplug this machine prior to clearing any label or label jams from the machine, particularly in the feed path and mechanisms. Always keep hand, clothing, jewelry and hair away from all moving parts of this machine. Never put hands or any other part of the body or any other item into the working mechanisms of this machine, unless the machine is off and the power has been unplugged. Never operate this machine with any of the safety covers removed. Never operate this machine after drinking or taking medication or drugs that can cause drowsiness and or reduce any physical or mental function. Keep this machine clean and dry at all times. Service on this machine should only be performed by factory trained authorized service personnel. ...
-
Page 3: Specifications
Overview of Tach‐It Model #6510‐TL: The Tach‐It Model #6510‐TL is a tabletop L‐Clip Label Applicator. Once loaded with the labels to be applied to the product, an operator simply places the box to be sealed onto the top plate moving it forward against the Pressure Plate for Actuation. This action applies the label from the side to the bottom of a box. Utilizing a state‐of‐the‐art non‐contact Label Sensor, the Tach‐It Model # 6510‐TL detects the gap between labels. As the gap is required, the labels must be die‐cut. The normal gap is 3mm or 1/8”. Because of the sensor being used, unlike other machines, our Model #6510‐TL does not black lines printed on the liner. Easy to setup and use, the Tach‐It Model #6510‐TL will securely seal chipboard, tuck and many other types of boxes. Labels can be round and clear (this type of label is often called a wafer seal) or other shapes and materials of labels. The Label Sensor can detect all types of transparent and opaque labels. 11” 19.75” 8” Specifications: ... -
Page 4: Parts Identification
Parts Identification: Figure 1 ‐ Front View: Pressure Pad for Actuation Adjustable Product Guide Top Plate Counter Reset Button – Hold for 5 seconds to reset counter. Digital Cycle Counter Label Sensor U‐Pin On/Off Power Switch Label Length Control ... - Page 5 Figure 2 ‐ Right Side View: Top Plate Thumb Screw Pressure Pad for Top Plate Actuation Top Plate Thumb Brass Separator Plate Screw Adjustment Thumb Screw Brass Separator Plate Top Urethane Label Roll Shaft Pressure Plate Spring Collar Label Roll Guides U‐Pin Label Waste Lower Urethane Label Sensor Rewinder Pressure Plate Label Sensor Adjustment Label Sensor Adjustment In and Out Forward and Back ...
- Page 6 Figure 3 ‐ Back of Machine View: Label Roll Guide Label Roll Guide Product Guide Top Plate Voltage Dip Label Roll Switch (optional) Shaft IEC Power Input and Spring Collars Fuse Holder Motor Box Top Plate Label Sensor Thumb Screws Figure 4 – Top View: Product Guide Thumb Screws ...
- Page 7 Assembling the 6510‐TL: 1) Unpack the Model #6510‐TL and all accessories and place them onto a flat, level, dry surface that allows full access to all sides of the machine. 2) The Label Roll Arm will be packed separately and must be attached to the main frame of the Model #6510‐TL. Please see Figure 5 below: Figure 5 – Label Arm Assembly: Spring Collars Label Roll Guide Main Frame Label Roll Shaft Label Roll Arm Label Sensor Label Roll Screws (3 Arm each) 3) To attach the Label Roll Arm, unpack it from any protective packaging and there will be 3 screws located on the arm. Remove these 3 screws with a Phillips head screwdriver. ...
- Page 8 Feeding the Labels on the Tach‐It Model #6510‐TL: Figure 6 – Label Feeding Diagram Highlighted: Figure 7 – Label Feeding Diagram Showing Labels: Lower Urethane Pressure Plate Black Roller Shafts ...
- Page 9 Feeding the Labels on the Tach‐It Model #6510‐TL Continued: Please see Figure 2, Figure 6 and Figure 7 for diagrams on the feeding of the labels into the Tach‐It Model #6510‐TL 1) The Label Roll Guides have 3‐inch core inserts fastened into them. Confirm that the Label Roll Guide placed onto the Label Roll Shaft has the 3‐inch core insert facing away from the Main Frame. 2) Place the roll of labels onto the Label Roll Shaft and against the Label Roll Guide. Ensure that the 3‐ inch core insert goes into the core of the label roll. The labels should be feeding from the top of the roll of labels and when the leading edge of the label liner is pulled, the label roll will rotate in a counterclockwise direction. 3) Place the 2 Label Roll Guide onto the Label Roll Shaft so that the 3‐inch core insert goes into the core of the label roll and secure with the Spring Collar. Do not press tight with the Spring Collars. This will cause tension on the label roll during operation of the machine. The Spring Collars should be snug against the label roll so that there is no lateral movement of the label roll along the Label Roll Shaft. If the labels to be used on the Model #6510‐TL are on a 1” core, simply reverse the Label Roll Guides so that the 3‐inch cores are facing away from the roll of Labels and secure with the Spring Collars. 4) Take the leading edge of the label liner and feed it between the Lower Urethane Pressure Plate and the Black Roller Shaft. See Figure 7. 5) Continue taking the leading edge of the label liner towards the Label Waste Rewinder and around the second Black Roller Shaft. Make sure that the label is going through the slot in the middle of the Label Sensor, See Figure 9. 6) Continue feeding the leading edge of the label liner to the Brass Separator Plate. Keeping the label liner against the bronze Separator Plate continue feeding it upward between the Brass Separator Plate and the Top Urethane Pressure Plate and over the top of the Brass Separator Plate. 7) Folding the label liner over the beveled portion of the Brass Separator Plate, take the label liner over the 3 Black Roller Shaft and to the Label Waste Rewinder. Using the U‐Pin that was unpacked during the assembly of the Model #6510‐TL, secure the label liner to the Label Waste Rewinder. Move the O‐Rings located on the Black Roller Shafts against the label liner. 8) The labels are now threaded correctly. 9) Both the Lower Urethane Pressure Plate and the Top Urethane Pressure Plate have thumb screws ...
- Page 10 Setting up of the Label Sensor and Label Position: The sensor used on the Model #6510‐TL is specifically designed to detect clear labels without any black indicator lines printed on the label liner. If the labels being used have the black line marks or are opaque, it is not a problem due to the state‐of‐the‐art Label Sensor used on this machine. Figure 8 – Label Sensor Top View: Yellow Indicator Light – Red Indicator Light – Not When Illuminated Illuminated in this photo “+” Button – Increases Sensitivity of Sensor “‐” Button – Decreases Sensitivity of Sensor Figure 9 – Label Sensor Side View: Slot in Sensor that the labels must be inserted through for label detection. Embossed Line – This is the detection point within the ...
- Page 11 1) See Figure 2 of this manual. On the actual machine locate the Label Sensor and the Label Sensor Adjustment In and Out and The Label Sensor Adjustment Forward and Back assemblies. 2) Confirm that the labels are fed through the slot located in the Label Sensor. See Figure 9. See previous section of this manual Feeding the Labels if necessary. 3) On the Label Sensor towards the opening of the slot is a line embossed into the body of the Label Sensor. See Figure 9. Loosen the Label Sensor Adjustment In and Out thumbscrew and move the Label Sensor along the shaft so that the embossed line is as close to the center of the label as possible. 4) Locate the “+” and “–“buttons on the top of the Label Sensor. See Figure 8. There are LED indicator Lights next to the “+” button on the Label Sensor that will illuminate when there is power to the machine. These LED Indicator Lights will assist and help with setting the sensitivity of the Label Sensor. See Figure 8. 5) Plug the Power Cord into a properly grounded and surge protected electrical outlet of the proper voltage. Turn the machine on using the On/Off Power Switch, See Figure 1. 6) Hold the label liner and move the labels forward and back so that labels are traveling completely through the slot in the Label Sensor. Ensure that at least 2 or 3 labels are traveling completely through the width of the Label Sensor. See Below and see Figure 8 on the previous page: a. When a gap between the labels is within the slot of the Label Sensor, a Yellow Indicator Light should illuminate. If this is not happening, press the “+” button on the Label Sensor 2 or 3 times. Test again by moving 2 or 3 labels through the Label Sensor and see if the Yellow Indicator Light illuminates. If not repeat the above until the Yellow Indicator Light illuminates when the gap in the label is within the slot of the Label Sensor. b. Sometimes the Label Sensor may be set too sensitive. To check this, move the labels through the gap in the Label Sensor. If the Yellow Indicator Light illuminates at any place on the label that is not the gap between the labels, the Label sensor is too sensitive. Press the “–“ button on the Label Sensor 2 or 3 times and move a few labels through the sensor and ensure the Yellow Indicator Light only illuminates at the gap between the labels. If the Yellow Indicator light is still illuminating when the label is within the slot of the sensor, repeat the above by pressing the “–“ button 2 or 3 times and test again. Continue this step until the Yellow Indicator Light only illuminates at the gap between the labels. If there is printing on the label, the Label Sensor may detect the ink layer on the label. If possible, find a path within the label with no printing and using the Label Sensor Adjustment In and Out, align the line embossed in ...
- Page 12 8) To set the Label Sensor Adjustment Forward and Back, confirm that a label is fed halfway up the Brass Separator Plate as shown in Figure 4 of this manual. If a label is not in this position and with the On/Off Switch in the Off position, pull the label liner near the Label Waste Rewinder until the label is fed as shown in Figure 4. 9) The Label Sensor Adjustment Forward and Back will determine the feed position of each label as it is fed through the machine. Turn the Power on the machine by using the On/Off Power Switch and press the Label Applicator Roller Assembly and check in what position the next label fed as shown in Figure 4. If the label is not fed high enough, then move the Label Sensor by using the label Sensor Adjustment Forward and Back slightly forward towards the Label Waste Rewinder and test again. If the label is feeding too much, then move the Label Sensor back towards the Label Roll Shaft by using the Label Sensor Adjustment Forward and Back slightly back and try again. Due to the many types of labels, this step will require some trial and error. For fine adjustments to the label feed position, use the Label Length Control as shown in Figure 1 of this manual. 10) Once the previous steps have been completed, try applying a label to the product to be sealed using the Model #6510‐TL. If the label applies as desired, the Model #6510‐TL is ready for use. If the label does not apply as desired but the label is feeding consistently, adjustments can be made by using the Separator Plate Adjustment Thumb Screw, see Figure 2. For smaller labels, the Brass Separator Plate may need to be raised to allow for the label to apply evenly to the package. For larger labels, the Brass Separator Plate may need to be set lower for proper application of the label to the package. To adjust the position of the Brass Separator Plate, use the Separator Plate Adjustment Thumb Screw to raise and lower the Brass Separator Plate. This may require some trial and error for proper adjustment. Setting up the Product Guides: 1) The final step is to setup the Product Guide. 2) To setup the Product guide, loosen the 2 Product Guide Thumb Screws and move the Product Guide to the position necessary for the required placement of the labels on the package. See Figure 4. 3) There are multiple threaded holes in the Top Plate of the Model #6510‐TL and if needed the Product Guide can be fully removed and then placed in a position that will provide the necessary placement of the label on the package and the Product Guide Thumb Screws replaced and tightened. 4) The Model #6510‐TL can also be flush mounted into a table for larger boxes if desired. Use of the Tach‐It Model #6510‐TL: 1) Once all of the above has been completed, the Model #6510‐TL is ready for use. ...
-
Page 13: Troubleshooting
Troubleshooting: Remedy: Symptom: Check that the Power Cord is properly inserted into the IEC Power Input. See Figure 3 Machine will not Power On Check the Fuse. The Fuse Holder in integrated into the IEC when the ON/Off Switch is in Power Input below the Power Cord the On Position: Make sure that the Power Outlet is live and of the proper voltage. Check to make sure that there is no binding of the labels within the feed path. make sure that there is not too much tension on the labels as they are being fed. Check the Label Roll Guides, and both of the Urethane Pressure Plates. If necessary loosen these so that the Labels are not feeding when the labels will feed freely. Label Application Roller is The Label Applicator Roller depresses a micro‐switch located on depressed the back side of the Main Frame. Confirm that the micro‐switch is being depressed when the Label Application Roller is depressed below the plate. Also if capable confirm that the signal from the micro‐switch is passing. Confirm that the labels are properly fed and that the labels go through the slot within the Label Sensor. See Figure 9 and When the Label Application follow the Feeding the Labels section of this manual Roller is depressed below the plate, the labels feed without The Label Sensor will need to be adjusted by pressing the "+" stopping so multiple labels are button a few times. Detailed instructions on page 12 of this fed. manual The Label Sensor will need to be adjusted by pressing the "‐" button a few times. Detailed instructions on page 12 of this ... - Page 14 Confirm that the label will peel cleanly from the liner by removing a few labels by hand. If the surface of backing label liner is peeling with the label, the die‐cut of the label is no good The label is not being removed and the machine will have difficulty peeling these labels. Try from the liner during the another label roll or different label feeding process. Add tension to the label using the Top Urethane Pressure Plate. See Figure 2. Confirm that the label is being fed up into the slot at least halfway. See Figure 4. If the label is not feeding enough, use the Label Sensor Adjustment Forward and Back to change how much the label is fed up over the Top Plate. This will take some trial and error. If the label is small and not adhering to the box or is not evenly applied to the side and bottom of the box, raise the Brass Separator The label is not applying as desired. Plate by using the Separator Plate Adjustment Thumb Screw. See Figure 2. IF the label is feeding more onto the side of the box and less on the bottom reduce how much label is fed above the Top Plate by using the Label Sensor Adjustment Forward and Back. This will take some trial and error. ...
-
Page 15: General Conditions
WARRANTY AND GENERAL CONDITIONS TACH‐IT MODEL #6510‐TL AND 6510‐TL: THE WARRANTOR, BEN CLEMENTS AND SONS, INC. AND CLEMENTS INDUSTRIES, INC. WARRANTS TO THE ORIGINAL PURCHASER‐USER, THE TACH‐IT MODEL #6510‐TL AND 6510‐TL TO BE FREE FROM DEFECTS IN FACTORY MATERIALS FOR THE PERIOD OF 6 MONTHS FROM THE INVOICE DATE OF ORIGINAL PURCHASE OF THE MACHINE. EXCLUDED IN THIS WARRANTY ARE THE MICROSWITCH AND TOP ROLLER AS THESE ARE NORMAL WEAR PARTS. THE WARRANTOR AGREES TO SUPPLY AT ITS OPTION SIMILAR PART OR PARTS OF SAID UNIT PROVED TO THE SATISFACTION OF THE WARRANTOR TO BE DEFECTIVE AT THE TIME THE MACHINE WAS SOLD. ANY REPLACEMENTS UNDER THIS 6 MONTH WARRANTY WILL BE WITHOUT COST FOR PARTS TO SAID ORIGINAL PURCHASER‐USER, EXCEPT FOR TRANSPORTATION, DUTY, CUSTOMS CLEARING AND LABOR CHARGES. BEFORE WARRANTOR SHALL SUPPLY ANY PART, THE PUCHASER‐USER MUST SEND THE ALLEGEDLY DEFECTIVE PART OR PARTS TO WARRANTOR’S DESIGNATED FACTORY FREIGHT PREPAID INCLUDING DUTY AND CUSTOMS CLEARING IF APPLICABLE AND SAID PART MUST BE PROVED DEFECTIVE TO WARRANTORS REASONABLE SATISFACTION. THE WARRANTOR SHALL NOT BE RESPONSIBLE FOR ANY EXPENSES INCURRED FOR SERVICE OR REPAIRS PERFORMED BY ANY PERSON OR PERSONS OTHER THAN THE WARRANTOR, UNLESS SPECIFICALLY AUTHORIZED BY THE WARRANTOR. SERVICE CALLS OR REPAIRS OTHER THAN THOSE COVERED BY THE CONDITIONS SET FORTH IN THIS WARRANTY WILL BE MADE AT THE EXPENSE OF THE PURCHASER‐USER. ANY MODIFICATION OR USE OF THIS UNIT FOR PURPOSES NOT INTENDED VOIDS ANY AND ALL RESPONSIBILITY AND LIABILITY OF THE WARRANTOR. ANY PRESSURE SENSITIVE LABELS USED ON THIS MACHINE THAT DO NOT MEET BEN CLEMENTS AND SONS, INC. / CLEMENTS INDUSTRIES, INC. SPECIFICATIONS WILL MAKE THE WARRANTY NULL AND VOID. GENERAL CONDITIONS: BEN CLEMENTS AND SONS, INC. AND CLEMENTS INDUSTRIES, INC. SHALL NOT BE LIABLE FOR ANY DEFAULTS, DELAY, LOSS OF USE OR MARKET CAUSED BY ANY CONTINGENCY BEYOND WARRANTOR’S CONTROL INCLUDING WAR, GOVERNMENTAL RESTRICTIONS OR RESTRAINTS, STRIKES, FIRES, VANDALISM, FLOOD, OR SHORT OR REDUCED SUPPLY OR RAW MATERIALS, ACTS OF GOD, NOR TO SPECIAL CHARGES FOR STATE SALES OR OTHER TAXES. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND RELEASES THE WARRANTOR FROM ALL OTHER OBLIGATIONS AND/OR LIABILITIES WHATSOEVER. IT NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR THE WARRANTOR ANY OTHER LIABILITY IN CONNECTION WITH THE UNIT HEREIN IDENTIFIED. IT APPLIES ONLY WITHIN THE BOUNDARIES OF THE UNITED STATES OF AMERICA, ITS TERRITORIES AND POSSESSIONS, AND IT IS NOT ASSIGNABLE. ORIGINAL PURCHASER‐USER SHALL MEAN ONLY SUCH PERSON, PERSONS, ASSOCIATIONS, OR CORPORATIONS FOR WHOM THE UNIT IDENTIFIED HEREIN IS ORIGINALLY PURCHASED OR INSTALLED. THIS WARRANTY DOES NOT APPLY TO DAMAGE TO SAID UNIT OCCURRED IN TRANSIT, NOR DAMAGE CAUSED BY ALTERATIONS BY UNAUTHORIZED PERSONS, FIRE, ACCIDENTS, ACTS OF GOD, MISUSE OR ABUSE, USE OF IMPROPER LABELS OR LABELING MATERIALS OR BY ANY OTHER CAUSES WHATSOEVER OTHER THAN DEFECTS IN FACTORY WORKMANSHIP OR MATERIAL, NOR DAMAGE OR LOSS OF ANY PRODUCTS, REFRIGERANT, PROPERTY, NOR LOSS OF INCOME OR PROFITS DUE TO MALFUNCTIONING OF SAID UNIT, NOR TO TRANSPORTATION OR SPECIAL CHARGES FOR STATE SALES OR OTHER TAXES. ...
