CONTENT Manual of Control 1. Scope and General 2 Important Safety Precautions 3 Introduction 4 Installation & Connection 5 Technical Specification 6 Trouble Shooting 7 Aftersales service and warranty 8 Contact us www.projoy-electric.com...
PEFS-24V-C180 Control Power Supply PEFS-24V-C480 24V- 24V+ 4 Installation & Connection 1) Open the box, take out PEFS-24V-CN and parts, read this manual. Product Cable L-shaped Clasps Manual -core wire * PEFS-24V-C60/C180 Type provide 20/30/100m Optional 2) Prepare materials and tools. ST4.8×38 expansion bolt cross/straight screwdriver...
Page 5

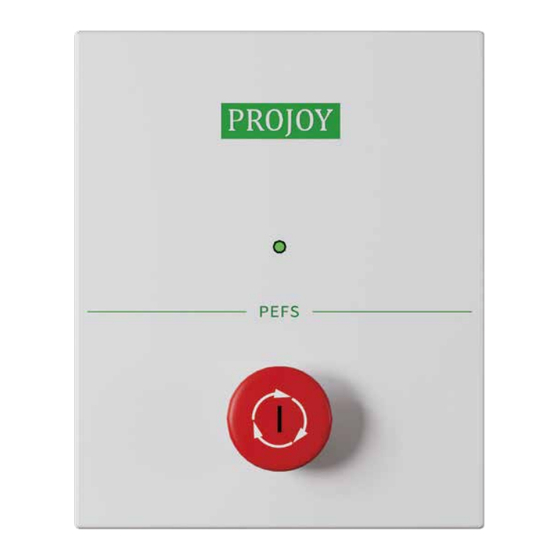

3) The installation modes of PEFS-24V-CN are divided into the following two situations. Control Power Supply (Take PEFS-24V-C60 example) a) Align the round hole of the L-shaped calsp with the round hole of the box and fix them with screws. b) Mount the control to the appropriate location through the gourd-shaped hole.
Page 6
b) Mount the control nstallation (e.g. wall) c) Wiring PEFS-24V-C480 an external power supply SWITCH POWER SUPPLY Black White Black White 4) Parallel connection of multiple control boxes …… …… www.projoy-electric.com...
5 Technical Specification Control Box Power Supply Operating AC Voltage Range 100 V-240 V Norminal Frequency 50/60 Hz 24V DC Output Voltage Output 2.2A 24Vdc Control Cable Size 0.823 mm / 18 AWG 24Vdc Control Cable Length 20 m / 30 m / 100 m With Standard Connectors Spare Terminal Connectors Maximum PEFS-PL80S-11...
6 Trouble Shooting Problem Possible Cause Possible Solution No mains supply Check (LED OFF) Check fuse Check mains voltage between L&N marked terminals PEFS-24V-CN power supply failure Check between + & - marked terminals able Check Check Check String voltage 7 Aftersales service and warranty 8 Contact us y Ele tric C .,...
