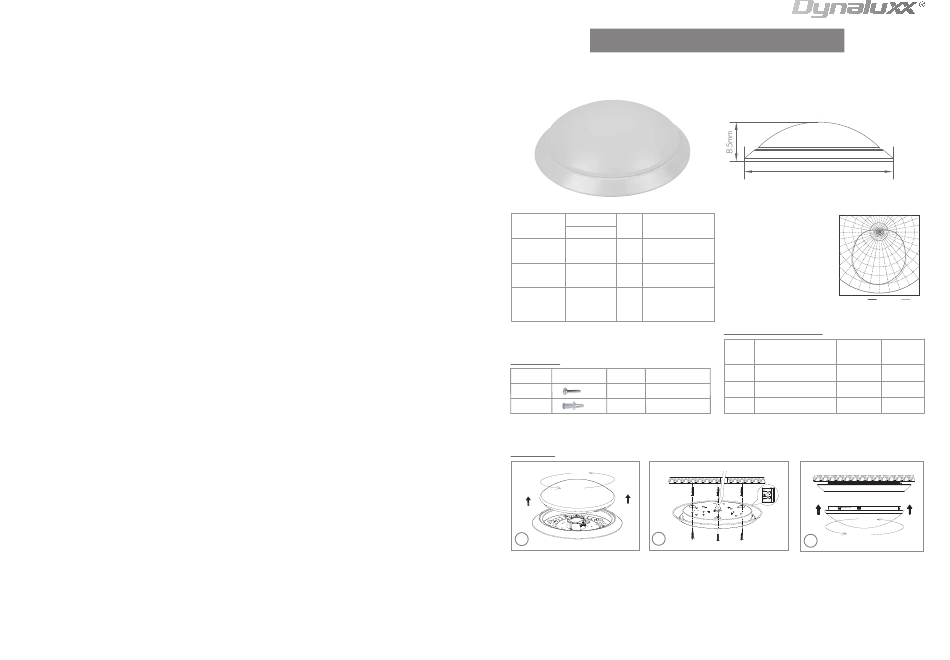

Dynaluxx Luna LA325 Operating Manual

OPERATING MANUAL

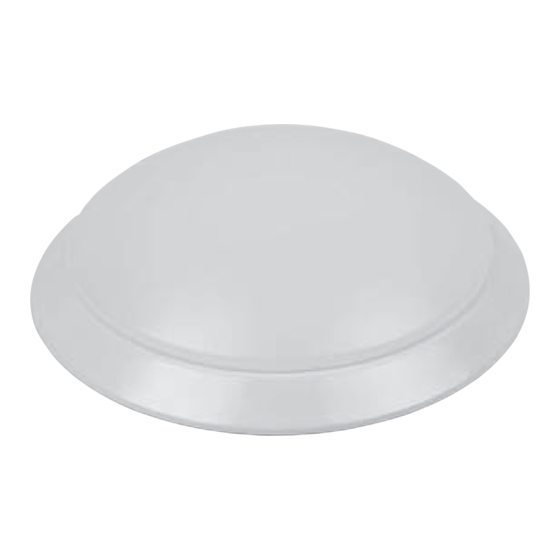

Luna LA325 - Sensor
Important: Please read the instruction manual carefully prior to installation and keep it for future reference.
Product
Power Function
Ordering Code
(W) Description
Fitting Series
LA325 18 SOF Luna LA325 18 On/off function LED
Sensor-Dim function
LA325 18 SDM Luna LA325 18
LED
Corridor function
LA325 18 STM Luna LA325 18 (Tri-level dimming
function) LED Fixture
Accessories
No. Pic. Qty. Usage
1 3 Fitting base
2 3 Rawl plug

Installation

2
1
Twist the diffuser anticlockwise and a. Cut off the power. Thread the input
vertically remove it. cable through the rubber plug to the
fixture. Connect the L, N, Earth wire
based on the wiring diagram.
b. Knock the rawl plugs into the pre-
drilled holes on ceiling/wall. Wear
plastic washers on self-tapping
screws and tighten them to fix the
fixture on ceiling/wall.
Intelligent Lighting Solutions
325mm
Mounting: Wall or Ceiling
Light features:
Ra: >80
Life Time: 5 years
Light Source: LED SMD2835
Input: 220V-240V 50/60Hz
C0/C180: C90/C270:
Color Temperature Code
Code Color temperature CCT(K) Lumen
30K Warm White 3000 1450
40K Natural White 4000 1510
50K Cool White 5000 1590
3
Install the diffuser.
