Product name: One-week Mechanical Indoor Timer Socket
Barcode: 8433325179502
Plug parameter: 230V/50Hz16(2)A

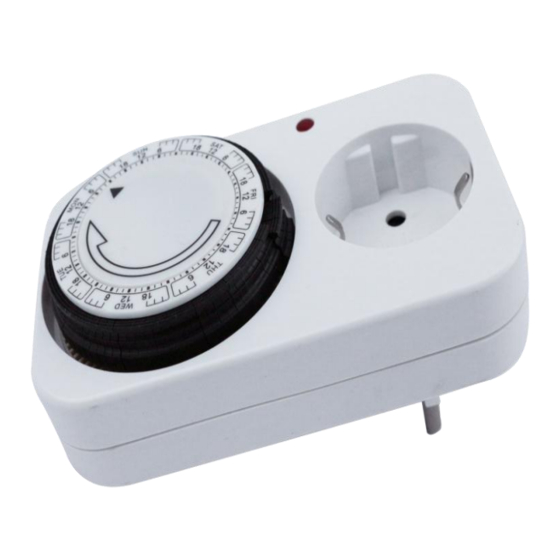

Picture:
Product introduction
1. There is a mode setting slider on the right side of the product. To activate the socket at
regular intervals, toggle the slider so that the icon
backwards so that the icon
(As in fig. 1)
2. When the socket is in timer mode, the power indicator lights up. (As in fig. 2)
3. Above the socket is a time dial indicating the seven days from Monday to Sunday. The 24
hours per day are divided into 12 compartments, each with a 2-hour interval for the dial
(see fig. 3). Press = on, pop up = off.
4. The time dial can only be turned in a clockwise direction, not counterclockwise.
5. The small triangle is set to point to the current time.

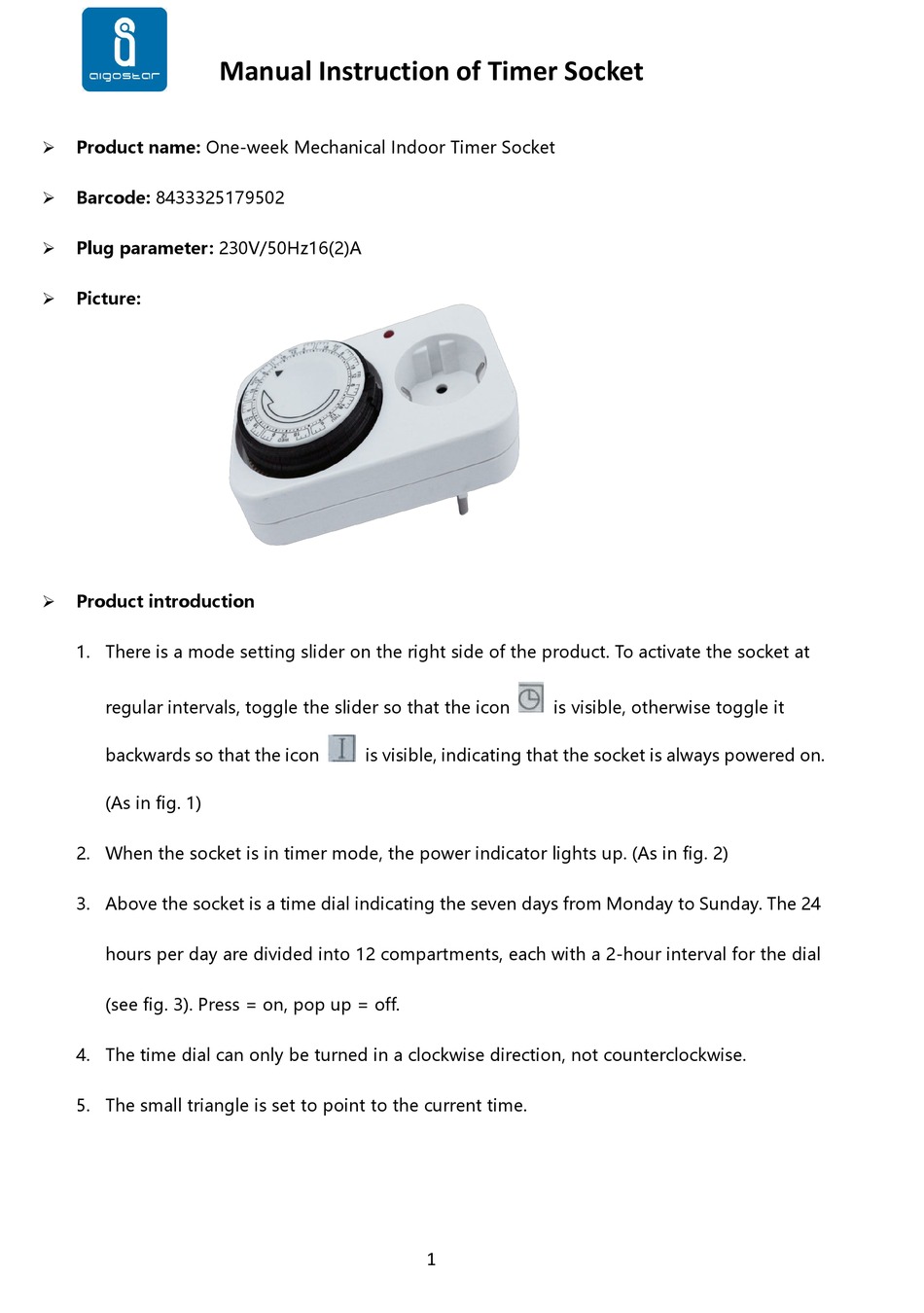

Manual Instruction of Timer Socket
is visible, indicating that the socket is always powered on.
is visible, otherwise toggle it
1
Advertisement
Table of Contents
Summary of Contents for AIGOSTAR 8433325179502
- Page 1 Manual Instruction of Timer Socket Product name: One-week Mechanical Indoor Timer Socket Barcode: 8433325179502 Plug parameter: 230V/50Hz16(2)A Picture: Product introduction 1. There is a mode setting slider on the right side of the product. To activate the socket at...
- Page 2 Manual Instruction of Timer Socket fig. 1 fig. 2 fig. 3 Timer mode instruction Toggle the right mode setting slider so that the icon is visible and the timer function is on. Calibrate the current time: turn the dial clockwise so that the arrow points to the current time.
- Page 3 Manual Instruction of Timer Socket Examples: It is now 12:00 noon on Wednesday and you want the appliance to work from 00:01-12:00 on Friday. Firstly, ensure that the icon on the right side of the mode setting slider is visible.
