Summary of Contents for XU1 XACP-2115

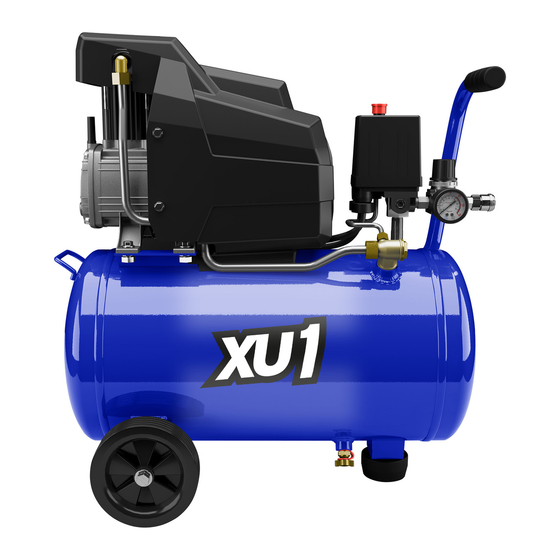

- Page 1 XU1 Power tools 25 Fox Drive, Dandenong South, Victoria, Australia 3175 Telephone: 1800 069 486 XACP-2115 0821...
- Page 2 (5)00 (7)00 PRESSURE GAUGE (3)00 (9)00 (1)00 kg/cm² Lb/in² (BAR) (PSI) 1. Air Filter 6. Regulated Pressure Outlet 11. Wheel 2. Motor 7. Pressure Gauge 12. Tank Handle 3. On/Off Switch 8. Support Foot 13. Oil Drain Screw 4. Carry Handle 9.
-
Page 3: Specifications
SPECIFICATIONS CONTROLS Fitting The Air Filter 1. Attach the supplied air filter by screwing it in WARNING! The air compressor must clockwise. FIG. A Power Supply: 230-240V ~ 50Hz be used with a residual current device with a rated residual current of 30ma or less. 1100W (1.5HP) S3 50% Motor: Tank Capacity:... -
Page 4: Operation
4. Also turn on the air tool to discharge any remaining pressurised air in the air hose. Note: XU1 will not be responsible for any damage or injuries caused by the repair of the tool by an 5. Remove the air hose and any other connected unauthorised person or by mishandling of the tool. -
Page 5: Warranty
WARRANTY Draining The Pressure Tank Changing The Oil The oil should be refilled for the first time after 100 WARNING! Release all air pressure hours of operation. Thereafter, the oil should be from the tank before opening the Drain YOUR WARRANTY FORM SHOULD BE RETAINED drained and refilled after every 500 hours of service. -
Page 6: Safety Instructions
CARING FOR THE ELECTRICAL SAFETY ENVIRONMENT SAFETY INSTRUCTIONS Power tools that are no longer usable WARNING! When using mains-powered Description of symbols should not be disposed of with household tools, basic safety precautions, including the waste but in an environmentally friendly following, should always be followed to reduce Read instruction manual way. -
Page 7: General Power Tool Safety Warnings
GENERAL equipment such as dust mask, gloves, non-skid h. Keep handles and grasping surfaces safety shoes, hard hat, or hearing protection used dry, clean and free from oil and POWER TOOL for appropriate conditions will reduce personal grease. Slippery handles and grasping injuries. - Page 8 ADDITIONAL • Do not attempt to adjust/modify the safety valve in any blowing foreign particles into the air. Do not attempt to way. The safety valve installed on this air compressor catch the air line but immediately keep bystanders well SAFETY is designed to automatically release pressure in case of clear and turn off the air supply to the hose, turn off the...
