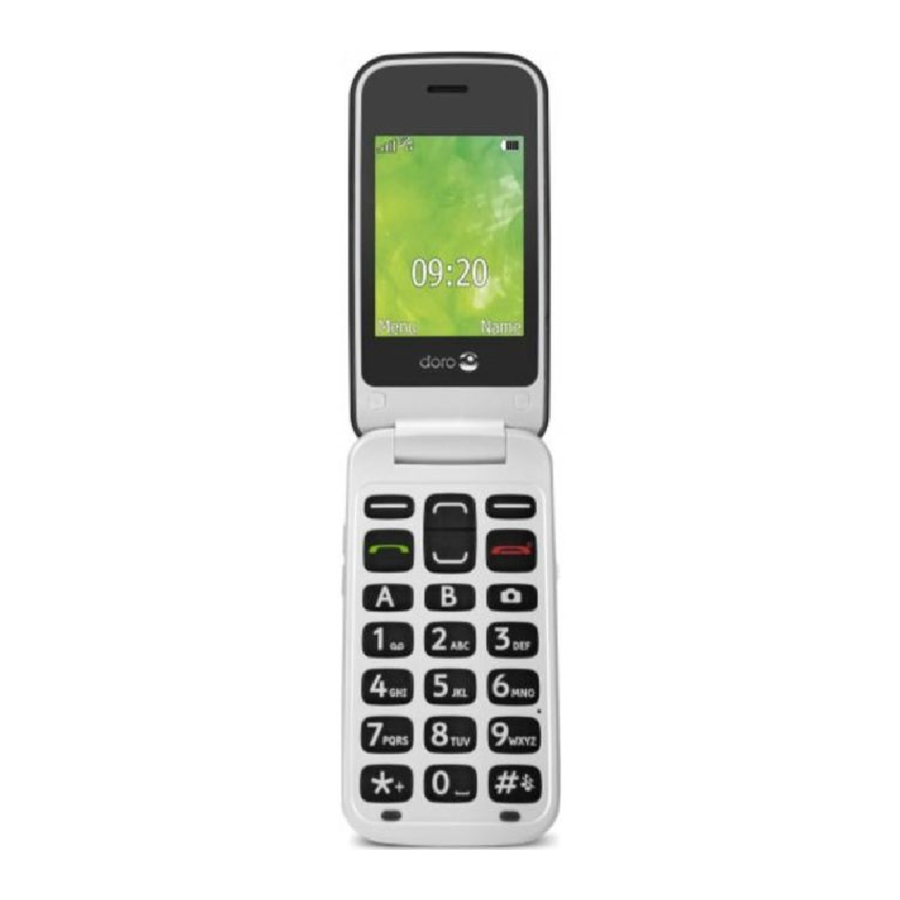

Doro 2415 DFC-0150 - Mobile Phone Quick Start Guide

Doro 2415 DFC-0150 - Mobile Phone Quick Start Guide

Advertisement

Doro 2415 DFC-0150 - Mobile Phone Quick Start Guide

Overview

Overview

  1. Speaker
  2. Scroll buttons
  3. Left selection button
  4. Call key
  5. Speed dial A
  6. Speed dial B
  7. International prefix / symbols/ /
  8. Right selection button
  9. End call /
    Power on/off
  10. Camera key
  11. Microphone
  12. Silent / Input method/ /
  13. Torch/Camera flash
  14. Headset socket
  15. Torch key
  16. Charging cradle connectors
  17. Camera lens
  18. Lanyard hold
  19. Assistance button
  20. Volume
  21. Loudspeaker
  22. Charging socket

information Note! All illustrations are for illustrative purposes only and may not accurately depict the actual device. This guide is for reference only. This guide is for reference only. The actual device and the items supplied, including but not limited to the colour, size, and screen layout, may vary depending on the software and accessories available in your region or offered by your service provider. Supplied accessories provide the best performance with your phone. Your local Doro dealer provides additional accessories.

GET STARTED

SIM card/memory card and battery

Remove the battery cover

Be careful not to damage your fingernails when you remove the battery cover. Do not bend or twist the battery cover excessively as it may be damaged.

Insert SIM card (required)

Remove the battery if it is already installed. Slide the card under the metal part, with the gold-coloured circuit board facing down. The cut-off corner of the card helps you to place the card, correct placement is indicated in the compartment.
Insert SIM card

information Note! This device accepts micro SIM or 3FF SIM card. Use of incompatible SIM cards may damage the card or the device, and may corrupt data stored on the card.

Insert SD card (optional)

Locate the SD card holder and gently slide the card in the holder.
Insert SD card

information Note! The circuit boards (metal part) on the cards must not be scratched or bent. Try not to touch the circuits with your fingers.
Use only compatible memory cards with this device. Compatible card type: microSD, microSDHC. Incompatible cards may damage the card itself, the device and corrupt any data stored on the card.

Insert the battery

Insert the batteryby sliding it into the battery compartment with the circuits facing up to the left. Replace the battery cover.
Insert the battery

Charge the phone


Only use batteries, charger and accessories that have been approved for use with this particular model. Connecting other accessories may be dangerous and may invalidate the phone's type approval and guarantee.

When the battery is running low, is displayed and a warning signal is heard.

  • Connect the mains adapter to the wall socket and to the charging socket .

Tip: Don't forget to remove the protective plastic film from the display.

GET TO KNOW YOUR PHONE

Turn the phone on and off

  1. Press and hold the red button on the phone to turn it on/off. Confirm with Yes to power off.
  2. If the SIM card is valid but protected with a PIN code (Personal Identification Number), PIN is displayed. Enter the PIN code and press OK. Delete with Clear.

information Note! If PIN and PUK codes were not provided with your SIM card, please contact your service provider.

Attempts: # shows the number of PIN attempts left. When no more attempts remain, PIN blocked is displayed. The SIM card must now be unlocked with the PUK code (Personal Unblocking Key).

  1. Enter the PUK code and confirm with OK.
  2. Enter a new PIN code and confirm with OK.
  3. Re-enter the new PIN code and confirm with OK.

Start-up wizard

When starting the telephone for the first time, you can use the start-up wizard to set some basic settings.

Tip: You can run the start-up wizard later if you want.

Step-by-step instructions

In this document the arrow ( ) indicates next action in the step-by-step instructions.

To confirm an action in the phone, press OK.

To select an item, scroll vertically or highlight the item using and them press OK.

To scroll horisontally, use / and then press OK. ( ) or ( ).

Enter text

  • Press a numerical key repeatedly until the desired character is shown. Wait a few seconds before entering the next character.
  • Press for a list of special characters. Select the desired character with and press OK to enter it. /
  • Use / to move the cursor within the text.
  • Press to cycle upper case, lower case and numerals.

Change language, time and date

The default language is determined by the SIM card.

CALLS

Make a call

  1. Enter the phone number. Delete with Clear.
  2. Press to dial. Press Abort to cancel the call.
  3. Press to end the call. Note! For international calls, always use + before the country code for best operation. Press twice for the international prefix +.

Call from the phonebook

  1. Press Name to open the phonebook.
  2. Use / to scroll through the phonebook, or quick search by pressing the key corresponding to the first letter of the name.
  3. Press Options Call, alternatively, press to dial the selected entry, or press Back to return to standby.

Receive a call

  1. Press to answer, or press Silent to switch off the ring signal and then Reject (busy signal).
    Alternately, press to reject the call directly.
  2. Press to end the call.

Volume control

Use / to adjust the sound volume during a call. The volume level is indicated on the display.

Silent

Silent is a fixed profile with keypad tone, message tone and ring tone disabled, while vibration, tasks and alarm are unchanged.

  • Press and hold to activate and to deactivate silent.

Call options

During a call the soft keys ( ) give access to additional functions.

Speed dial

Use to speed dial an entry from standby

  • Press and hold the corresponding button to dial.

Add speed dial numbers

  1. Press Menu Phonebook .
  2. Use phonebook, or quick search by pressing the / to scroll through the key corresponding to the first letter of the name.
  3. Options Phonebook settings Speed dial Set number.
  4. Select Edit and select an entry from the phonebook.
  5. Press OK to confirm.
  6. Repeat to add speed dial entries for buttons - .

SOS calls

As long as the phone is switched on, it is always possible to place an SOS call by entering the main local emergency number for your present location followed by .

Call history

Received, missed, and dialled calls are saved in a combined call log. 20 calls of each type can be stored in the log. For multiple calls related to the same number, only the most recent call is saved.

  1. Press .
  2. Use / to scroll through the call log.
    = Received call
    = Dialled call
    = Missed call
  1. Press to dial, or Options.

PHONEBOOK

The Phonebook can store 300 entries with 1 phone numbers in each entry.

Add a contact

  1. Press Menu Phonebook -New contact- OK.
  2. Enter a Name for the contact, see Enter text. Delete with Clear.
  3. Use / to select Number and enter the phone number.
  4. When done, press Save.

ICE (In Case of Emergency)

In the event of a trauma, it is critical to have this information as early as possible to increase the chances of survival. Add ICE contact to improve your own safety. First responders can access additional information such as medication and next of kin from your phone in case of an emergency. All fields are optional, but the more information provided the better.

Press Menu Phonebook ICE.

  1. Use / to scroll the list of entries.
  2. Press Edit to add or edit information in each entry. Delete with Clear.
  3. Press Save when done.

ASSISTANCE BUTTON

The assistance button allows easy access to contact your predefined help numbers should you need help. Make sure that the assistance function is activated before use and make all necessary configurations. Test the application thoroughly.

Make an assistance call

  1. When help is needed, press and hold the assistance button for 3 seconds, or press it twice within 1 second. The assistance call begins after a delay of 5 seconds. In this time you can prevent a possible false alarm by pressing .
  2. An assistance text message (SMS) is sent to all recipients. The first recipient in the list is dialled. If the call is not answered within 25 seconds, the next number is dialled.
    Dialling is repeated 3 times or until the call is answered, or until is pressed.


When an assistance call is activated the phone is pre-set to handsfree mode. Do not hold the device near your ear when the handsfree mode is in use, because the volume may be extremely loud.

Settings

  • Press Menu Settings Assistance.

MESSAGES

Create and send text messages

  1. Press Menu Messages Write message.
  2. Write your message.
  3. Then press Options To.
  4. Select a recipient with Add from Phonebook.
    Alternatively, select Enter number to add recipient manually and press OK.
  5. You can modify the recipients by selecting one and press Options Edit/Delete/ Delete all.
  6. When done, press Options Send.

Create and send picture messages

Both you and the recipient must have subscriptions that support picture message. The settings for picture message are supplied by your service provider and can be sent to you automatically via text message. Press Menu Messages MMS.

  1. Write your message, see Enter text.
  2. Press Options Add picture:
  • My pictures to select a file.
    Note! To keep best picture quality, send only one picture per message.

You can also Add sound, Add video, and Preview MMS using the Options menu.

  1. Press Options Add subject and enter your subject, then press Done.
  2. Press Options To and select select a recipient with Add from Phonebook.
    Alternatively, select Enter recipient to add recipient manually and press OK.
  3. When done, press Options Send.

Settings

  • Press Menu Messages Messages SMS / MMS.

CAMERA (TAKE PHOTOS)

  1. Press shortcut button or press Menu Camera.
  2. Press to take the photo.
  3. Press Options to reach more settings.
  4. Press Back to return to standby.

Camera settings

  • Press Menu Camera Options .

BLUETOOTH

You can connect wirelesses to other Bluetooth ® compatible devices such as headsets or other phones.


When you are not using Bluetooth ® connectivity, turn off Activate or Visibility. Do not pair with an unknown device.

Activate Bluetooth

  1. Press Menu Settings Connectiviy Bluetooth.
  2. Press Function on/off On to activate.

Search device

  1. Press Menu Settings Connectiviy Bluetooth My device.
  2. Press Search new.
  3. Select a device from the list and press Bond to connect. If Bluetooth ® is not enabled, press Yes to activate.
  4. Press OK to confirm.

SOUND & DISPLAY

Tone setup

  1. Press Menu Settings Sound Tone setup Ringtone.
  2. Use / melodies, the melody will be played. / to select one of the available
  3. Press OK to confirm or Back to discard changes.

LCD backlight

Customise the display settings.

  1. Press Menu Settings Phone setup LCD backlight:
  • Set Brightness 1-5 using (down) and (up), 3 is the default value.
  • Set Time 5-60 seconds using (up). (down) and (up).
  1. Press OK to confirm.

ADDITIONAL FUNCTIONS

Alarm

  1. Press Menu Organiser Alarm On.
  2. Enter the alarm time using the keypad and press OK to confirm.
  • Single, for a single occurrence
  • Repeated, for a repeated alarm. Scroll through the list of days and press On or Off to enable or to disable for each day.
  1. When done, press OK.
  2. When the alarm goes off a signal will sound. Press Stop to turn off the alarm or press Snooze to repeat the alarm after 9 minutes.

Note! The alarm works even when the phone is switched off. Do not power on if wireless phone use is prohibited or when it may cause interference or danger.

Torch

Slide up to turn on the torch. Slide down to turn off.

Reset settings

  1. Press Menu Settings.
  2. Select Reset settings to reset the phone settings. All the changes that you have made to the phone settings will be reset to default settings.
  3. Enter the phone code and press OK to reset.
    Tip: The default phone code is 1234.

Reset all

  1. Press Menu Organiser File manager Highlight phone Options Details .
  2. Select Reset all to delete phone settings and content such as contacts, number lists and messages (SIM memory is not affected).
  3. Enter the phone code and press OK to reset.
    Tip: The default phone code is 1234.

TROUBLESHOOTING

Phone cannot be switched on

Battery charge low Connect the power adapter and charge the battery.
Battery incorrectly installed Check the installation of the battery.

Failure to charge the battery

Battery or charger damaged Check the battery and charger.
Battery recharged in temperatures < 0°C or > 40°C Improve the charging environment.
Charger incorrectly connected to phone or power socket Check the charger connections.

PIN code not accepted

Wrong PIN code entered too many times Enter the PUK code to change the PIN code, or contact the service provider.

SIM card error

SIM card damaged Check the condition of the SIM card. If it is damaged, contact the service provider.
SIM card incorrectly installed Check the installation of the SIM card. Remove the card and reinstall it.
SIM card dirty or damp Wipe the contact surfaces of the SIM card with a clean cloth.

Failure to connect to network

SIM card invalid Contact the service provider.
No coverage of GSM service Contact the service provider.

Failure to add a contact

Phonebook memory full Delete contacts to free up memory.

Failure to set a function

Function not supported or subscribed from network Contact the service provider.
