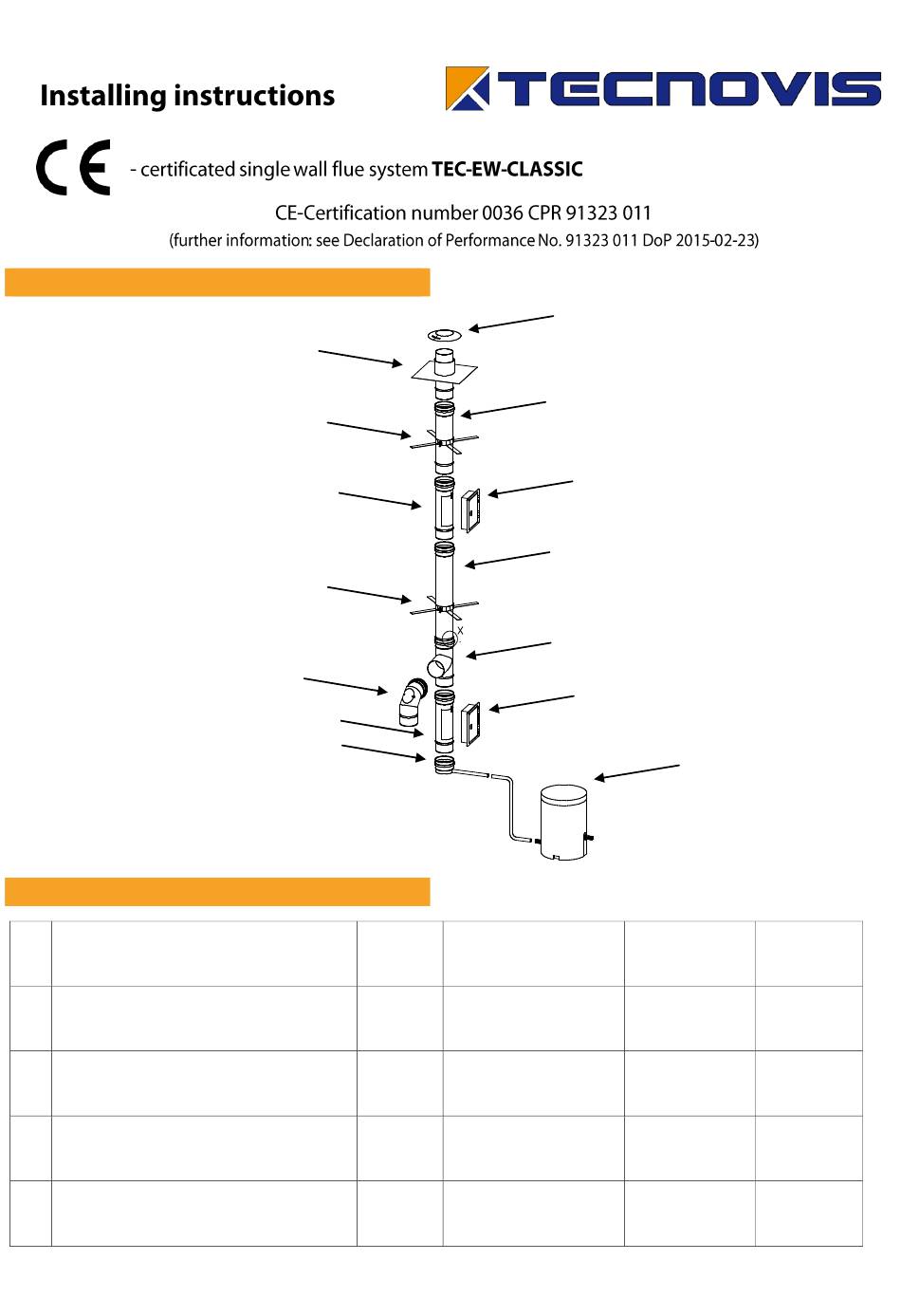

TECNOVIS TEC-EW-CLASSIC Installing Instructions

1) System construction variant
pipe bend 87° with
clean-out opening Reinigungswinkel 87°
2) Minimum distance to combustible materials
0.1 Used as system chimney (solid fuel)
Operation mode in negative pressure
up to 400°C
0.2 Used as exhaust gas line (oil, gas)
Operation mode in negative pressure
up to 400°C
0.3 Used as system chimney (solid fuel)
Operation mode in negative pressure
up to 600°C
0.4 Used as exhaust gas line (oil, gas)
Operation mode in negative pressure
up to 600°C
0.5 Used as system chimney (solid fuel)
with 25mm insulation, Operation mode in negative
pressure up to 600°C
Installing instructions TECNOVIS - TEC-EW-CLASSIC
chimney cowl cover
Kopfabdeckung
assembly clamp Montageschelle
Reinigungselement
inspection element
Montageschelle
assembly clamp
inspection element
Reinigungselement
Kondensatschale
condensate outlet
EN 1856-1
EN 1856-1
EN 1856-1
EN 1856-1
EN 1856-1
storm collar
length element
inspection opening
length element
pipe tee 87°
cleaning door
T400 – N1 – D – V2 – L50060
T400 – N1 – W – V2 – L50060
T600 – N1 – D – V2 – L50060
T600 – N1 – W – V2 – L50060
T600 – N1 – D – V3 – L50060
neutralizer
G50 (= 50 mm) Ø 80 – 300
G75 (= 75 mm) Ø 350 – 450
G100 (= 100 mm) Ø 500 – 600
O50 (= 50 mm) Ø 80 – 300
O75 (= 75 mm) Ø 350 – 450
O100 (= 100 mm) Ø 500 – 600
G100 (= 100 mm) Ø 80 – 300
G150 (= 150 mm) Ø 350 – 450
G200 (= 200 mm) Ø 500 – 600
O100 (= 100 mm) Ø 80 – 300
O150 (= 150 mm) Ø 350 – 450
O200 (= 200 mm) Ø 500 – 600
G70 (= 70 mm) Ø 80 – 300
G105 (= 105 mm) Ø 350 – 450
G140 (= 140 mm) Ø 500 – 600
