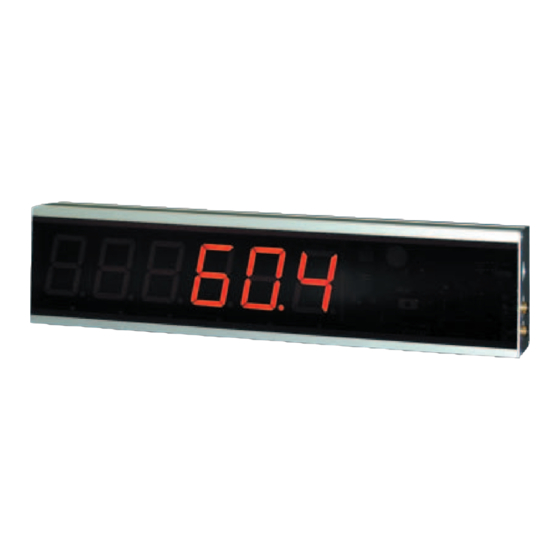

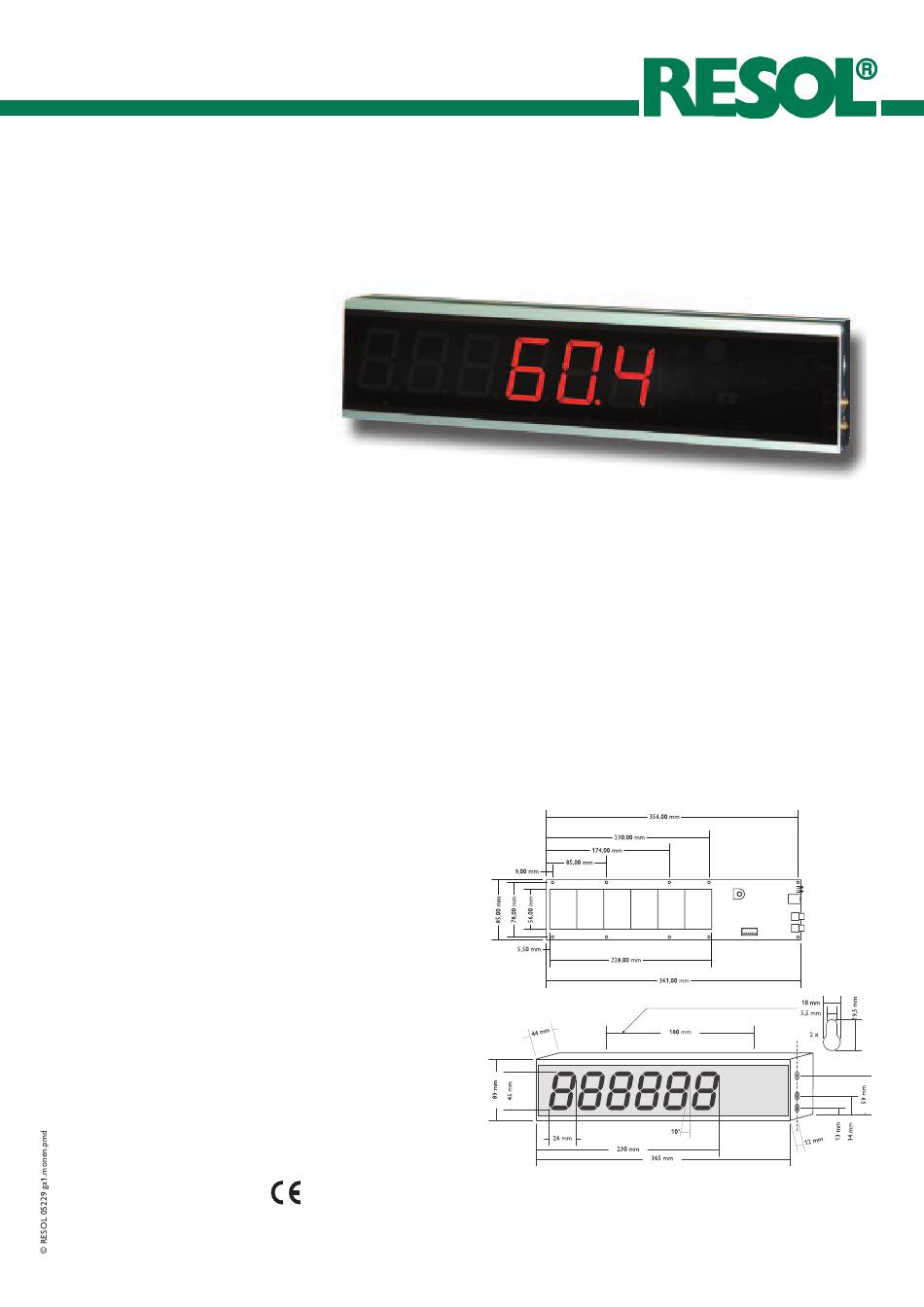

RESOL large display GA1
• visualisation of system
temperatures, pump
speed and heat amout
volume flow
• 6-digit, seven segment-
LED-display
• simple connection via
RESOL VBus®
• antireflective filterglass
• power supply unit

Technical data

RESOL large display
• Type GA1
plastic/aluminium-housing
Size:
365 x 89 x 44 mm
Protection type:
IP30 / DIN 40050
• Type GA1N
without housing, but filterglass.
Size:
361 x 85 x 15 mm
Protection type:
IP00 / DIN 40050
Display:
numerical seven segment-LED-
display
Segment-size:
45 x 26 mm, 10°-figures inclination
Ambient temperature:
0 ... 40 °C
Power supply:
by an optional 9V-plug-in power
supply type NG1 (Input: 100 ... 240
V AC)
Power consumption:
max. 4,5 W
Bus-connection:
RESOL VBus®
The RESOL large display GA1 is developed for a simple connection to RESOL
controllers via RESOL VBus®. It is used for visualisation of the data recorded by the
controller, e. g. system temperatures, temporary pump speed, heat amount and volume
flow in the solar system.
For simultaneous presentation of different system characteristics, several large displays
can be directly connected to the RESOL VBus®-data line and mounted into a large
displaymodule table. The display module automatically detects the connected controller;
the selection of the indicated value is effected by DIP-switch.
The application of
highly efficient LEDs
GA1N
and antireflective filter
glass generates
a highly optical
brilliance and a good
readability even with
bad light conditions
and from a greater
distance.
available versions:
GA1
GA1: with a housing
for wall mounting.
G A 1 N : w i t h o u t
housing for adap-
tation to customer's
large display module
table..
Errors and technical changes exepted
