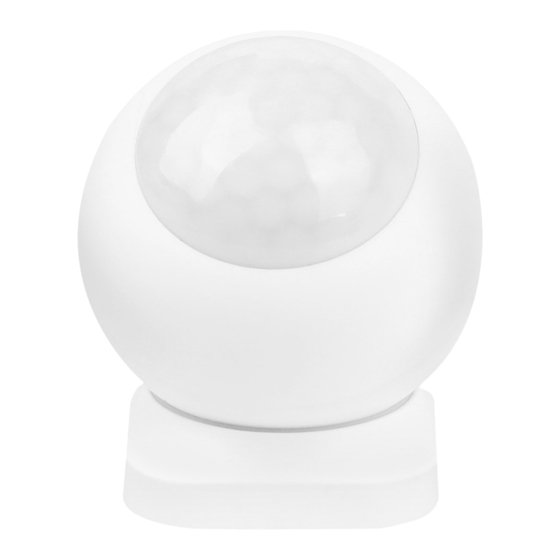

Miboxer PIR1-RF Instruction Manual

2.4ghz pir sensor
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
Subordinate New Brand
2.4GHz PIR Sensor instruction manual
Model No.: PIR1-RF
Contents
.......................................................................................... 2
..................................................................................... 2
................................................................................... 3
......................................................................... 3
.................................................................................... 4
.................................................................... 5
............................................................... 6
................................................................................ 7
...................................................................... 8
....................................................................................... 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIR1-RF and is the answer not in the manual?

Questions and answers

Summary of Contents for Miboxer PIR1-RF

  • Page 1: Table Of Contents

    Subordinate New Brand 2.4GHz PIR Sensor instruction manual Model No.: PIR1-RF Contents Feature ..................2 ..................2 Parameter ................... 3 Description ................. 3 Battery Installation ..................4 Link/Unlink Function Description ..............5 Function setting method ............... 6 ................7 Compatibility ..............

  • Page 2: Feature

    Support to link with one or multi 2.4G lighting series Support to set "hold time" function Built-in high sensitive lighting sensor Strong magnetic mounting method Flexible 360°angle 2. Parameter Model No.: PIR1-RF Battery: CR123A 3V Standby Power Consumption: 12μA Detection Angle: 120° Detection Distance: 7m RF: 2.4GHz Control Distance: 30m Working Temperature: -10 ~ 40°C...

  • Page 3: Description

    3. Description Fresnel lens Battery (purchase separately) Magnetic holder Indicator Back case 4. Battery Installation Open the back case anticlockwise Install CR123A 3V battery (purchase separately)

  • Page 4: Link/Unlink

    5. Link/Unlink PIR sensor need to be paired with lights, countless lights can be worked with it. 1). Linking Code Instructions Power Light Power Light Power off 10 seconds and Short press " SET " button Lights blink 3 times power on again.

  • Page 5: Function Description

    6. Function Description *Brightness feature while motion detected: Lighting up, brightness can be set 20% or 100%. *Light Sense: ON: PIR sensor only works in gloomy area OFF: PIR sensor works in any place *Night Light: ON: bright sence to gloomy sence, light up automatically (brightness is 1%), gloomy sence to bright sence, light off...

  • Page 6: Function Setting Method

    7. Function setting method Brightness feature while motion detected: 100% Factory default: Hold time while motion detected: 30 seconds Light sence: OFF Night Light: OFF Maximum distance 1m Long press “SET” seconds, Short press the keys, Indicator flashes quickly to start details as following setting up.

  • Page 7: Compatibility

    8. Compatible with these 2.4G RF remote controls (Purchased separately)

  • Page 8: Installation Direction

    9. Installation Direction 1). Location: install it in the area where people usually cross over and distance must be 2m over the ground. As shown below. ° 120° 7 （ m） 7 （ m） Useful detecting area (overhead view) Useful detecting area (vertical view) 2).

  • Page 9: Attention

    3). Remove sticker on the back base, fix base holder on suitable position. Remove sticker Put it on magnetic base 10. Attention 1). Remove battery if don’t often use it, save it in dry and static free condition. 2). Don’t use it near metal or strong hertz area, it will affect communication distace.
