- Page 1 60d S Product Manual English...
-
Page 2: Important Safety Instructions

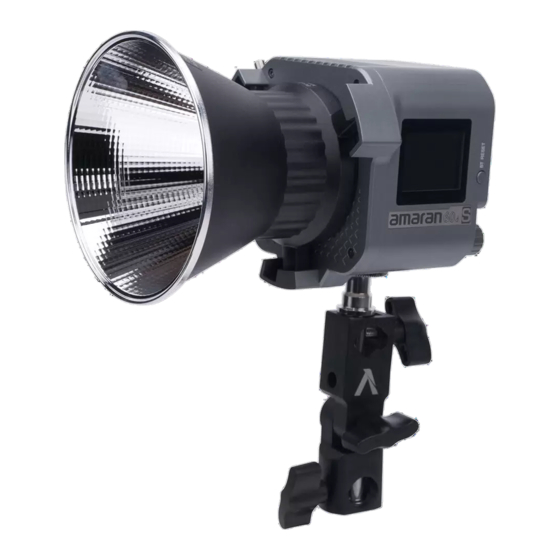

Thank you for purchasing the "amaran" series of RGBWW COB lights - amaran 60d S. Amaran 60d S is a 65W full color LED light. It has a new and colorful appearance design and supports full-color output of light sources. Advanced software interaction design, minimalist control method, com- patible with Sidus Link®... - Page 3 Any malfunctions caused by unauthorized disassembly are not covered by the warranty. The user may pay for maintenance. 20. We recommend only using the original Aputure® cable accessories. Please note that any malfunctions caused by using unauthorized accessories are not covered by the warranty.
-
Page 4: Components List
Components List Please make sure all accessories listed below are completed before using. If not, please contact with your sellers immediately. amaran 60d S Standard Kit： Protective cover (1 pc) Tie Down (1 pc) Cable Tie Hyper reflector (1 pc) -
Page 5: Product Details
Product Details Bowens Mount Protective cover Release Latch Bowens Mount Display COB LED Bowens Mount Mini Reflector Tie Down Seat button Power switch button Adjusting knob DC-in connector... -
Page 6: Installations
Installations 1. Detaching /attaching the Protection Cover Push the handle of the lever in the direction of the arrow shown in the picture, and rotate the cover to pull it out. Reverse rotation will put the protective cover into. Always remove the protection cover prior to turning on the light. Always re-install the cover when packing it away. - Page 7 4. Soft light umbrella installation Insert the soft light handle into the hole, then lock the locking knob. *The soft light umbrella sold separately. 5. Battery handle installation Tighten the lamp body and the battery handle via 1/4 screw, then attach the battery plate or V-mount battery to the handle with the V-mount lock.
- Page 8 6. Power supply Powered by AC AC 100V-240V *Please press the button on the DC interface to remove the power cord from the lamp. Do not pull it out forcibly. *Please press the spring-loaded lock button on the power cord to remove the power cord. Do not pull it out forcibly.
- Page 9 Operations 1.Power ON/OFF Press the power button to turn the light on and off. 2.Manual Control 2.1 Menu 2.1 INT / CCT Rotate the INT adjusting knob to adjust the brightness with 1% variable, and the brightness change range is (0~100) %, and display the change of (0~100) % in real time on the LCD display. Click the INT adjustment knob to quickly switch the brightness level: 20%→40%→60%→80%→100%→20%→40% →60%→80%→100% cycle switch.
- Page 10 2.3 FX Connect Sidus Link® APP, the user can find the Bluetooth serial number corresponding to the lamp in the APP and connect. When controlling the light effect through the APP, "FX" will be displayed on the upper left corner of the screen. In wireless mode, 8 lighting effects can be controlled through APP: Paparazzi / Fireworks / Faulty Bulb / Lightning / TV / Pulsing / Strobe / Explosion.
- Page 11 You can download the Sidus Link® app from the iOS App Store or Google Play Store for enhancing the functionality of the light. Please visit Sidus.link/app/help for more details regarding how to use the app to control your Aputure® lights. Sidus.link/app/help...
-
Page 12: Specifications
Specifications DC Input Power(Max) 77 W Output Power(lamp) 65 W 5600 K TLCI SSI (D56) TM-30 Rf（avg.） Luminous flux 7195 lm TM-30 Rg（avg.） DC : 19 V / 4.73 A Naked: 108° Beam angle Power supply AC : 100 V - 240 V / 1.5 A Reflector: 14°...
