Operating
manual

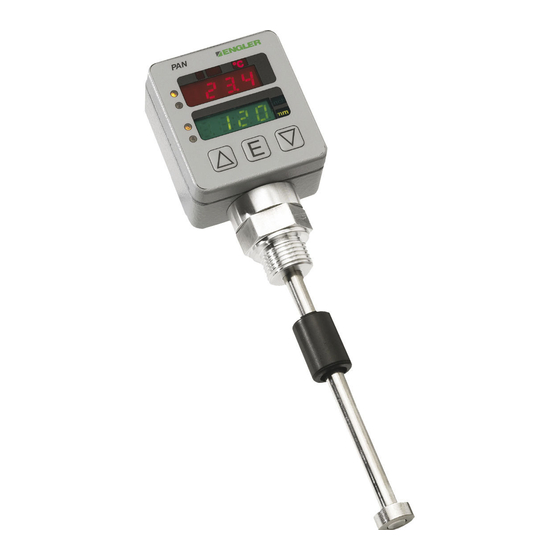

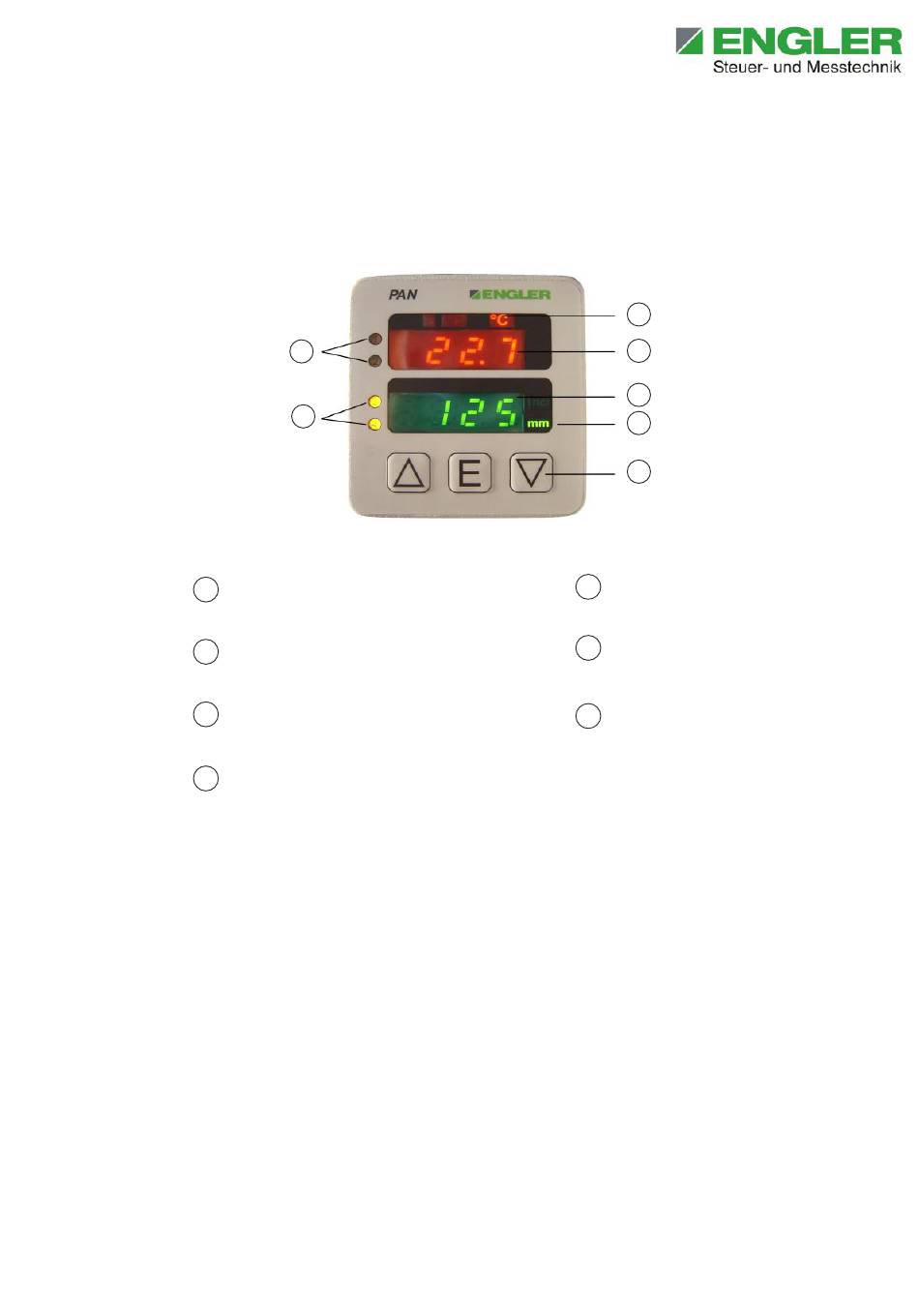

Front View
Status temperature steps 1 and 2
1
2
Status level steps 3 and 4
3
Temperature unit
4
Temperature display
Controller operat ion manual
Switching on:
After power-up PAN-1, device prints „PAN", Version and last 4 digits of its
ordernumber***. After that actual values will be displayed.
Menue-stages
· View parameters
· set parameters
Operation-button:
·scrolling or change value with ▲ and ▼
·adjustment with E
V07 - 30.09.2019 - be - G: mp, je - TS_EoNr_PAN-1_Bedienungsanleitung.cdr
PAN-1.xxxx
1
2
3
4
5
6
7
5
Level display
6
Level unit
Operating elements
7
page 1
Advertisement
Summary of Contents for Engler PAN-1 Series
- Page 1 Operating manual PAN-1.xxxx Front View Status temperature steps 1 and 2 Level display Level unit Status level steps 3 and 4 Operating elements Temperature unit Temperature display Controller operat ion manual Switching on: After power-up PAN-1, device prints „PAN“, Version and last 4 digits of its ordernumber***.
-
Page 2: Parameter Overview
Parameter Overview S. e. t . . Access to parameter setting S. P. . x. Switching point for chanal x. r . P. . x. Reset point for chanal x. o. u. t . x. Output switching behaviour for Kanal 1-4. H. -
Page 3: Menu Structure
Menu structure „E“ 2 sec Main parameters Access parameter setting Switching point SP 1 r P 1 Reset point step 1 out 1 Switching behaviour SP 2 Switching point r P 2 Reset point step 2 ▲ out 2 Switching behaviour SP 3 Switching point ▼... - Page 4 View parameters Condition: Operating mode Actual value display Key ▲ Display of the first parameter value “SP 1” Scroll through parameter list forwards / backwards Key ▲/▼ Continuous key activation: The parameter list scrolls automatically forwards Back to actual To key▼: value display By scrolling back to the first parameter, the actual value display is changed by using key ▼.
- Page 5 With the▲/▼ keys Scroll forwards / backwards through the parameter list. Selection with Right-hand decimal place blinks at numerical values key E function blinks, e.g. H nc, when parameter out. Set the value using key▲ + or ▼ – Keys▲/▼ If the value is out of range, the limit is automatically specified.
- Page 6 Select unit °C or °F Keys ▲/▼ Selected unit is displayed Key E Using the keys ▲ / ▼ Additional functions (see menu structure) can be accessed in the extended menu. To set the functions, proceed as described under point 9 to point 12. Scroll forwards through parameter list as far as “E n d”.
