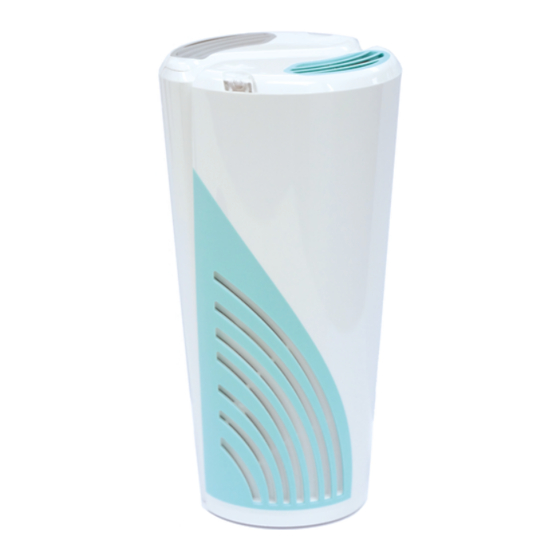

A-oneTech AIR HALO AH01 - Portable Air Sanitizer Manual
OVERVIEW
- Function Button
Long press: turn On & Off / Short press to cycle modes - Out Air-vent
Clean air exits here - Battery Cover
Rechargeable battery - Pairing Link
Communication connectors - In Air-vent
Contaminated air enters here - Charging Port
Micro-USB socket
KEY FEATURES
ACTIVE SANITIZATION
Plascide's Micro-lightning Anti-germ & VOCs technology
FILTER-LESS PROCESS
No germ-filled filters
No replacement cost
RAPID EFFECTIVENESS
Sanitize within seconds
CORDLESS PROTECTION
Hours of battery operation Wherever you go
PACKAGE CONTENT
- Air Halo Sanitizer
- Li-ion battery (Installed)
- Micro-USB to USB cable
- Manual
- Warranty Card
QUICK START GUIDE
Preparation before use:
- On the Battery Cover remove the battery protector with the pull-out tab
- Charge the Air Halo until battery is full Please see:
Charging
SAFETY PRECAUTIONS
- Handle with care. Air Halo can be damaged if dropped, burned, punctured or crushed.
- Do not operate if damaged and/or when the case is broken to avoid potential injury.
- Charge with a Micro-USB cable and a compatible USB power adapter at 2.1A or higher.
- Do not charge or operate with damaged Micro-USB cables or damaged USB power adapters.
- Keep dry during operation and storage. Do not operate if wet and/or immersed in any liquid to avoid potential injuries and/or damages to properties.
- Do not allow infants and/ or young children to operate unsupervised.
- Do not insert any objects into the in or out air-vents.
- Do not operate without the Out air-vent cover.
- Do not block the In or Out air-vents during operation.
- Do not incinerate the Li-ion battery. Recycle or dispose separately from household waste.
OPERATION GUIDE
- Long press horizontally to turn on/off
- Short press to cycle the different modes, LED will flash when cycled
Operational Modes
MODE | TYPICAL USAGE |
NORMAL | EVERYDAY OPTIMIZED POWER |
BOOST | MAX COVERAGE FOR DEMANDING SITUATION |
SILENT | LOWER POWER FRO QUIET ENVIRONMENT |
Mode Selection
Immediately after turning on, default mode is set to Normal.
Charging
- Charge with a Micro-USB cable
- Connect the Micro-USB plug to the Air Halo
- Connect the USB plug to a power adapter
CONDITION | LED |
BATTERY LOW | FLASH FOR ~60SECS~ |
CHARGING | FLASH 6 TIMES * |
BATTERY FULL | ON |
* LOW-LIGHT MODE: LED WILL TURN OFF WITHIN A SET TIME |
DEVICE IN A PAIR
Pairing allows two Air Halos to function as one when placed together or occupy the same cupholder. Control both from any button and charge from one USB cable.
Before Pairing, Switch ON both Air Halos
Pairing
- Place the rear flat face of the Air Halos together
- Align the Pairing Link at the bottom
- Both units will snap together magnetically
- Air Halos will begin pairing automatically
- Wait a few seconds for pairing to finish and do not separate the connection
- Once synchronised, paired control will now be enabled until you separate or switch off
Mode Selection when Paired
Press on either will control both units. For more details see: Function Button
Charge When Paired
Only one USB cable connected is required to charge both units when using a generic power adapter at 2.1A or higher.
For more details see: Charging
MAINTENANCES
Cleaning recommendation
Before cleaning please Turn Off.
- Surfaces: Slightly damp cloth
- In-vent: Cotton bud & vacuum
- Out-vent: Wash dust filter & vacuum
Surfaces
Use a slightly damp cloth to wipe clean any blemish or dirt on the surface.
In-vent
Vacuum the in-vent carefully, use a cotton bud to remove dirt and dust from between the vents.
Out-vent
- Insert a small and thin tool into the pinhole
- Push firmly until it clicks and/or the vent cover pops out
- Remove the dust filter, wash clean and dry
- Vacuum clean any dust or obstruction within
- Return the dry dust filter and align vent cover
- Push vent cover down until it locks securely
Battery Replacement
Replacing the Li-ion battery incorrectly will severely damage your Air Halo.
To replace the rechargeable Li-ion battery:
- Unscrew the fastener
- Remove the battery cover
- Replace battery with Positive (+) end facing downwards
- Re-fasten the battery cover
Battery Disposal
Damaged Li-ion battery should be recycled or disposed separately from household waste.
Repair
Maintenance repair by user is not advised.
For more details please see: Warranty
SPECIFICATIONS
- Model: AH01
- Power Mode: Silent / Normal / Boost
- Weight: 325g
- Air Sanitizer Technology: Plascide reactors
- Recommend Usage: 1m3
- Input: 5V 2.1A+
- Li-ion Battery: 18650 (cylinder-type)
- Dimension: 183mm (H), 63mm–83mm (W), 34mm–63mm (D)
SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
TROUBLESHOOTING
Diagnostic
SYMPTOM | DIAGNOSIS | ACTION |
LED FLASHES FOR 6 TIMES | BATTERY CHARGING | PLEASE SEE: Charging |
LED STOP FLASHING AFTER 6 TIMES | LOW-LIGHT MODE ON |
LED STEADY ON | BATTERY FULL | UNPLUG POWERED USB CABLE |
FAN TURN OFF& LED FLASHES FOR ~60SECS~ | BATTERY EMPTY | PLUG PWOERED USB CABLE |
NO RESPONSE FROM BUTTON |
FAN SLOW DOWN WHEN POWERED USB CABLE PLUGGED | USB POWER ADAPTER OR/AND POWERED USB CABLE INADEQUATE | REQUIRE USB POWER ADAPTER OR/AND POWERED USB CABLE RATED FOR 2.1A OR HIGHER |
FAN SLOW DOWN WHEN PAIRED AND POWERED USB CABLE PLUGGED |
NO RESPONSE AFTER REPEATED 6HR FULL CHARGING | BATTERY DEAD | PLEASE SEE: Battery Replacement |
VERY SHORT OPERATION AFTER REPEATED 6HT FULL CHARGING |
FAN/LED RESPONSE ONLY WITH POWERED USB CABLE PLUGGED |
NO LED/FAN RESPONSE WITH POWERED USB CABLE PLUGGED AND NO BATTERY INSTALLED | PRODUCT FAULT | PLEASE SEE: Warranty |
SERVICE & SUPPORT
Warranty
- Air Halo is covered by a manufacturer guarantee and warranty
- Self-repair and/or signs of tampering will void the warranty
- Repairs should only be carried out by a certified person
- Please refer to the included warranty card for more details
Support
For all the latest Air Halo's documentation, please visit the support webpage:
www.a-onetech.com.hk/en-downloads
If your warranty card or any accessories are missing, please contact your nearest service centre or alternatively contact the main office:
TEL: (+852) 21531812
FAX: (+852) 21531813
EMAIL: cs@a-onetech.com.hk
WEB: www.a-onetech.com.hk
This device complies with Part 15 of the FCC Rules
Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operations.
