Summary of Contents for Green Audio HDE 18G V2

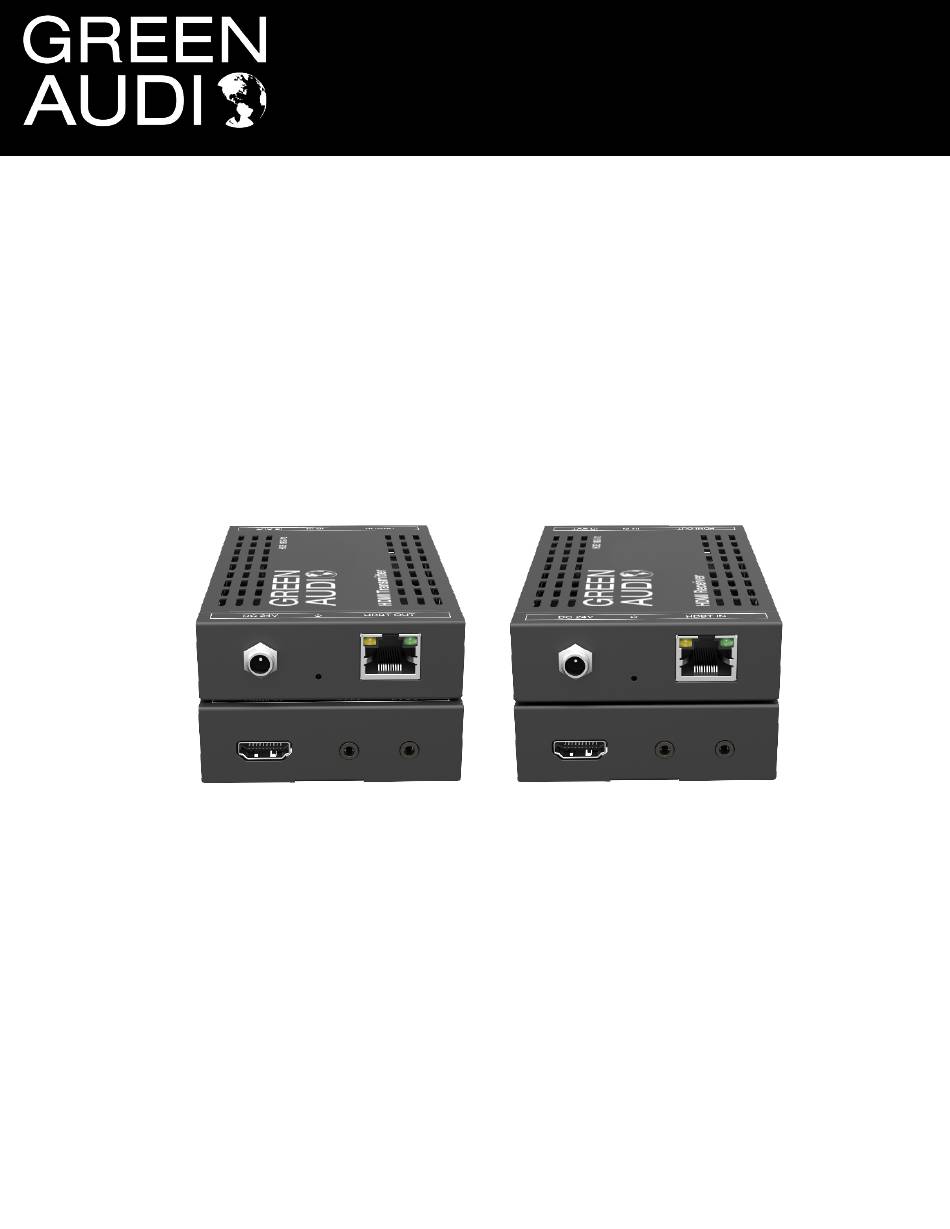

- Page 1 User Manual HDE 18G V2 HDMI 2.0 with IR over Twisted Pair Extender Set Ref: 210515 GREEN AUDIO MANUFACTURING SAVE TIME. HELP THE PLANET. © 2021 Green Audio Manufacturing. All Rights Reserved GreenAudioMfg.com...
- Page 2 Green Audio was founded in 2016 with an eye toward reduced environmental impact and labour efficiencies. We’ve developed a growing line of products to help you enjoy your leisure time at home with minimal impact on our planet.
- Page 3 HDE 18G V2 The Green Audio HDE 18G V2 extender kit transmits 4K60 4:4:4 HDMI and IR up to 40m (131ft.) and 1080p HDMI and IR up to 70m (230ft.) over a single twisted pair cable. The kit only requires power on either the transmitter or receiver and support EDID and CEC pass- through.
- Page 4 This manual is only intended to provide installation and operation instruction. It is not intended for any maintenance or repair. © 2021 Green Audio Manufacturing. All Rights Reserved GreenAudioMfg.com...
- Page 5 • Unplug the power cord when left unused for a long period of time. • If disposing of the unit, do not burn or mix with general household waste. The device must be disposed of per local regulations for electronic recycling. © 2021 Green Audio Manufacturing. All Rights Reserved GreenAudioMfg.com...
- Page 6 This package contains the following components and accessories: • 1x transmitter • 1x receiver • 1x power supply • 2x mounting ears Please Recycle After installation please recycle any unused packaging. © 2021 Green Audio Manufacturing. All Rights Reserved GreenAudioMfg.com...
-
Page 7: Panel Descriptions
• the LINK LED illuminates when there is a valid HDBaseT link between the ⑤ HDBT OUT transmitter and the receiver • the HDCP LED illuminates when the video contains HDCP content © 2021 Green Audio Manufacturing. All Rights Reserved GreenAudioMfg.com... - Page 8 • the LINK LED illuminates when there is a valid HDBaseT link between the ⑤ HDBT OUT transmitter and the receiver • the HDCP LED illuminates when the video contains HDCP content © 2021 Green Audio Manufacturing. All Rights Reserved GreenAudioMfg.com...
-
Page 9: Installation
Connect the power adaptor to the power port of the transmitter or receiver. The other device is powered via the twisted pair connection and does not require a separate power supply. © 2021 Green Audio Manufacturing. All Rights Reserved GreenAudioMfg.com... -
Page 10: Typical System Diagram
Typical System Diagram © 2021 Green Audio Manufacturing. All Rights Reserved GreenAudioMfg.com... -
Page 11: Troubleshooting
● Check the grounding and make sure all the components are properly grounded to a common ground. Improper grounding may cause damage to the receiver. If your problem persists after following the above troubleshooting steps, please contact your authorized reseller or Green Audio technical support. © 2021 Green Audio Manufacturing. All Rights Reserved GreenAudioMfg.com... -
Page 12: Warranty And Service
Installation specific wiring; c) malfunction resulting from abuse or misuse of the product; d) malfunction occurring after repairs have been made by anyone other than Green Audio or any of its authorized service representatives; e) acts of nature; f) lack of proper maintenance;...
