WEARABLE
User Manual
WS-2372
Thank you for purchasing the Sami wearable WS-2372. Read the
instructions carefully to obtain optimum results and preserve it for
future reference. Sami has developed wearable devices since 2015 and
we use the best components possible for the product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the wearable junior tech WS-2372 and is the answer not in the manual?

Questions and answers

Related Manuals for Sami wearable junior tech WS-2372

Summary of Contents for Sami wearable junior tech WS-2372

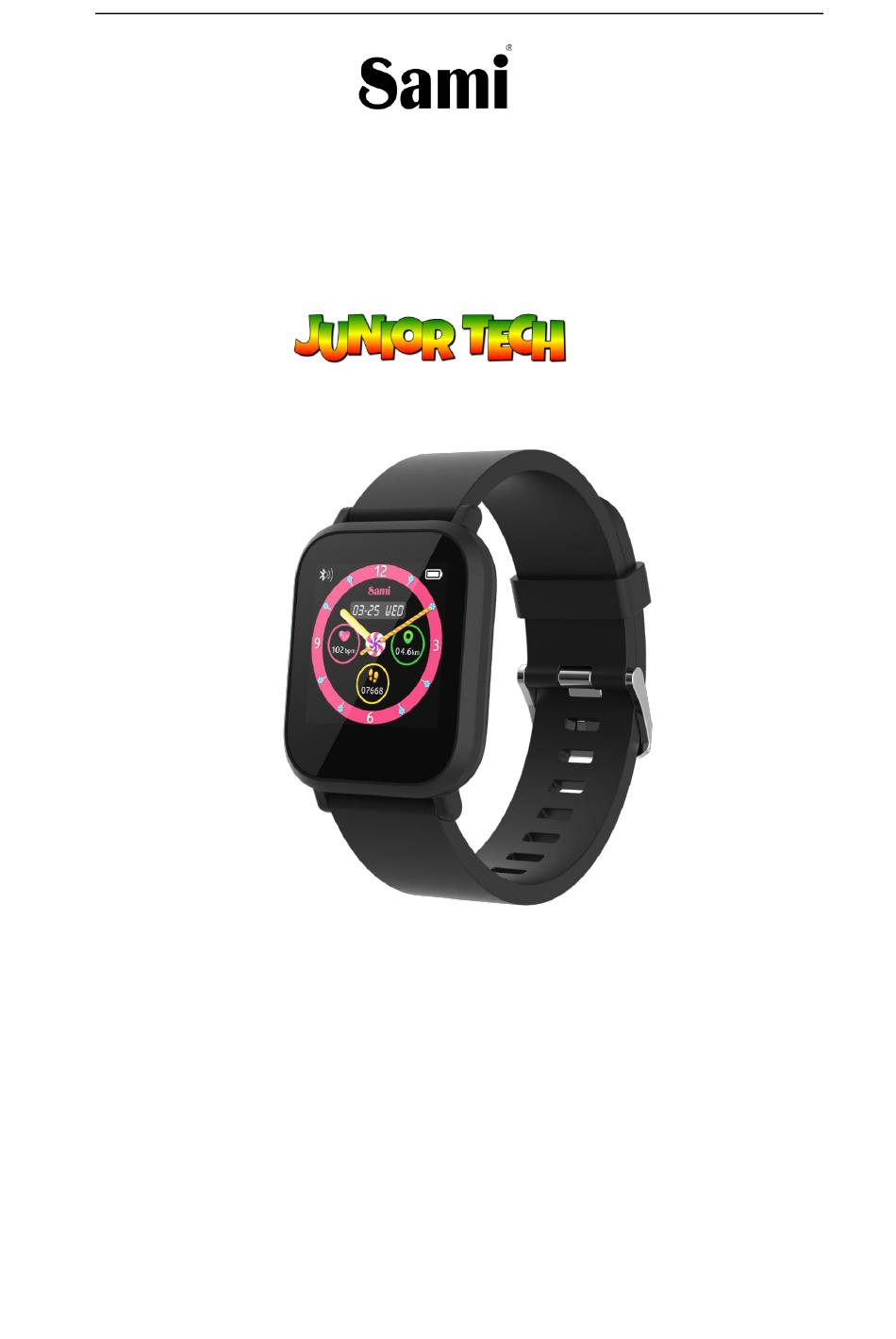

  • Page 1 WEARABLE User Manual WS-2372 Thank you for purchasing the Sami wearable WS-2372. Read the instructions carefully to obtain optimum results and preserve it for future reference. Sami has developed wearable devices since 2015 and we use the best components possible for the product.
  • Page 2 1. Quick start guide Overview 1. Touch screen 2. Heart sensor 3. Charging PIN  Make sure the pins on the charging cable fit correctly onto the charging terminals on the back of your smart watch.  Plug the big end of the USB cable to a power source and after successful charging, a charging icon will appear on the screen.
  • Page 3 Install “Fit4Kid” app on the phone Search and install the “Fit4Kid” app from Google Play or App Store. Or scan the following QR code to install the app directly. Connect the smart watch with the phone 1. Enable Bluetooth on your smart phone. 2.
  • Page 4 6. Please note that you must connect through the app and not by the bluetooth menu of your phone. 7. You will see pop up windows of permissions while installing, please accept all of them for the correct functioning specially referred to location and background execution.

  • Page 5: How To Use

    2. How to use  Turn on: Press and hold the center of the touch screen for 3 seconds.  Go to main menu: Slide from right to left on main interface; slide up and down to check more functions ...
  • Page 6 After turning on the smart watch, the main interface will be displayed. From the main interface: 1. Go to the main menu a. Slide from right to left to enter the main menu. b. Slide up and down to check more functions. c.
  • Page 7 No. 1 Brightness You can adjust screen brightness by click this icon. No. 2 Find phone When your smart watch is connected with Fit4Kid, you phone will ring by click this icon. No. 3 Shut down You can shut down your smart watch by click this icon. No.
  • Page 8 hold the center of the touch screen to choose the one you like. Daily activities The watch will record your daily activity automatically. Press the step icon to check pedometer, distance and calories. After synchronizing with APP, these sports data can be also checked in APP.
  • Page 9 Multi-Sport Tap the sport icon to enter the multi-sport mode. The smart watch has 4 sports modes: walking, running, hiking, and cycling. Choose a sport mode you want, and then do sports. The smart watch will record your exercise data. If you want to end the sports, slide the screen to right and tap the stop icon to finish your sports and save the data.
  • Page 10 Sleep monitor The smart watch automatically monitors your sleep from 10p.m. to 9a.m. When you get up the next day, the smart watch displays your sleep report about the time of total sleep, light sleep and deep sleep. If you’ve connected your smart watch with APP via Bluetooth, you can also check more detailed sleep report in the app.
  • Page 11 Alarm By tapping the alarm icon, you can see the alarm timer you’ve set in APP. When alarm time is up, the alarm icon will be animated and the smart watch will vibrate. Notification Slide the watch face from left to right, and then you can check your phone calls, SMS, QQ, WeChat, Whatsapp, Facebook and Twitter notifications, etc.
  • Page 12 take pictures remotely from your smart watch. Music playback control Tap the music icon to enter the music playback control interface. You can select the previous/next song, and play/pause music. To exit music playback control, slide the screen from left to right. Stopwatch Press Start to time ,To exit Stopwatch，slide the screen from left to right.
  • Page 13 the “Health Reminder” of APP to set the time intervals (minutes), start time and end time. Children games Tap this icon to enter the watch game function Pedometer Tap this icon to enter the Pedometer game. Completing the corresponding steps will show different characters Math...
  • Page 14 Tap this icon to enter the Math game. Each correct answer is 10 points. If you collect 100 points, you will pass the game. Puzzle Tap this icon to enter the Puzzle game, enter the game and the final rendering will appear. Tap 9 pictures on the screen to start the game randomly.
  • Page 15 Settings Tap the icon to enter the settings menu  About Tap this icon to check the Bluetooth Mac address, device name and firmware version of your smart watch.  Reset Tap this icon to reset your smart watch.  Restart...
  • Page 16 Tap this icon to restart your smart watch.  Shut down Tap this icon to shut down your smart watch. **** THIS IS NOT A MEDICAL INSTRUMENT, SO THE VALUES ARE APPROXIMATE CLEANING: In order to avoid any damage on the plating or printing of your wearable please do not use any chemical product for cleaning such as alcohol 96º.

  • Page 17: Technical Specifications

    TECHNICAL SPECIFICATIONS: Display screen: Full screen capacitive touch screen 1.30". Screen resolution: 240 x 240 pixels. Internal Memory: 32k RAM ROM 512k CPU: Pixart PAR2860QN Charge I/O port : USB magnetic charging cable Battery: Built in Li-Polymer 150 mAh Stand by time: 10-12 DAYS Working time: 3-5 DAYS G-Sensor: SC7A20 Health Sensor: HRS3301...

  • Page 18: Declaration Of Conformity

    Product description: Smart Band Type designation(s): WS-2372 Trademark: SAMI WEARABLE is in conformity with the relevant Union harmonization legislation: DIRECTIVE EMC 2014/30/EU DIRECTIVE LVD 2014/35/EU Standard CE (RED): DIRECTIVE 2014/53/EU Standard RoHS: 2011/65/EU: (RoHS) Restriction of Hazardous Substance.
