R

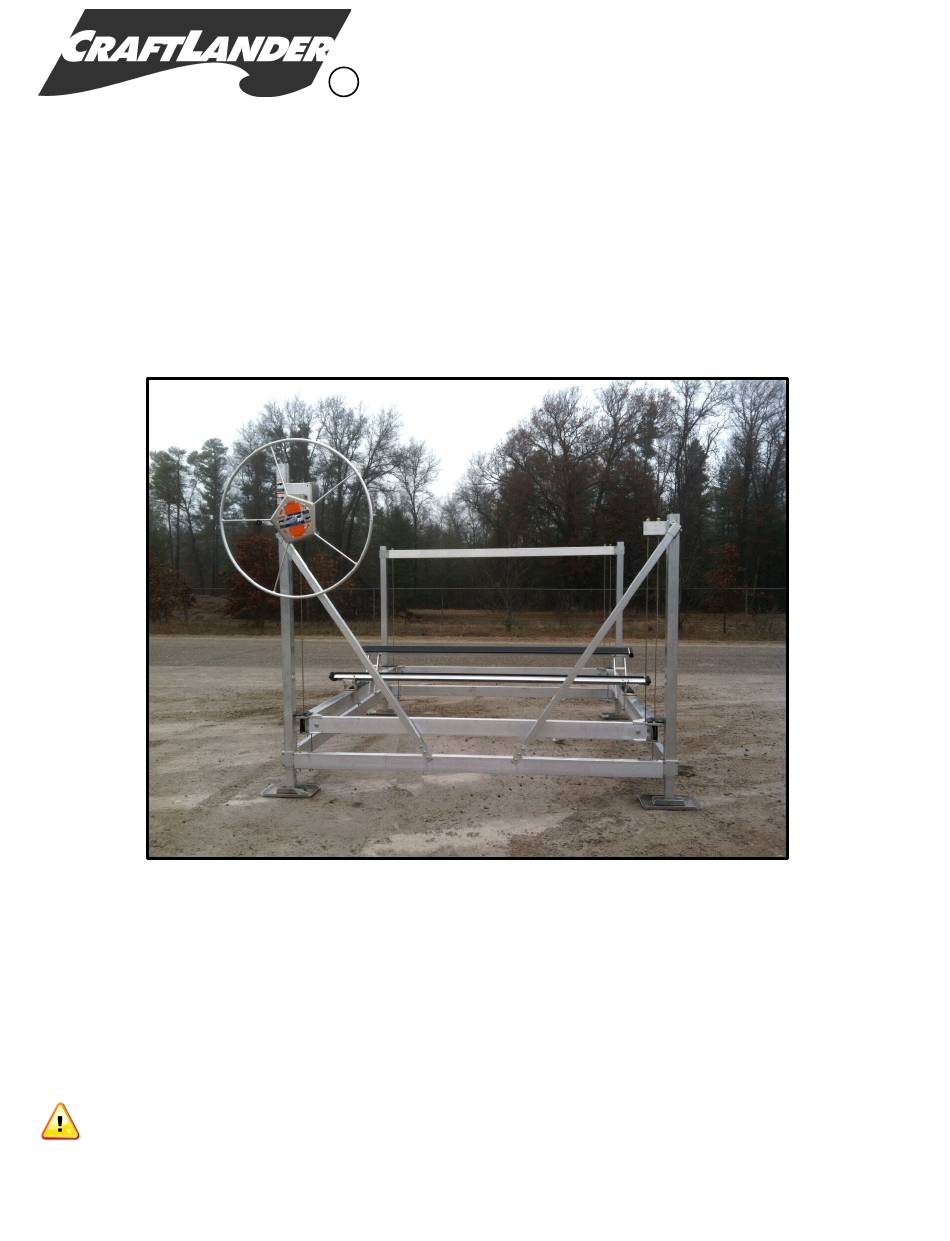

2500lb, 3500lb & 4500lb Vertical Boat Lift
Assembly Instruction Manual
Safety & Warranty Information for Models
MH-V25108, MH-V35108, MH-V35120
MH-V45108, MH-V45114, MH-V45120
R
Proudly Made in Michigan
By
NuCraft Metal Products
402 Southline Rd.
Roscommon, MI 48653
Manuals and drawings also available online at www.craftlander.com
Visit www.youtube.com/craftlander for additional assembly help
A-MH-253545-20manual, Rev 12/22
IMPORTANT: ONLY PERSONS THAT HAVE READ THE MANUAL AND SAFETY STICKERS
1
AND UNDERSTAND THE DANGERS OF OPERATION SHOULD OPERATE.
Page#
Advertisement
Summary of Contents for Nucraft CraftLander MH-V25108
- Page 1 Assembly Instruction Manual Safety & Warranty Information for Models MH-V25108, MH-V35108, MH-V35120 MH-V45108, MH-V45114, MH-V45120 Proudly Made in Michigan NuCraft Metal Products 402 Southline Rd. Roscommon, MI 48653 Manuals and drawings also available online at www.craftlander.com Visit www.youtube.com/craftlander for additional assembly help...
- Page 2 WARNING: Only persons who have read the manual and understand the dangers of operation should use. Main Lift Components 48” Wheel Winch Box Non Winch Column Non Winch (Kitty Corner) Column-Front Upper Cable Tube Winch Column Opposite Cradle Tube Right Rear Twin Winch Column Side Diagonal...
- Page 3 Visit www.youtube.com/craftlander for additional assembly help help Foot Bracket 3/8” x3/4” carriage bolts 3/8” x3 1/2” bolt Standard Leg: 2 1/2” sq. tube 54” lg. on V35 & V45 30” lg on V25 Foot Pad Start by finding the Foot Pads, Foot Pad Brackets and Legs that go together.
- Page 4 (5) Insert the 7/16” leg pin into the 3rd hole up (approx). This will give you room to work under the clamps. You can adjust after hoist is Winch Column complete if necessary. Lower Spreader Tube See sizing below (6) Using the Winch Column (96” long), slide the Spreader Tube over the “T”...
- Page 5 Non Winch Kitty Corner Side View 10) Put the 1/4” Galvanized Corner Plates on all Galvanized Corner Plates four corners. Use the existing bolts and attach the 3/8” whiz nuts on the underside. Do not tighten as some adjustments will be required when ‘squaring’ the hoist in the next step.
- Page 6 View of Non-Winch Column kitty corner from Winch Column Upper Cable Tube: 2”x3”x102” long on the V25 2”x4”x114” long on the V35 & V45 (13) Find the column clamps 3” square x 3” long for V25 or 3” square x 4” long for the V35 & V45. Slide over each column on the top side facing toward the inside of columns.
- Page 7 (15) The front Twin Beam will be the one with one cable coming out (15) The front Twin Beam will be of it. This will be placed in the the one with one cable coming out front of the hoist. The end of the Front of it.
- Page 8 (19) Move on to the corner opposite of the Winch corner. There will be two cables coming out the Rear Twin Beam. The one closest to the column with the long threaded end will be pulled through to be attached to the welded tube at the top of the column. The other one will go down through the hole of the welded bracket on the Left Cradle Tube to be attached to the lower frame.
- Page 9 (22) Next, attach the black polypro guide plates in each corner. Insert (5) 3/8”x1 1/2” bolt with washer and 3/8” whiz nut into each hole in the Front corner guide plate. You will also need to insert a 3/8”x1 1/4” bolt with a 3/8” Winch side whiz nut in the hole on the cradle bracket that the guide plate didn’t cover as well as the (3) holes in the bottom inside of the twin beam.
-
Page 10: Winch Installation
WINCH INSTALLATION Note : We use a 11:1 Winch on the V25 & V35 and a 16:1 Winch on the V45. (27) In the upper hole, insert (1) 1/2”x4” flanged bolt and 1/2” whiz nut into the Winch Column from the inside going to the outside. - Page 11 (34) Put a 3/8”x2 1/2” bolt through the knob and spin on a 3/8” whiz nuts. Don’t spin the nut all the way to the knob or else it won’t turn freely, leave a small gap. Put the rest of the bolt through the hole in the wheel plate and put a nut on the back side.
- Page 12 (38) Next you will need to find the black plastic caps. There will be (2) 3”x3” with the numbers 10-14 stamped in the inside and these will be put into the top of the Non-Winch Columns. The (2) 3”x3” with the number 5-8 will be used on the Winch and Winch Column Opposite.
-
Page 13: Safety Precautions
Safety Precautions!!! In order to prevent possible injury to both the operator and equipment it is extremely important that the lift wheel is always turned clockwise when raising the platform. Close attention should be paid to the decal on wheel raise and lower arrows. - Page 14 During the terms of the Limited Warranties on your aluminum Craftlander hoist, NuCraft Metal Products, Inc. (hereafter referred to as “NuCraft”) covers the cost of all parts needed to repair or replace any NuCraft supplied item that proves defective in material, workmanship or factory preparation. These replacements will be supplied by your dealer at no charge using new or remanufactured parts.
- Page 15 These stickers are similar to ones on the hoist wheel and column. Wheel brake works when cranking in the up direction only. Stickers say: Failure to follow below instructions will result in uncontrolled spin down and possible personal injury and or hoist damage. Lift wheel must be turned clockwise for lifting.
- Page 16 These stickers are similar to ones on the hoist wheel and column. Wheel brake works when cranking in the up direction only. Stickers say: Failure to follow below instructions will result in uncontrolled spin down and possible personal injury and or hoist damage. Lift wheel must be turned clockwise for lifting.
- Page 17 During the terms of the Limited Warranties on your aluminum Craftlander hoist, NuCraft Metal Products, Inc. (hereafter referred to as “NuCraft”) covers the cost of all parts needed to repair or replace any NuCraft supplied item that proves defective in material, workmanship or factory preparation. These replacements will be supplied by your dealer at no charge using new or remanufactured parts.
- Page 18 Your NuCraft Limited Warranties do not cover the costs of normal/scheduled maintenance of your aluminum Craftlander hoist. Your NuCraft Limited Warranties do not cover the costs of repairing damage or conditions caused by fire or accident; by abuse or negligence; by misuse: by tampering with parts; by improper adjustment or alteration; or by any changes made to your aluminum Craftlander hoist;...
Need help?
Do you have a question about the CraftLander MH-V25108 and is the answer not in the manual?
Questions and answers

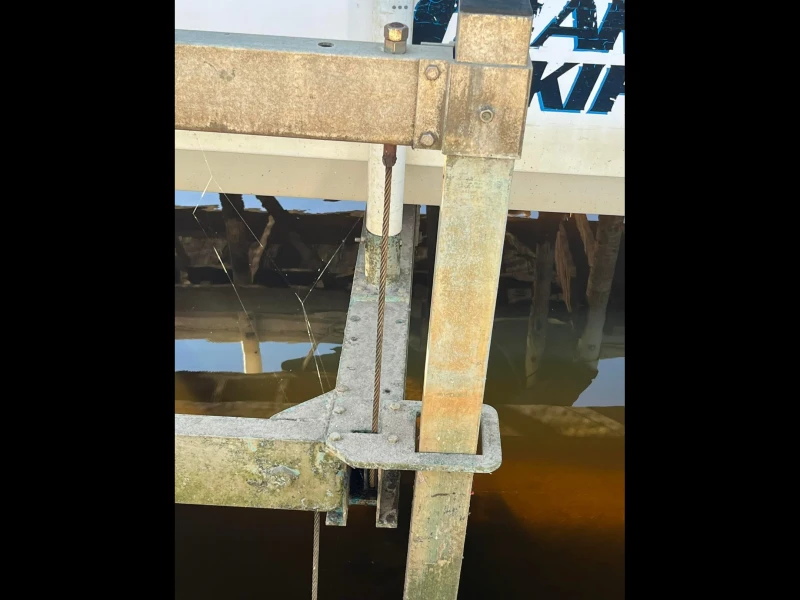

I have a 1995 nu craft model 40108V lift. I need to replace the main hoist cable. Im trying to find recommended size of the cable, from your item descriptions it looks like a lot of 1/4 inch but the cable that is in place now is larger than that. Thoughts?
