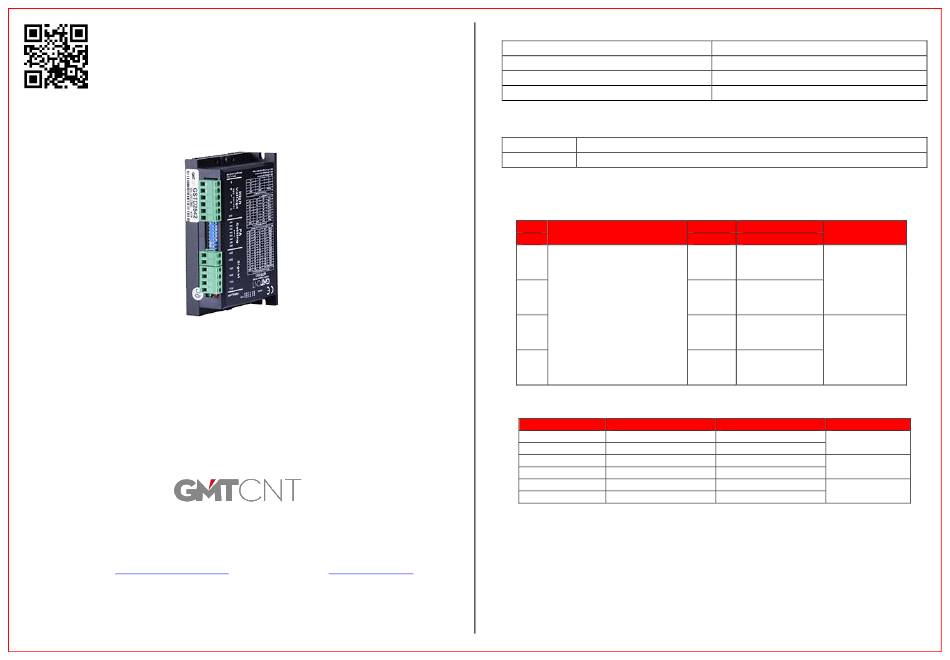

GMTCNT GSTD2556 User Manual

GMTCNT STEPPER MOTOR DRIVER
MODEL: GSTD2556
User Guide
Attention !
Read the user manual carefully before using the device!
Responsibility for damages, losses and personal accidents caused by not following the warnings in
the user manual belongs to the user. In case of failure to comply with the instructions, the product
will be out of warranty.
GMT ENDÜSTRİYEL ELEKTRONİK SAN. VE TİC. LTD. ŞTİ.
Çubuklu Mahallesi Boğaziçi Caddesi No:6/B 34805 Beykoz / İstanbul / Türkiye
T +90 (216) 668 00 06
Web site: http://www.gmtcontrol.com/
F +90 (216) 668 00 03
E-Mail: gmt@gmtcontrol.com

1. Technicial Specifications

Main Supply Voltage
Current
Input Frequency
Operation Temperature

2. Stepper Driver LED Status

Green LED It lights up when the device is energized.
Red LED It lights up when the drive is faulty or the motor is not connected.

3. Stepper Driver Ports

3.1 Stepper Driver Power and Motor Connection Port

1
Stepper Drive Inputs
2
3
4
Stepper Motor Cables
Connection Pins
5
6

3.2 Control Signal Input Ports

Port Symbol
1 PLS+
2 PLS-
3 DIR+
4 DIR-
5 *ENA+
6 *ENA-
*Enable Input: This input enables or disables the stepper motor driver. In factory settings, this input
comes in normally closed contact state and no external signal is required.
24-60VDC
5.6A
200kHz
Between 0°C ile +70°C
GND Power Input -
24-60VDC
VCC Power Input +
Stepper Motor
A+ Connection Input
Phase A+
Motor Phase A
Stepper Motor
A- Connection Input
Phase A-
Stepper Motor
B+ Connection Input
Phase B+
Motor Phase B
Stepper Motor
B- Connection Input
Phase B-
Port name Explanation
Pulse signal + Compatible with
Pulse signal - 5V and 24V
Direction signal +
Compatible with
Direction signal - 5V and 24V
Enable signal +
Compatible with
5V and 24V
Enable signal -
