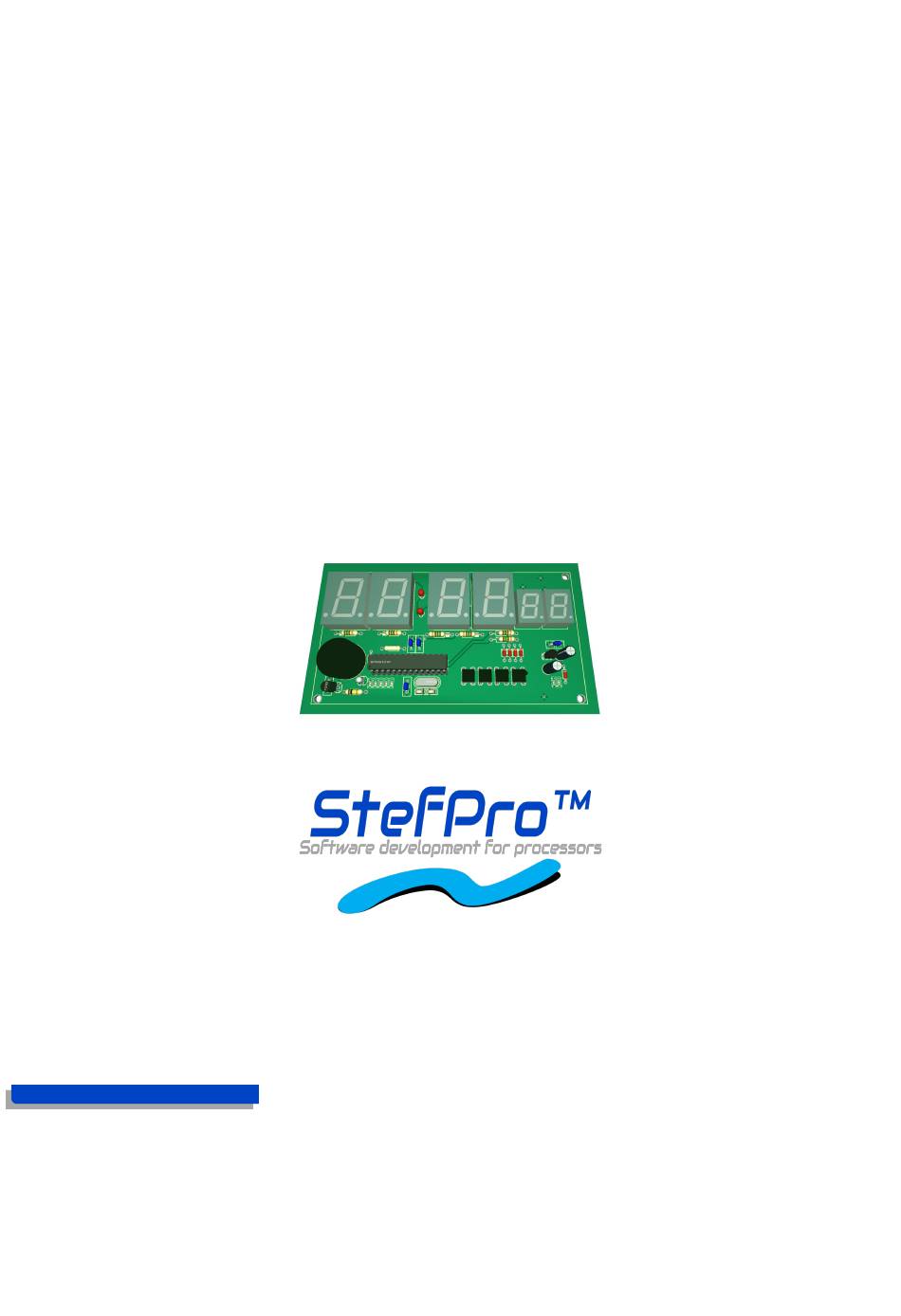

SPK2101.01
Assembly kit - Six digit dcf clock
for small display, with temperature display
Assembly plan for the kit
Version: Firmware 1.80-146
StefPro UG (haftungsbeschränkt) & Co. KG
Theilenmoorstr. 11
26345 Bockhorn, Germany
Phone: +49-4452-709175
Web: https://www.stefpro.biz/
E-mail: info@stefpro.biz
Assembly plan version 2.0.1 - Valid from 22.03.2021.
Advertisement
Chapters
Table of Contents
Related Manuals for StefPro SPK2101.01
Summary of Contents for StefPro SPK2101.01
- Page 1 SPK2101.01 Assembly kit - Six digit dcf clock for small display, with temperature display Assembly plan for the kit Version: Firmware 1.80-146 StefPro UG (haftungsbeschränkt) & Co. KG Theilenmoorstr. 11 26345 Bockhorn, Germany Phone: +49-4452-709175 Web: https://www.stefpro.biz/ E-mail: info@stefpro.biz Assembly plan version 2.0.1 - Valid from 22.03.2021.
-
Page 2: Table Of Contents
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Table of Contents Table of Contents Safety Application and function description Function description Alarm Function Technical data Basic circuit Bill of material Basic assembly Connectors X-DC : DC Power input : Print plug 2 pole... - Page 3 StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 DCF active Receiving brightness Hour of synchronization Receive state display DCF input pull up DCF input invert Power save pin invert DCF sensitivity DCF exit Clock Settings Set hour Set minute Set year...
-
Page 4: Safety
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Safety Follow the manual This assembly kit is only safe in operation if all instructions are read in this datasheet. The assembled kit is called in the following module. General understanding of safety By the module there are no hazard under normal use. -
Page 5: Application And Function Description
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Application and function description Application and function description Function description This IC can analyze the DCF77 signal, which is received by a receiver and demodulated. Thereceived time and date can output directly to a 7-segment displays. -
Page 6: Basic Circuit
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Basic circuit Basic circuit Figure 1: Basic circuit of SPK2101.01 part 1 Figure 2: Basic circuit of SPK2101.01 part 2 Basic circuit - Function description Page 6 of 42... -
Page 7: Bill Of Material
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Bill of material Quantity Name Value Package Scope of delivery D1,D4,D5,D6,D7,D8 1N4148 R1,R2,R4,R5,R6,R7 150 1/4 0207 100k 1/4 0207 10µH R-1016 C3,C5,C6,C8 100n C1,C2 Kerko 27p 8MHz HC49/U 78L05 TO92 IC-Sockel 28 Small... -
Page 8: Basic Assembly
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Basic assembly Basic assembly The basics of electronics and PCB assembly can be found in the document:"Grundlagen der Elektrotechnik, Grundlagen des bestückens von Platinen".Unfortunately currently only available in German. Figure 3: Basic assembly of SPK2101.01 Assembly plan with names Figure 4: Basic assembly of SPK2101.01 1... - Page 9 StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Figure 5: Basic assembly of SPK2101.01 step 1 First, solder flat components, such as resistors, diodes and coils. Attention: the coil L1 is shown wrong, this is [brown, black, black, silver]. Figure 6: Basic assembly of SPK2101.01 step 2 Now you can solder ceramic capacitors and the quartz.
- Page 10 StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Figure 7: Basic assembly of SPK2101.01 step 3 Now comes the IC socket for the SPM2121P. The IC SPM2121P can also be soldered directly, but should not. Figure 8: Basic assembly of SPK2101.01 step 4 Now it's time for the IR transisitors and TO92 IC's, be sure to leave a little space to the PCB.
- Page 11 StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Figure 9: Basic assembly of SPK2101.01 step 5 The buttons and Elko's are a bit higher and are therefore now their turn. Figure 10: Basic assembly of SPK2101.01 step 6 Finally, the LEDs and 7 segment displays (these are to be ordered separately), these are to be soldered directly onto the PCB.
-
Page 12: Connectors
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Figure 11: Basic assembly of SPK2101.01 step 7 The finally assembled pcb, only the wires for the supply voltage and the DCF receiver are missing. Connectors Figure 12:Connector description for module SPP2100.0 Here, the leads are soldered directly to the pins on the circuit board. - Page 13 StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 N.C. Do not connect DCF in Digital input DCF signal input DCF ps Digital Output DCF PowerSave output Power 5 volts DC, 30mA Never solder the DCF module directly onto the circuit board, even if the ELV module suggests it. Please connect this with some stranded wire to allow a certain distance to the display.
-
Page 14: Properties Of The Components
7 segment displays The seven-segment display LD1 must have a common anode. Via R1 the brightness of the LEDs can be set, it should be noted, that the maximum current with direct control by the SPK2101.01 is 40 mA. Possible displays For big displays SA08-11SRWA in red, SA08-11YWA in yellow, and for small displays SA52-11SRWA in red, SA52-11YWA in yellow by Kingbright. - Page 15 StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Figure 14: Differences of display readability brightness level 25 The displays in figure 13 and 14 are from left to right: SA52-11SRWA SA52-11EWA SA52-11YWA SA52-11GWA SA52-11QBWA-D Figure 15: SA08-11SRWA left without and right with contrast pane with back light.
-
Page 16: Calculate The Series Resistor For One Led
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Calculate the series resistor for one LED UDS ≈ 0 ILED < 35 mA Calculate the series resistor for two LED UDS ≈ 0 ILED < 35 mA DCF module properties The module has to be able to work with an operating voltage of 5V (some modules have an operating voltage range of 1.2 to 15 volts, these are... -
Page 17: Tested Modules
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 The receiving LED should at good reception signal flash every second for 100 ms and 200 ms. Does the receiving LED goes off every second for 100 ms and 200 ms, then the polarity is wrong. Unfortunately, you then connected a wrong module, this can't be analyzed with the microcontroller. -
Page 18: Quartz - Accuracy Of The Time
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Quartz - Accuracy of the time The quartz, microcontroller, quartz capacitor combination decisively determine the accuracy of the clock. Since the kit is delivered unassembled, prior coordination is not possible and only uncalibrated accuracy is ensured. -
Page 19: Properties Of Light Sensor With Phototransistor
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Colors of thin wires: red: plus supply voltage (<= + 12 Volt) black: minus supply voltage white: Buzzer signal from the IC SPK2101.01 orange: plus MP3 Player Module (+5 Volt) green: minus MP3 Player Module... -
Page 20: Temperature Sensor
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 In the case of the BPW42 and similar photo transistors in the LED diode housing, the incidence of light must take place as follows in order to achieve the best result: NOTICE... - Page 21 StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 The calibration only refers to the offset, the linearity cannot be changed! Properties of the components - Quartz - Accuracy of the time Page 21 of 42...
-
Page 22: Installation The Dcf Clock
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Installation the DCF clock Installation the DCF clock Figure 18: Align the DCF antenna The external antenna receives the DCF77 signal and should be directed to Frankfurt, as shown in Figure 18. - Page 23 StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 „SEArCH„ Search the fifty-ninth second. „rEAdXX„ read the dcf time. Installation the DCF clock - Synchronize with active display Page 23 of 42...
-
Page 24: Emitted Electrical Disturbances By The Display
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Emitted electrical disturbances by the display In the near field generates the display, by the fast on and off switching of the LEDs, disturbances.These depend on the brightness of the display. For EMC / CE conformity hese disturbances are uninteresting because they are strong only in the near field and occur only under 30 MHz.For sensitive... - Page 25 StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Figure 22: Measurement with brightness level 25 Figure 22 shows on the display brightness set to full brightness level 25 and it will be something displayed. There can be seen big disturbances in the near field.
-
Page 26: Button Description
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Button description Button description Overview of buttons Button functions Menu+ Opens the menu, next setting Menu- Opens the menu, previus setting Plus or + Function key, usually +, On or jump into and exit a submenu... -
Page 27: Normal
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Level 1 Level 2 ⇓ ⇓ Info section ⇓ ⇓ IC number Firmware ⇓ ⇓ version ⇓ ➟ ↻ : Next step in main menu. : Next step in sub menu. -
Page 28: Alarm
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Alarm With plus (+) you enter the sub-menu Alarm. ALARM Alarm enable Enables the alarm. Plus (+) sets the alarm to "AEN ON" and minus (-) sets it to "AEN OF". ALARM ON... -
Page 29: Alarm Maximum Time
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Alarm maximum time Use plus (+) and minus (-) to set the maximum time in minutes for the alarm.The number can be 2-60. Alarm after time Alarm exit With Plus (+) you exit the sub-menu alarm. -
Page 30: Brightness Automatically
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Brightness automatically This allows to turn on with plus (+) and off with minus (-) the auto Brightness automatically on brightness. Brightness automatically off Brightness speed Use plus (+) and minus (-) to set the speed of auto brightness. -
Page 31: Activate Standby
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Activate standby With plus (+) activate and minus (-) deactivate the standby mode, in this case the display is switched off or darkened. This depends on the "standby brightness".The clock and alarm function are still available, the time, date or temperature are simply not displayed. -
Page 32: Dcf Active
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 DCF active Use plus (+) and minus (-) to set whether or not DCF reception is active. If the DCF reception is deactivated, the clock only works with the built-in quartz clock.Note that in this case the time base must be set as well as possible. -
Page 33: Dcf Input Pull Up
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 DCF input pull up DCF77 input pin with pullup AU: Pull Up is automatically ( default ). AU is activated by pressing the plus (+) button. ON: Enables the pull-up resistor OFF: Disables the pull-up resistor DCF input pull up auto ON and OFF is activated and toggled by the minus (-) button. -
Page 34: Dcf Exit
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 DCF exit With plus (+) you exit the sub-menu DCF DCF Exit Clock Settings With plus (+) you enter the sub-menu clock. clock Set hour Use plus (+) and minus (-) to set the hour. -
Page 35: Set Day
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Set day Use plus (+) and minus (-) to set the day, limit by month. The number can be 1- 28, 29, 30, 31. change day Day of week Monday - Montag... -
Page 36: Calibrate Quartz
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Calibrate quartz With plus (+) and minus (-) the quartz can be calibrated, a positive value increases the period time and a negative value reduces it.The period should also be set as precisely as possible to 1ms or 1kHz (for frequency measurement). -
Page 37: Attachment
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 Attachment Attachment Bootloader handling Start the IC/module/device in bootloader mode 1. Switch off the IC/module/device. 2. Connect the UART adapter (USB → 3.3 volts or 5 volts UART or RS232 → 3.3 volts or 5 volts UART). -
Page 38: Segment Characters
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 7 segment characters The symbolism of each character: Change log Change log Safety 20.03.2017 - 1.0.3 - ADD Add ESD note DCF module properties Change log - 7 segment characters Page 38 of 42... -
Page 39: Power Supply Properties
StefPro - www.stefpro.biz - info@stefpro.biz - SPK2101.01 25.12.2022 21.11.2016 - 1.0.1 - ADD Add list of tested modules 20.03.2017 - 1.0.3 - ADD Update list of tested modules, add standard pin assingment Power supply properties 21.12.2019 - 1.0.5 - ADD... -
Page 40: Liability, Warranty And Copyright Notice
The manufacturer is not responsible for all personal injury and property damage caused by improper operation. Warranty StefPro warranty only for the Kit and their firmware. The warranty is exclusively limited for the replacement of the IC within the warranty period Liability, warranty and copyright notice - Definitions... -
Page 41: Copyrightnotice
Copyrightnotice The circuitry and firmware to the kit and module from StefPro are protected by copyright. Unauthorized reproduction or distribution of Modules with this program or any portion of it. This is pursued bothcriminal and civil law, and may result in severe penalties and compensation for damages. -
Page 42: Table Of Contents
This modules or devices comply with the EU directive on electronic and electrical equipment (WEEE regulation)and therefore may not be disposed of with household waste. Dispose of the device over your local collection center for electronic equipment! WEEE-Reg.-Nr.: DE 58929072 ( StefPro UG (haftungsbeschränkt) & Co. KG ) DE 78089358 ( StefPro Einzellunternehmen bis zum 01.01.2015 ) Impress Impress StefPro™...
