SA124F
4 WAY AMPLIFIED SPLITTER
The SA124F is a low noise 4 way amplified splitter designed to distribute digital TV signals.
•
Compact in design.
•
12dB gain per port
•
The LED power indicator allows the user to easily confirm the unit is operational.
•
Remotely powered via power supply.
Specialists in Digital TV Distribution Solutions
INSTALLATION MANUAL

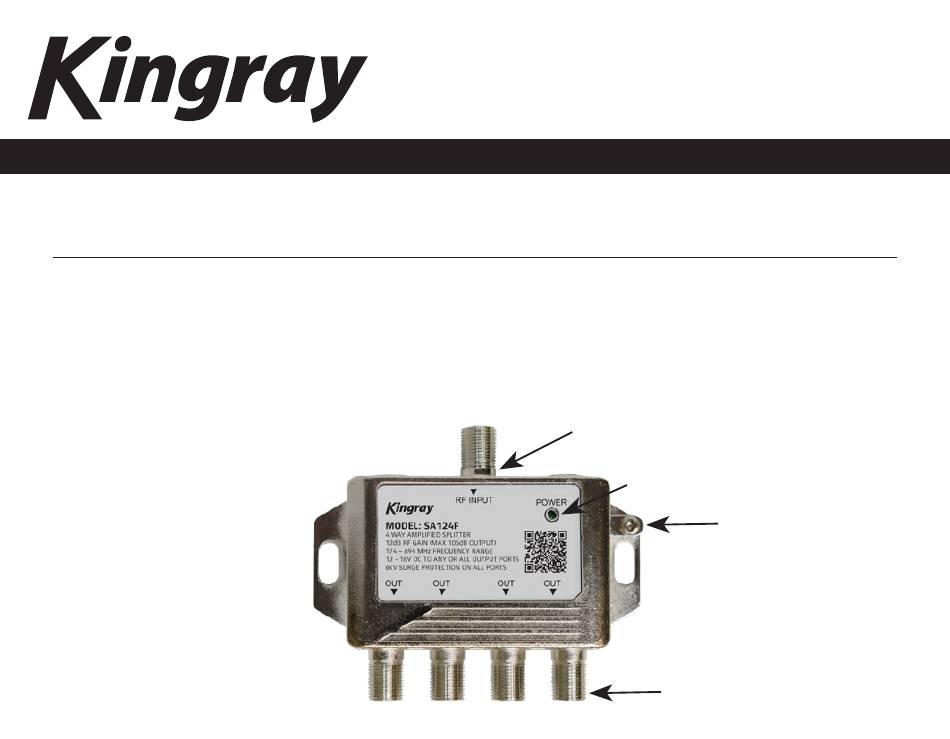

Antenna input
Power ON LED.
Grounding Screw
Output Connectors
Advertisement
Summary of Contents for Kingray SA124F
- Page 1 Specialists in Digital TV Distribution Solutions INSTALLATION MANUAL SA124F 4 WAY AMPLIFIED SPLITTER The SA124F is a low noise 4 way amplified splitter designed to distribute digital TV signals. • Compact in design. • 12dB gain per port • The LED power indicator allows the user to easily confirm the unit is operational.
- Page 2 INSTALLATION • Connect the lead from the antenna to the input of the SA124F. • The outputs are then cabled to 1 or more TV points/wall outlets (maximum 4). • Connect the power injector to one of the TV points/wall outlets. You should then see the LED is active on the SA124F, indicating the device is on.
