Summary of Contents for Corsynth C100

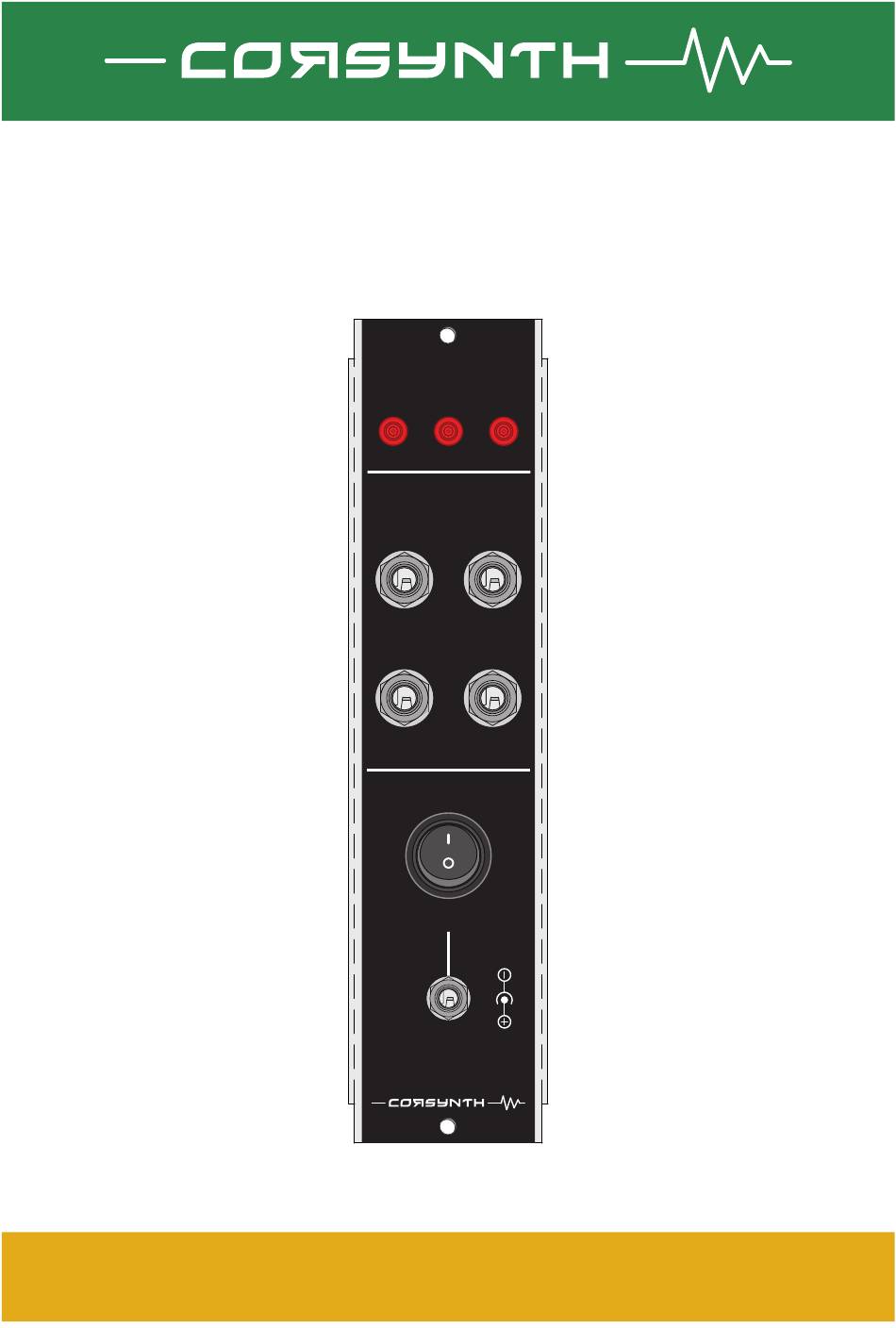

- Page 1 C100 power system C100 POWER MODULE -15V +15V VOLTAGE SOURCES - 5V + 2.5V + 5V + 10V INPUT DC INPUT USER MANUAL...
- Page 2 The C100 Power System is composed of : -15V +15V - A C100 Power module, with the external PSU input , the on / o switch, the rail status leds but also it's is a Voltage Sources module. VOLTAGE SOURCES...
- Page 3 C100 POWER SYSTEM C100 POWER SYSTEM POWER MODULE C100 POWER MODULE Power supply indicator led (+15V ) -15V +15V Power supply indicator led (-15V ) Power supply indicator led (+5V ) VOLTAGE SOURCES - 5V + 2.5V Voltage source output...
-
Page 4: Control Description
+ 5V + 10V the PSU. ON / OFF SWITCH - DC INPUT The On / O Switch turn on and o the internal power supply. The external brick PSU is connected to the DC input. INPUT DC INPUT HTTP://WWW.CORSYNTH.COM... -
Page 5: Power Module
Place the DC / DC converter board and the Distribution Board where you want to install them inside the cabinet. Check that the cables provided are long enough to connect the C100 Power module to the DC / DC converter and the Distribution Board to the DC / DC converter. - Page 6 C100 Power System STEP 2 Using the provided spacers screw the DC / DC board and the Distribution board to the cabinet. Don’t install the boards without the spacers! In case you want to drill the holes in your cabinet to install the boards you can nd the templates with the holes distances and diameters in the page 8 of this manual.
- Page 7 C100 power system STEP 3 Connect the DC / DC converter board to the C100 Power modules using the con- nector with two cables. The connector is keyed so is not possible to connect it backwards. STEP 4 Connect the DC / DC converter board to the Distribution Board using the connec- tor with 4 cables.
- Page 8 - Connect de external brick PSU to the DC input located in the front panel of the C100 Power Module. - Connect the power supply to the wall socket and turn on the C100 Power Module. The power supply leds indicators should turn on. In case they don’t , turn o the C100 Power Module and check if everything is connectd as has been indicated in this installation guide.
-
Page 9: Drilling Templates
C100 power system DRILLING TEMPLATES These templates are provided in case you want to drill your case to install the C100 Power System. All measures are in millimetres. If you print this template be sure that it’s printed in its original size. You can place the board in the top of the paper and check if the holes align perfectly. -
Page 10: Distribution Board
C100 power system DISTRIBUTION BOARD This template corresponds with the Distribution Board v1.5 If your Distibution Board is version 1.0 please go to page 10. All holes have the same diameter HTTP://WWW.CORSYNTH.COM... - Page 11 C100 power system DISTRIBUTION BOARD v1 This template corresponds with the Distribution Board v1.0 59,5 71,5 All holes have the same diameter HTTP://WWW.CORSYNTH.COM...
- Page 12 C100 power system MODULAR LEVEL MODULAR SYNTHS HTTP://WWW.CORSYNTH.COM...
