Comelit Simplebus 2 MT SB2 01 Technical Manual
  1. Manuals
  2. Brands
  3. Comelit Manuals
  4. Intercom System
  5. MT SB2 01
  6. Technical manual

Comelit Simplebus 2 MT SB2 01 Technical Manual

Digital video door entry system with 2 wires
Hide thumbs Also See for Simplebus 2 MT SB2 01:
Table of Contents

Advertisement

Quick Links

Download this manual
I
GB
F
NL
ITALIANO
MANUALE
TECHNICAL
MANUEL
TECHNISCHE
FT SB 07
TECNICO
MANUAL
TECHNIQUE
HANDLEIDING
MT SB2 01
Sistema Videocitofonico Digitale a 2 fili
Digital video door entry system with 2 wires
Système visiophonique numérique à 2 fils
Tweedraads digitaal video-intercom systeem
02/2004
GROUP S.P .A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Simplebus 2 MT SB2 01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comelit Simplebus 2 MT SB2 01

Summary of Contents for Comelit Simplebus 2 MT SB2 01

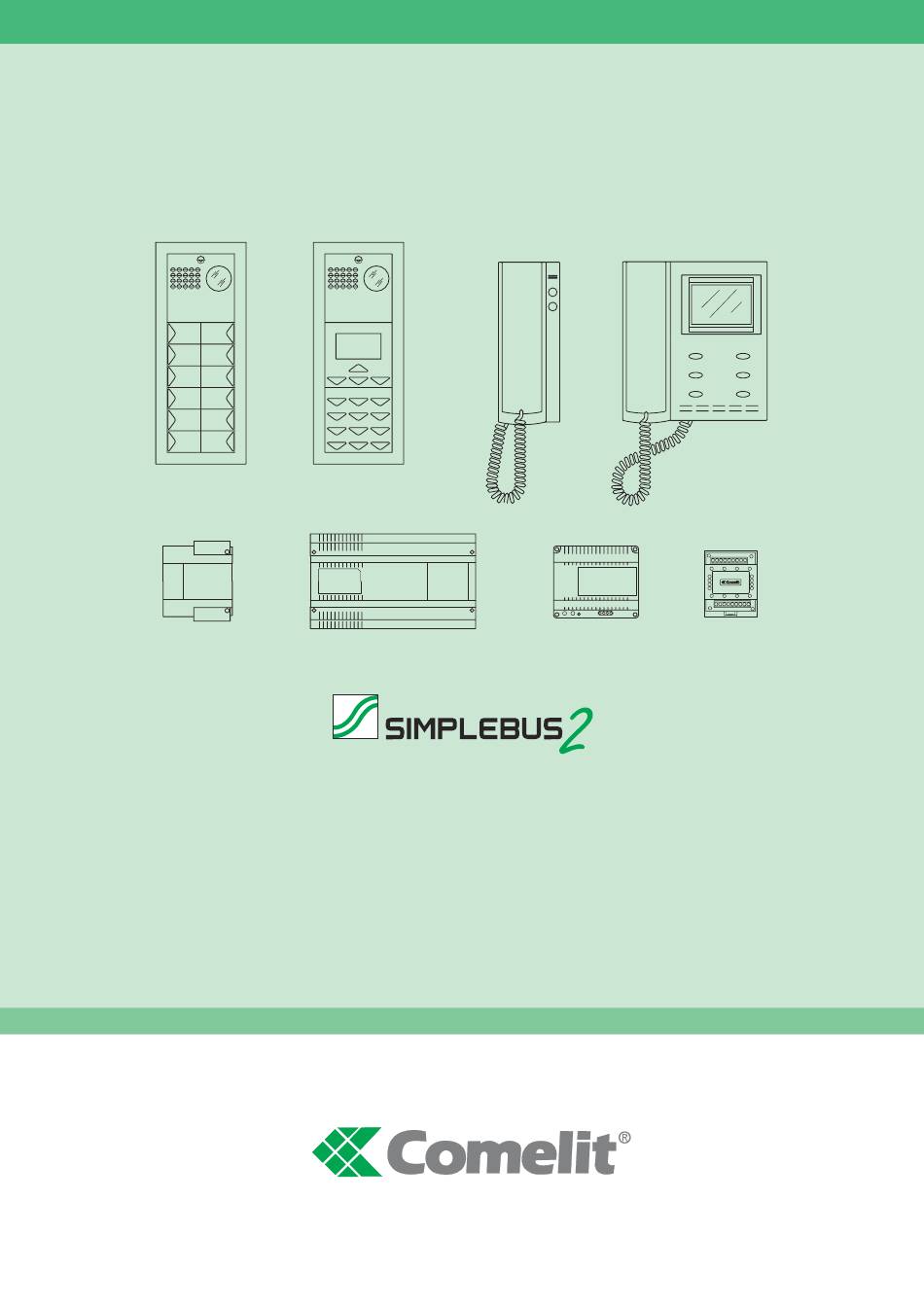

  • Page 1 ITALIANO MANUALE TECHNICAL MANUEL TECHNISCHE FT SB 07 TECNICO MANUAL TECHNIQUE HANDLEIDING MT SB2 01 Sistema Videocitofonico Digitale a 2 fili Digital video door entry system with 2 wires Système visiophonique numérique à 2 fils Tweedraads digitaal video-intercom systeem 02/2004 GROUP S.P .A.

  • Page 2: Table Of Contents

    MT SB2 01 Simplebus2 System SUMMARY INSTALLATION RULES page 37 GENERAL INFORMATION page 24 • • CONFIGURATION OF THE DEVICES page 40 WARNINGS page 24 • • NOTES ON OPERATION page 43 INTERNAL VIDEO UNITS page 24 • • WIRING DIAGRAMS page 88 INTERNAL TELEPHONE HANDSETS page 28...

  • Page 3: General Information

    All the pieces of apparatus making up the system must only be used for the purpose they were designed for. COMELIT GROUP S.p.A. declines any responsibility for incorrect use of the apparatus, for modifications made by third parties for any reason and purpose, for the use of accessories and materials which are not originals.

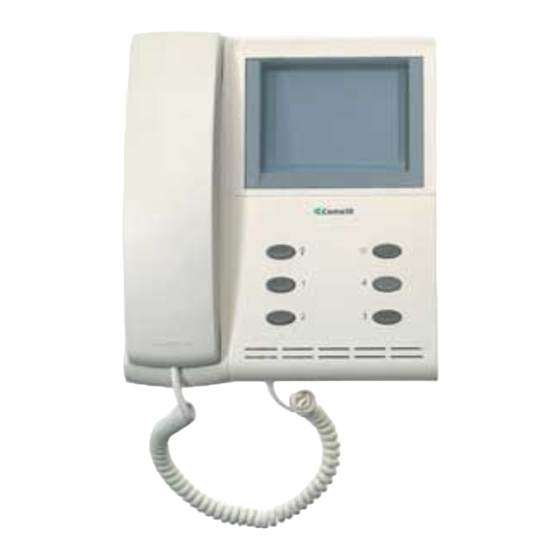

  • Page 4 MT SB2 01 Art. 4700W/I Art. 4701W/A Videocom series semi flush-mounted Monitor (long tube) Videocom series surface-mounted Monitor Technical characteristics: Technical characteristics: Videocom series monitor with dimensions: 193x223x65, flush-mounted Videocom series monitor with dimensions: 193x223x65, (68mm of depth on wall), white RAL9010 surface-mounted, white RAL9010, with 4.5”...
