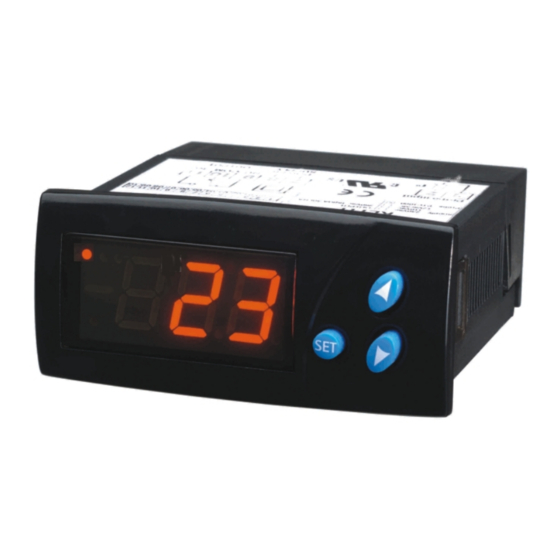

KELD KLTIMER Specification And Operating Instructions

Description

The timer controller acts on a relay connecting it for a
programmable time interval.
Timer features include soundwarning when the countdown expires,
count units in seconds or minutes
a blinking led) countdown ,
countdown input, manual control to switch ON/OFF the output,
and programmable maximum interval limit.

Model references

The model reference is given by: KLT11TIM - WY.
Where each sufix can take the following values:
W Display Color
Y Supply Voltage

Installation

NOTE: Unit must be mounted away from vibration, impacts,
water and corrosive gases.
• Cut hole in panel 71 x 29 mm (2.80 x 1.14 inches)
• Apply silicone (or rubber gasket) around the perimeter of the hole
to prevent leakage.
• Insert unit into hole of panel.
• Slide removable fitting clips onto unit from the back until secure to
panel.
• Wiring diagram is displayed on the top of the unit

Maintenance, cleaning and repair

After final installation of the unit, no routine maintenance is
required.
Clean the surface of the display controller with a soft and damp
cloth. Never use abrasive detergents, petrol, alcohol or solvents.
All repairs must be made by authorised personnel.
KLTIMER Timer Controller
Specification and Operating Instructions
(seconds are allways indicated by
abort by the keyboard, remote
R=Red, G=Green, B=Blue
230=230Vac, 110=115Vac
24=24Vac/dc, 12=12Vac/dc

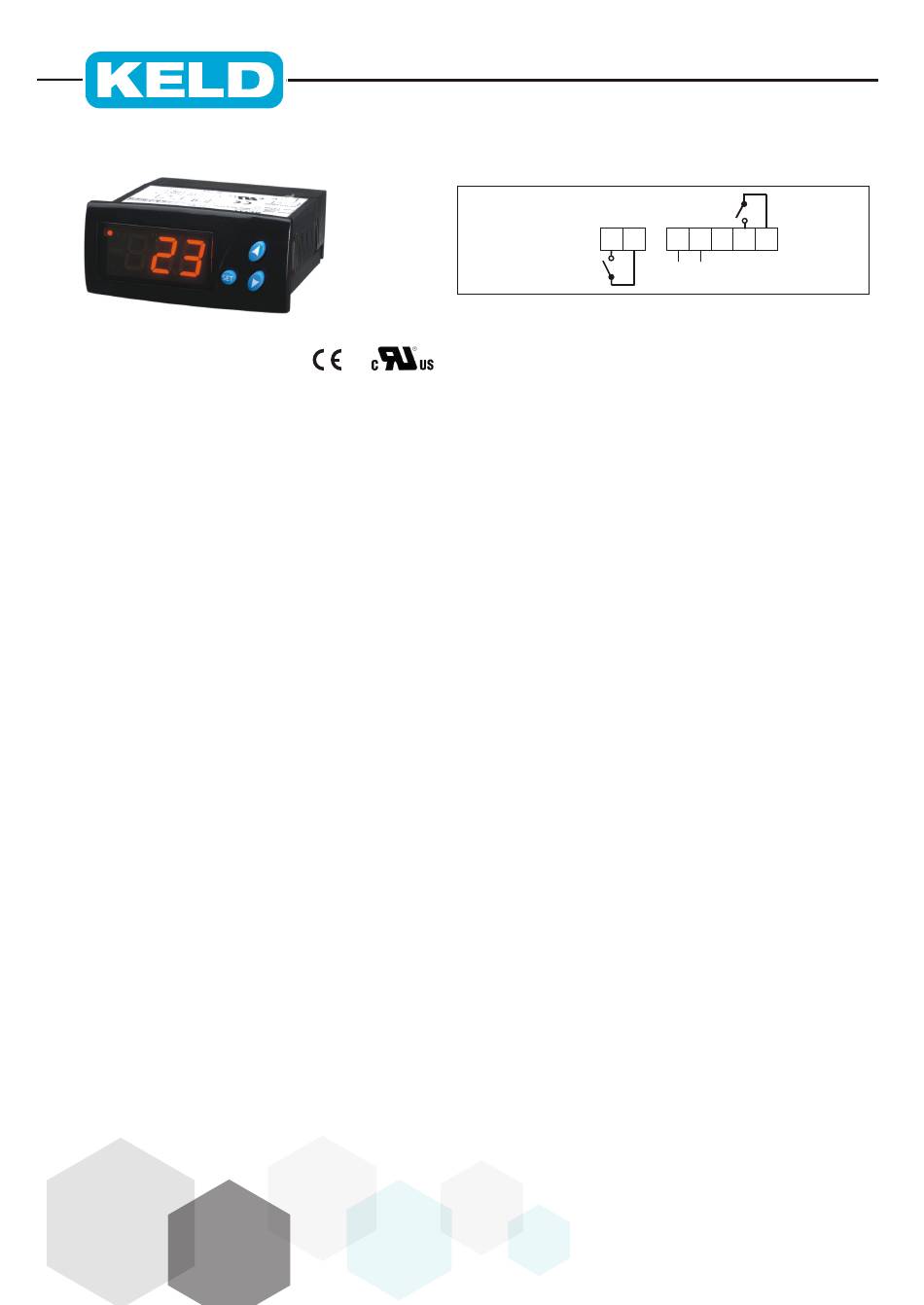

Wiring Diagram

KLTIMER
REMOTE
COUNTDOWN INPUT
1 2

Technical Data

Supply voltages
115Vac±10%, 230Vac±10%, 24Vac/dc±10%, 12Vac/dc±10%
Supply powers
4VA (230V)
Storage temperature
-20ºC to 80ºC (-4 to 176ºF)
Operating temperature
0ºC to 70ºC (32 to 158ºF)
Time resolution
1 sec
Displays
3-digit
Output
SPST Relay Resistive load 16A
1HP 240Vac -- 10FLA, 60LRA 240Vac
Dimensions
Front 77 x 36 mm (3.03 x 1.42 inch)
Depth 62 mm ( 2.44 inch)
Front Protection
IP64
Back Protection
IP20
3 4 5 6 7
OUT
POWER
OUTPUT
SUPPLY
ETDT1510I_090320
