Summary of Contents for Burris SIGNATURE LRF 2000

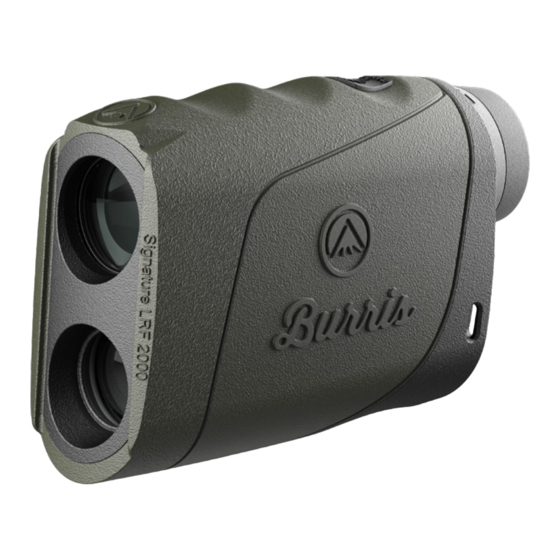

- Page 1 SIGNATURE LRF 2000 LASER RANGEFINDER...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety and Operation Precautions ..........Product Map ................Internal Display Element ............Eyepiece Adjustments ..............Battery..................Mode Set Up / Operation............Internal Display Brightness / Options ......... Ranging..................LOS vs. HOR and Angle Compensation........Specifications................Problems and Solutions............... Care and Maintenance.............. -
Page 3: Safety And Operation Precautions
Laser in its operation. Outside of the United States, the IEC is the governing body over laser products and has classified the Burris Signature LRF 2000 as Class 3R. Even so, there are a few precautions that are important to remember: •Do not depress the POWER button while aiming at a human eye or while looking... - Page 4 •Three ranging modes for maximum precision: Auto, Sport and Hunt. •Distances can be displayed as line-of-sight or horizontal with angles of degree. •The Signature LRF 2000 is nitrogen-filled for waterproof, fog proof performance. •Outer surfaces are rubber armored for protection and a sure grip.
-
Page 5: Product Map
SIGNATURE LRF 2000... -
Page 6: Internal Display Element
INTERNAL DISPLAY ELEMENTS The internal display on the Signature LRF 2000 will display the ranging reticle, distance to the target, measurement units (yards or meters), target angle, low battery indicator and ranging modes. -
Page 7: Eyepiece Adjustments
EYEPIECE The eyepiece on the Signature LRF 2000 is adjustable to ensure a crisp view of the target. LASER RANGER FINDER OPERATION Install Battery The laser rangefinder is powered by a CR2 lithium battery. The battery compartment is located on the back of the unit below the eye piece. Open the battery compartment and install the battery + side up. -
Page 8: Mode Set Up / Operation
MODE SETUP Settings Menu To power on press the range button. Then to access the settings menu, press and hold the Mode button for 2 seconds. The first menu screen to appear is the Ranging Mode selection. Press the Power button to change the active menu setting option. The selected setting will flash. - Page 9 MODES OF OPERATION Once you’ve accessed the settings menu, press the Power button to select between Auto, Sport or Hunt modes. Auto Mode – displays the range of the target with strongest signal Sport Mode – displays the range of the closest target in a group. This mode has a short delay when ranging.
-
Page 10: Internal Display Brightness / Options
DISPLAY OPTIONS There are five display options: • LOS - line-of-sight only • HOR – horizontal distance only • LOS and HOR – line-of-sight and horizontal • LOS and ANG – line -of-sight and angle (+ above horizontal, - below horizontal) •... -
Page 12: Ranging
RANGING Ranging Activation To activate the LRF, press the Range Button on the top. The ranging reticle will appear in the internal display. Single Measurement Place the small circle of the reticle on the object or target you want to range and press the Range Button once more. -
Page 13: Los Vs. Hor And Angle Compensation
HORIZONTAL DISTANCE 519.6 yds SHOOTING ANGLE 30° KNOW YOUR TARGETS PRECISE DISTANCE... - Page 14 HORIZONTAL DISTANCE 26.8 yds SHOOTING ANGLE 40° ANGLE COMPENSATION FOR THE MOST ACCURATE SHOT PLACEMENT...
-
Page 15: Specifications
SPECIFICATIONS Magnification MEASURE RANGE Objective Diameter 25mm Effective....5 – 2400 yds Field of View @ 100 yd 31.5 ft. Reflective....2400 yds Eye Relief 16mm Non reflective..1600 yds Deer/Game..1100 yds Angle Range ±70° Minimum Range... 5 yds Diopter Adjustment +/- 6 ACCURACY... -
Page 16: Problems And Solutions
The Signature LRF2000 is designed to provide trouble-free operation, but it if fails to function, try these steps before returning to Burris for warranty repair PROBLEM SOLUTION Does not turn on 1. Press and hold Power Button 2. Check the battery to make sure it is properly installed 3. -
Page 17: Care And Maintenance
CARE & MAINTENANCE The Signature LRF 2000 is fully waterproof and fogproof. In the event that the lenses are subjected to dust, dirt or mud, follow these steps to clean and protect the lens surface. Failure to remove grit before final cleaning can damage lens coatings. -
Page 18: Warranty
You can be confident that the optic you purchased is built to the most exacting standards. You can count on Burris to perform every time you use it. We’re so confident in the craftsmanship of our products that we back them with a no questions asked Forever Warranty. - Page 19 BurrisConnect SCAN FOR DOWNLOAD Download the BurrisConnect app for free access to our ballistic tools, manage Burris app-compatible optics, watch how-to videos, and keep current on all our new products. Available now on Apple Store and Google play.
- Page 20 BURRIS COMPANY 331 East 8th St., Greeley, CO 80631 (970) 356-1670 BURRISOPTICS.COM Facebook.com/BurrisOptics INSTR-0351...
