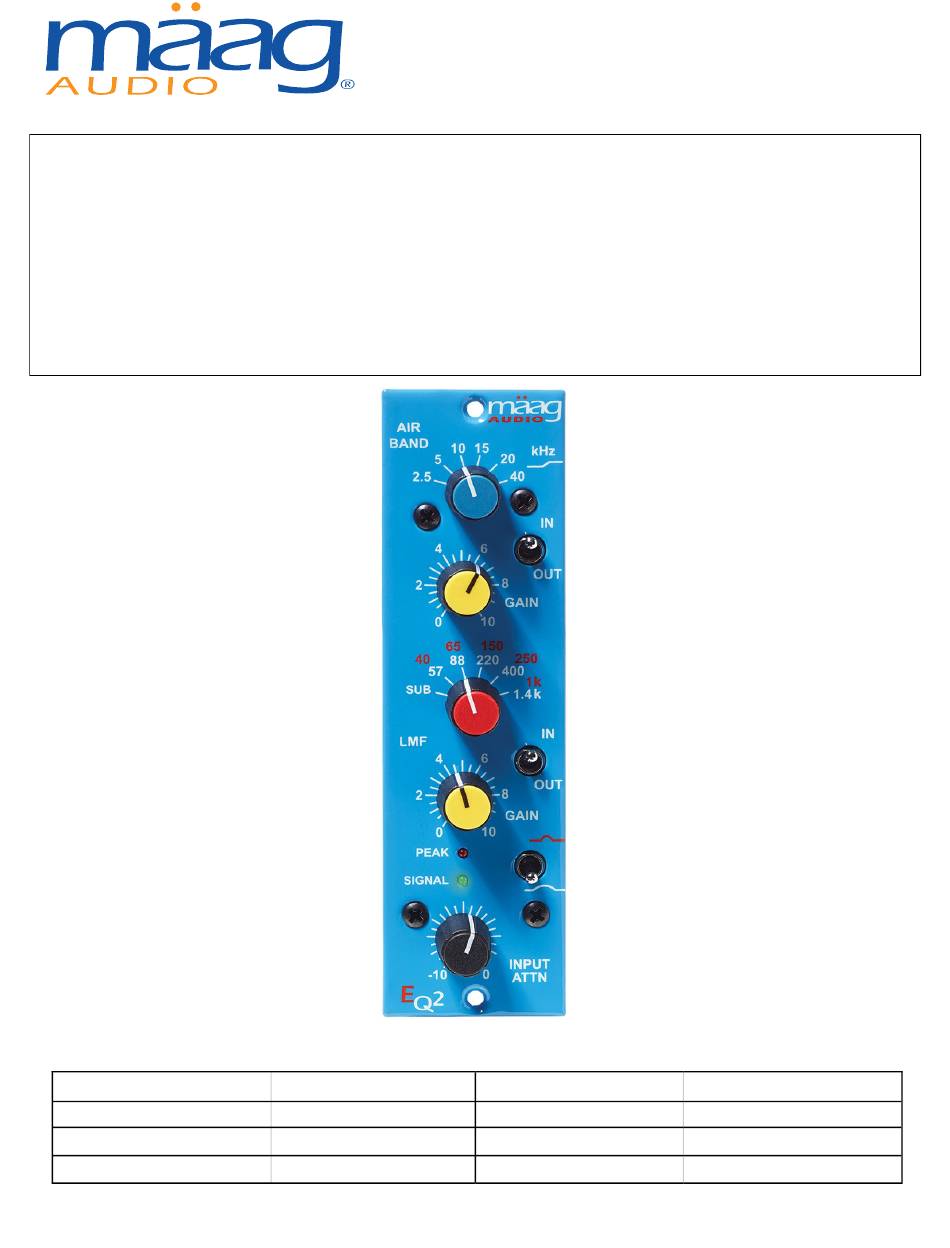

The Maag Audio EQ2® (500 Series) is a no compromise one channel 2 band equalizer with AIR BAND®, Low Mid
Frequency (LMF) bell boost from SUB to 1.4 kHz, and an INPUT ATTN to control down to –12 dB of attenuation. The
EQ2's AIR BAND® is equipped with an additional sassy frequency selection @ 15 kHz, making the EQ2 hard to re-
sist in any situation. The LMF provides both tight or wide bell curve options to dial in the perfect amount of warmth on
the 2-bus. When it comes to tracking, the EQ2 will quickly become your favorite preamps' "better half" by controlling
the input (INPUT ATTN) (great for correcting over driven mic preamp transformers) before eq'ing with the versatile
AIR BAND and LMF. The EQ2 is compatible with the API 500-6B lunchbox® and 500VPR rack systems and any oth-
er 500 Series spec rack.
Following its EQ4® predecessor, the EQ2 provides unparalleled transparency and top end presence with the same
high quality components found in the powerhouse 6 band EQ4. EQ adjustments are obtained with minimal phase
shift and detent controls allow for easy recallable settings, even on the INPUT ATTN.
AIR BAND
®
Boost only shelf at 2.5 kHz, 5 kHz, 10 kHz,
15 kHz, 20 kHz, or 40 kHz. Frequencies
below the shelf peaks are also affected due
to the transitional slope.
AIR BAND GAIN
Gain control for the AIR BAND
+20 dB max gain
LMF
Low Mid Frequency selector. Bell curve
boost at Sub, 40 Hz, 57 Hz, 65 Hz, 88 Hz,
150Hz, 220 Hz, 250 Hz, 400 Hz, 1 kHz, or
1.4 kHz.
LMF GAIN
Gain control for the LMF
+12 dB (tight bell) to +15 dB (wide bell)
PEAK
Red LED starts to illuminate when the output
signal reaches 23 dBu
SIGNAL
Green LED indicates audio signal presence.
Illumination starts @ -20 dBu
*Specification
Frequency Response
Nominal Input Impedance (XLR)
Nominal Output Impedance (XLR)
*Specifications subject to change without notice.
EQ2® 2 Band Equalizer w/AIR BAND® (500 Series)
Specifications
Value
-2dB points, 10Hz & 75kHz
48 K Ohms, balanced
50 Ohms, balanced
Copyright © 2013 Maag Audio, LLC
Model: EQ2-500
AIR BAND IN/OUT
Engages and disengages the AIR BAND
LMF IN/OUT
Engages and disengages the LMF
LMF Bell Selection
Choose between tight (Red) or
broad (White) bell curves
INPUT ATTN
Input attenuator (0-12 dB)
*Specification
Headroom
THD + Noise
Value
+25 dBu
< 0.005%
