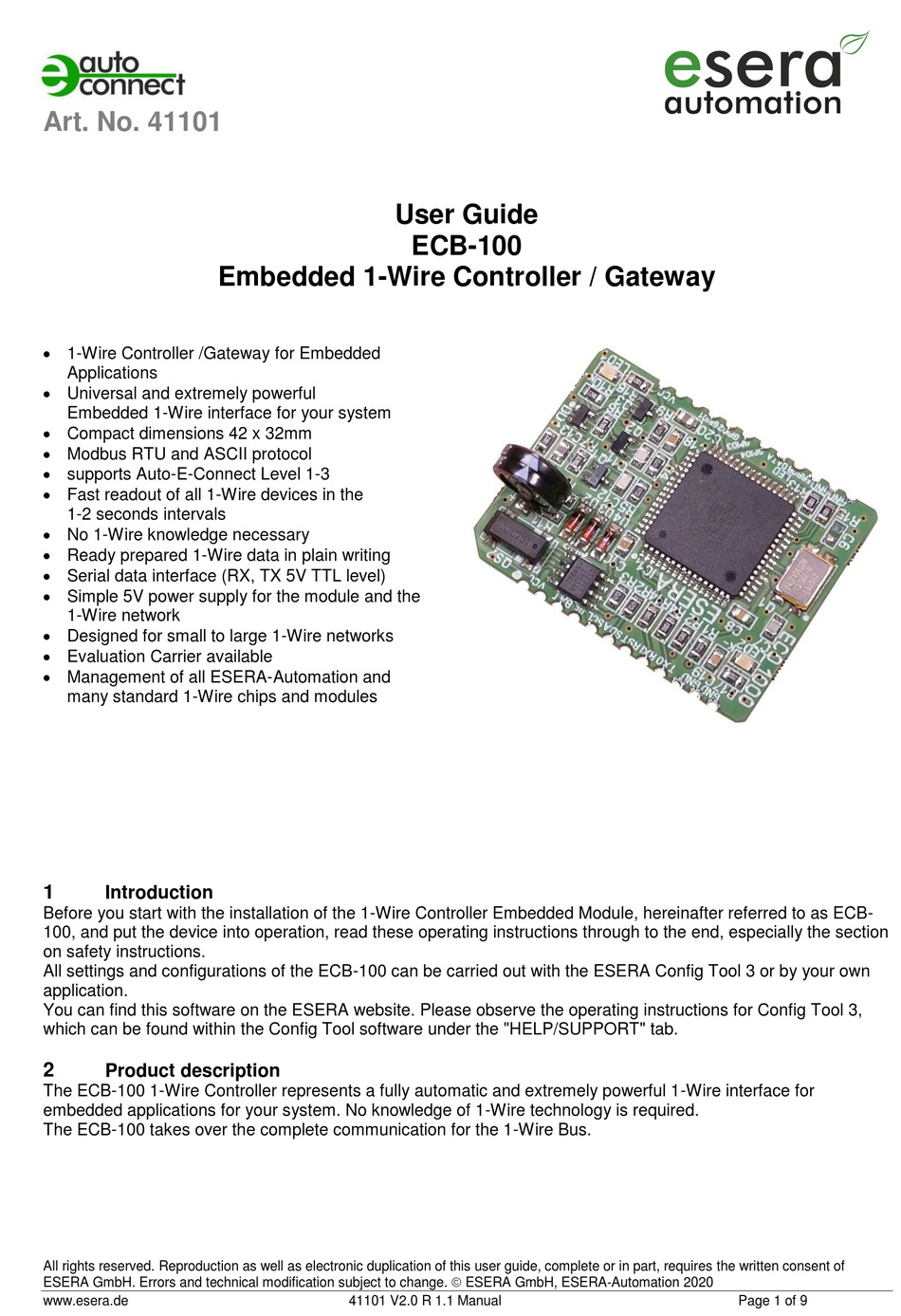

esera automation auto connect ECB-100 User Manual

Art. No. 41101
 1-Wire Controller /Gateway for Embedded
Applications
 Universal and extremely powerful
Embedded 1-Wire interface for your system
 Compact dimensions 42 x 32mm
 Modbus RTU and ASCII protocol
 supports Auto-E-Connect Level 1-3
 Fast readout of all 1-Wire devices in the
1-2 seconds intervals
 No 1-Wire knowledge necessary
 Ready prepared 1-Wire data in plain writing
 Serial data interface (RX, TX 5V TTL level)
 Simple 5V power supply for the module and the
1-Wire network
 Designed for small to large 1-Wire networks
 Evaluation Carrier available
 Management of all ESERA-Automation and
many standard 1-Wire chips and modules
1
Introduction
Before you start with the installation of the 1-Wire Controller Embedded Module, hereinafter referred to as ECB-
100, and put the device into operation, read these operating instructions through to the end, especially the section
on safety instructions.
All settings and configurations of the ECB-100 can be carried out with the ESERA Config Tool 3 or by your own
application.
You can find this software on the ESERA website. Please observe the operating instructions for Config Tool 3,
which can be found within the Config Tool software under the "HELP/SUPPORT" tab.
2
Product description
The ECB-100 1-Wire Controller represents a fully automatic and extremely powerful 1-Wire interface for
embedded applications for your system. No knowledge of 1-Wire technology is required.
The ECB-100 takes over the complete communication for the 1-Wire Bus.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA GmbH. Errors and technical modification subject to change. ESERA GmbH, ESERA-Automation 2020
www.esera.de
Embedded 1-Wire Controller / Gateway
41101 V2.0 R 1.1 Manual
User Guide
ECB-100
Page 1 of 9
