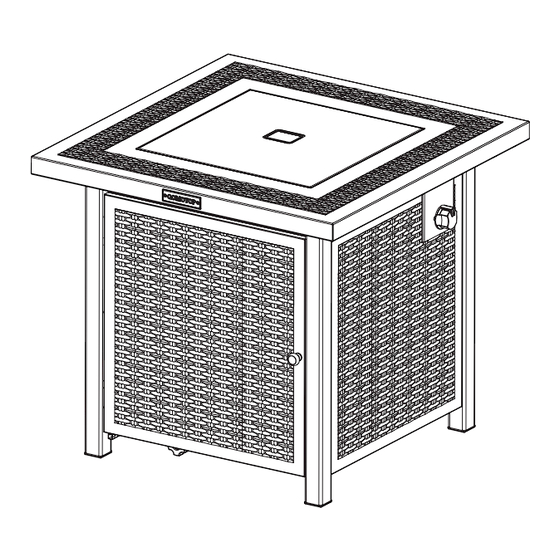

- Page 1 GFP02T SRGF11626...
-
Page 2: Carbon Monoxide Hazard
WARNINGS AND CAUTIONS Read the instructions before use. This appliance must be installed in accordance with such regulations as are enforced. DANGER WARNING: For Outdoor Use Only. If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. -
Page 3: Warnings And Cautions
WARNINGS AND CAUTIONS NOTE: PLEASE READ THE FOLLOWING SAFETY RULES WARNING: Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required as necessary. -
Page 4: Specification
WARNINGS AND CAUTIONS NOTE: PLEASE READ THE FOLLOWING SAFETY RULES: WARNING: SPECIFICATION REMINDER BEFORE ASSEMBLY Verify that all parts are included with your gas fire pit BEFORE you begin assembly by checking the Parts and Hardware List. For your convenience, some parts may be pre-assembled or attached to fire pit components. If all parts are not included, do not attempt to assemble fire pit. - Page 5 PACKAGE CONTENTS TOOLS NEEDED: (NOT INCLUDED) Screwdriver Estimated time for assembly: 30-45 minutes.
-
Page 6: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Door Table Top Side Panel A Door Handle Side Panel B Cylinder Holder Cylinder Locking Bolt Leg with Door Magnet Cover Lid Cylinder Holder Pole Protecting Wire Gas Valve Panel Lava Rock HARDWARE CONTENTS (shown actual size) M5 x 12 Bolt Assembly... - Page 7 ASSEMBLY INSTRUCTIONS Choose a good, cleared assembly area and get a friend to help y ou put your gas fire pit together. Lay cardboard down to protect gas fire pit finish and assembly area. Attach 3 legs (D) and 1 leg with door magnet (E) to the table top (A) with (12) M6x12 bolts (DD) as Fig. 1. Fig.
- Page 8 ASSEMBLY INSTRUCTIONS Attach gas valve panel ( ) onto side panel A (B), connect it with the fire bowl with (4) M5x12 bolts assembly (AA) Insert valve into the injection pipe of burner as illustrated. Insert the end of electrode wire into valve as illustrated. Fig.
- Page 9 ASSEMBLY INSTRUCTIONS Attach side panel B1 (C) to legs (D) with (6) M5x12 bolts (BB) as Fig. 5. Fig. 5 Hardware Used M5 x 12 Bolt Attach side panel B2 (C) to legs (D) with (6) M5x12 bolts (BB) as Fig. 6. Fig.
- Page 10 ASSEMBLY INSTRUCTIONS Attach cylinder holder poles (F) to cylinder holder (J) with (4) M6x12 bolts (DD) and then screw cylinder locking bolt (K) to cylinder holder (J) as Fig. 7. Fig. 7 Hardware Used M6 x 12 Bolt Attach the cylinder holder assembly to 4 legs with (4) M5x20 bolts (CC) as Fig. 8. Note: Make sure the cylinder locking bolt (K) plastic head is facing outwards.
- Page 11 ASSEMBLY INSTRUCTIONS hot fire bowl as Fig. 9. Fig. 9 Fire Bowl Hardware Used M5 x 12 Bolt Screw door handle (I) to door (H) as Fig.10. Fig. 10...
- Page 12 ASSEMBLY INSTRUCTIONS Attach door (H) to front right leg (D) assembly with (4) ST4.2x9.5 bolts (EE) as Fig.11. Note: With the help of a friend, turn the gas fire pit into upright position after this step finished. Fig. 11 Hardware Used ST4.2 x 9.5 Bolt...
- Page 13 ASSEMBLY INSTRUCTIONS Put the lava rocks (N) into the burning area of the table top (A). Place the cover lid (L) onto the table top (A) when the gas fire pit is not in use. Note: to avoid ignition failure, do not cover the flame orifice with lava rocks. Fig.
-
Page 14: Installation Instructions
INSTALLATION INSTRUCTIONS contact customer service: support@Qomotop.com... -
Page 15: Operation
OPERATION WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN PROPERTY DAMAGE, SERIOUS INJURY, OR DEATH. WARNING!!! WARNING Do not use an open flame to check for leakage. FOR YOUR SAFETY: Do not smoke during testing. - Page 16 OPERATION WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN PROPERTY DAMAGE, SERIOUS INJURY, OR DEATH. Before Lighting The gas fire pit should be thoroughly inspected before each use, and by a qualified service person at least annually.
- Page 17 OPERATION CAUTION: AVOID INHALING FUMES EMITTED FROM THE GAS APPLIANCE'S FIRST USE. SMOKE AND ODOR FROM THE BURNING OF OILS USED IN MANUFACTURING WILL APPEAR. BOTH SMOKE AND ODOR WILL DISSIPATE AFTER APPROXIMATELY 30 MINUTES. THE GAS APPLIANCE SHOULD NOT PRODUCE THICK BLACK SMOKE. NOTE: The burner may be noisy when initially turned on.
- Page 18 LOCATING FIRE PIT FOR USE CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT ABOVE, BESIDE OR UNDER THIS APPLICANCE WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE SERIOUSLY DAMAGED. This gas fire pit is primarily used for the heating of outdoor patios, decks, spas, pools and open working areas.
-
Page 19: Maintenance And Storage
MAINTENANCE AND STORAGE CLEANING AND MAINTENANCE : To enjoy years of outstanding performance from your WARNING: gas fire pit, make sure you perform the following FOR YOUR SAFETY ; maintenance activities on a regular basis: DO NOT touch or move gas appliance for at least 45 minutes after use. - Page 20 MAINTENANCE AND STORAGE NOTE: Store the fire pit indoors during the winter if it will be subjected to Wait until the appliance is freezing temperatures. cool before covering. Disconnect and remove the cylinder from the appliance before the appliance can be stored indoors. STORAGE Turn the control knob to "OFF"...
-
Page 21: Limited One-Year Warranty
Proof of purchase (dated register receipt) is required for warranty claims. How to obtain service: If you have any questions or concerns please contact customer service: support@Qomotop.com...
