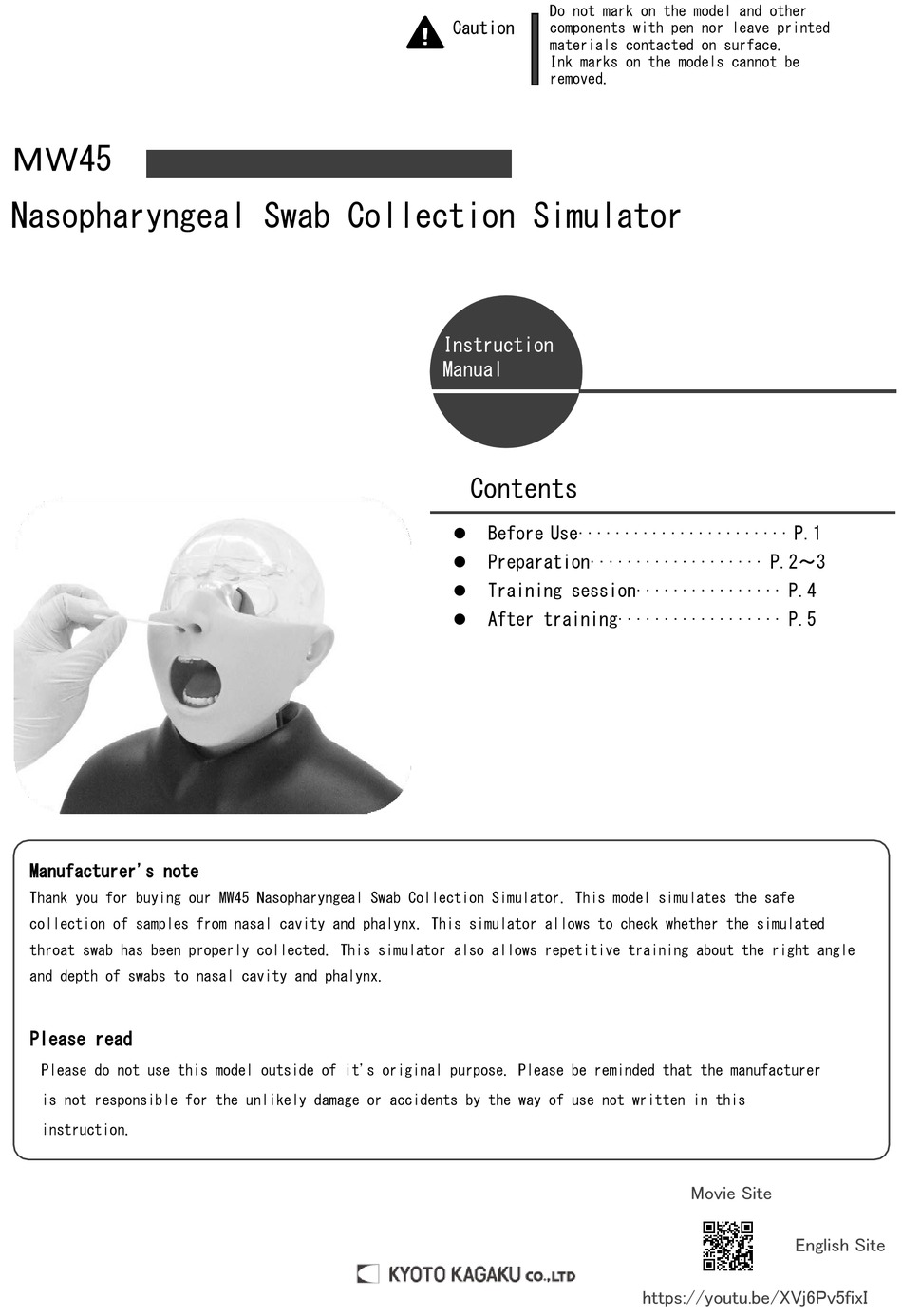

ＭＷ45
Nasopharyngeal Swab Collection Simulator
Manufacturer's note
Thank you for buying our MW45 Nasopharyngeal Swab Collection Simulator. This model simulates the safe
collection of samples from nasal cavity and phalynx. This simulator allows to check whether the simulated
throat swab has been properly collected. This simulator also allows repetitive training about the right angle
and depth of swabs to nasal cavity and phalynx.
Please read
Please do not use this model outside of it's original purpose. Please be reminded that the manufacturer
is not responsible for the unlikely damage or accidents by the way of use not written in this
instruction.
Do not mark on the model and other
Caution
components with pen nor leave printed
materials contacted on surface.
Ink marks on the models cannot be
removed.
Instruction
Manual
Contents
Before Use······················· P.1
Preparation··················· P.2～3
Training session················ P.4
After training·················· P.5
Movie Site
English Site
https://youtu.be/XVj6Pv5fixI
Advertisement
Related Manuals for Kyoto Kagaku MW45
Summary of Contents for Kyoto Kagaku MW45
- Page 1 After training·················· P.5 Manufacturer's note Thank you for buying our MW45 Nasopharyngeal Swab Collection Simulator. This model simulates the safe collection of samples from nasal cavity and phalynx. This simulator allows to check whether the simulated throat swab has been properly collected. This simulator also allows repetitive training about the right angle and depth of swabs to nasal cavity and phalynx.
- Page 2 Before use Set includes Set includes Before you start, please ensure that you have all components listed below. a. Main model･･････････････････1 b. Cross Sectional Model･･･････1 Replacement pad ････････････6 （Already set in the main model） c. Syringe（10ml）･････････････1 d. Disposable cup（200ml）･･････1 e. Swabs for Coloring（set of 10) Instruction manual 注...
- Page 3 Preparation of replacement pads Preparation Preparation of replacement pads and how to replace The replacement pad for the nasal cavity is already set at the time of delivery. This pad is to be replaced if necessary. ※If pad is incorrectly set, samples cannot be confirmed during training.
- Page 4 Preparation for simulated Preparation throat swab Preparation for simulated throat swab 1） Simulated throat swab in blue color can be made by pouring about 100ml of water to the disposable cup, stir the swab for coloring several times. ●Caution ・If allowed to air-dry, the coloring swabs can be reused multiple times. ・Please handle the simulated throat swabs with care because of the possibility of permanent stain damage to clothes.
- Page 5 Nasopharyngeal Swab Collection Training Training Training Item ・Nasopharyngeal Sample Collection By inserting the cotton swab in proper angle and depth, the the tip of the cotton swab reaches the replacement pad of simulated throat sample, which allows trainee to confirm the cotton swab reached the proper collection area. The shape of the left and right nasal cavities are different, so two different angles of insertion can be practiced.
- Page 6 After Training Training After training １）After training, discharge the simulated throat sample inside the tube using the syringe attached. Dispose of the simulated throat sample. ２）By following the procedures in page 2, pull out the replacement pad, squeeze the simulated throat swab, and restore the pad in the original position.
- Page 7 Code number Name 11426-010 Replacement pad for MW45（a set of 5) 11402-010 Swabs for coloring Blue（a set of 10) 11426-010 Replacement pad for MW45（a set of 5) 11402-010 Swabs for coloring 11426-010 Replacement pad for Blue for MW45（a set of 10) MW45（a set of 5)
