Summary of Contents for Praxisdienst PetPro

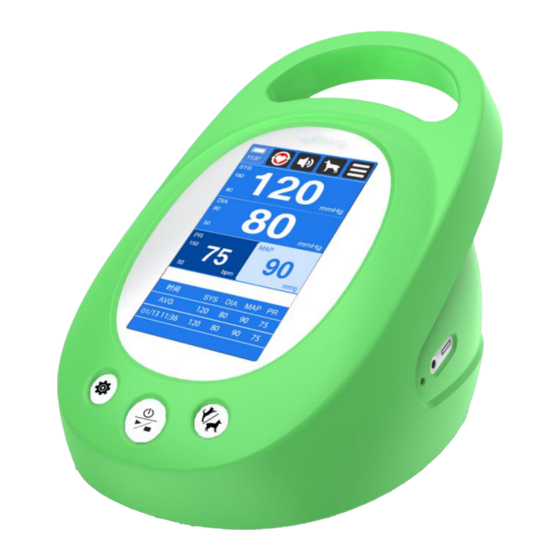

- Page 1 User Manual Blood Pressure Monitor For Animals PetPro...
- Page 2 ID. PetPro is a portable device which is lightweight and supports touch and keystroke operation. The device is powered by a single rechargeable lithium-ion battery or four AA batteries at the bottom of the device. All parameters in the device can set the highest and lowest alarm limits.
-
Page 3: Table Of Contents
Data review..........................14 Blood pressure measurements....................17 Select the cuff.........................17 Blood pressure measurements....................17 Interval measurement mode....................17 STAT mode (continuous measurement mode)..............18 Alarm............................19 Technical alarm........................19 Physiological alarm........................20 Technical information......................21 Product model........................21 Performance indicators......................21 Frequently asked questions....................22 PetPro Use Manual... -
Page 4: Icons And Symbols
Start interval blood pressure measurement pattern Adjust the volume View data Exit menu Return to Upper menu Delete all stored memory data Mean selected blood pressure values Begin STAT mode Bluetooth On/off/start/stop blood pressure measurements Battery power indicator PetPro Use Manual... -
Page 5: Appearance
Enter the Settings menu. Power button Short press to turn it on, long press for 2 seconds to turn it off; After turning it on, short press to measure or stop measurement. Animal mode switch button Switch animal mode. PetPro Use Manual... -
Page 6: Connection Interface
2.2 Connection Interface 1. Power adapter interface Insert the AC adapter plug into the PetPro monitor, then plug the other end of the AC adapter into the power supply to charge the battery, and only use the AC adapter provided by our company, only use the AC adapter when using lithium battery power supply. -
Page 7: Screen Display
The monitor boot will display the measurement interface. Here is a quick preview of the key symbols and values you will see. Icon menu After pressing the "Menu" button on the main interface, the "Icon Menu" will open. PetPro Use Manual... -
Page 8: Start/Stop Button
7.interval blood pressure measurement pattern 8.Bluetooth 2.4 Button on/Off Button indicates the status of the PetPro monitor. In shutdown state, short press the button to boot, boot time by two seconds shutdown. During the blood pressure reading, press the button to measure the blood pressure and stop the measurement again. -
Page 9: System Functions
(shortcut key) 3.2 Volume The default setting of the speaker in the PetPro is turned off to prevent pets from being disturbed by sound. To switch between speaker off, low volume and high volume, please press the "volume" button to switch. -
Page 10: Settings
3.4 Work mode PetPro support (Spot) multi-user measurement mode or (Monitor) monitoring mode. Spot support up to 100 ID number management (0-99), each I D supports 200 sets of data storage, suitable for different animal temporary measurement management. -
Page 11: User Settings
Add users Delete users 4.1 Alarm settings PetPro BP Monitor allows clinical alarm signals for all values (systolic blood pressure, diastolic blood pressure, pulse rate). to change the alarm value, select the settings interface in the icon menu and then ... -
Page 12: Blood Pressure Settings
DIA upper and lower limit range :10 mmHg ~220 mmHg Pulse rate upper and lower limit setting range :25 bpm ~500 bpm 4.2 Blood pressure settings Measurement mode: Manual( manual), Auto( automatic), Stat( continuous). Sleeve type: small cuff mode (small animal), large cuff mode (large animal). PetPro Use Manual... -
Page 13: System Settings
Time: Time adjustment. "Machine Mainte ": Set language. Pass word is “111112”. Device Information: Device Version Number. Restore factory settings: In addition to language settings, other functions can be restored to default factory settings. PetPro Use Manual... -
Page 14: Data Review
1. Select "Data Review" in the "Settings" menu or select in the icon menu to enter the historical data viewing interface. For example, in Monitor mode: The users can check the blood pressure list and blood pressure trend chart in Data Review: PetPro Use Manual... - Page 15 When we click, we will enter the average calculation interface, and select the data result of the average we want to calculate. When we click the delete icon, we can select the data result we want to delete. PetPro Use Manual...
- Page 16 Average of selected data 3. Delete data In the data list, clicking on the identifier “Delete data”, it will delete all blood pressure data under the user. Delete all memory data PetPro Use Manual...
-
Page 17: Blood Pressure Measurements
5. Blood pressure measurements 5.1 Select the cuff PetPro monitor is equipped with different sizes of blood pressure cuff. Each cuff contains important marks, which helps to select the correct cuff size, measure the circumference of the limb, and select the cuff with a width of 40% of the dog's circumference and 30% of the cat's circumference.When the cuff is too small, the... -
Page 18: Stat Mode (Continuous Measurement Mode)
5.4 STAT mode (continuous measurement mode) PetPro monitor will automatically continuously measure blood pressure in STAT mode. Tip: in STAT mode, when the equipment does not start measuring blood pressure, it can start the blood pressure measurement manually. If the... -
Page 19: Alarm
See the battery life indicator on the Battery is too main screen. If necessary, replace the battery. Air can not pass Check to make sure that the hose is Airflow through the hose or not bent and not squeezed. PetPro Use Manual... -
Page 20: Physiological Alarm
6.2 Physiological alarm Physiological alarm occurs when the measured value reaches or exceeds the high or low limit set by this parameter. When physical alarm occurs, there will be a red warning LED indicator and intermittent beep sound. PetPro Use Manual... -
Page 21: Technical Information
Input voltage range: Universal (100 to 240 V AC) Input frequency General purpose (50-60 Hz) range: Adapter output: DC: 9 V-2A Lithium batteries: 7.4 V,2.6Ah ,19.24Wh Size: 15.9 cm x 12.7cm x 13.3cm Weight: 0.95 Kg with battery PetPro Use Manual... -
Page 22: Frequently Asked Questions
. Can this monitor be used in awake and anaesthetic animals? Yes.PetPro Blood Pressure Monitor can be used in anesthetized and awake animals. How to prevent the cuff from sliding down or falling off? Tie the cuff as tightly as possible. - Page 23 How much is the minimum and maximum weight of cats and dogs Min 1kgs to Max 200kgs. When to use PetPro monitors for blood pressure measurements? There are no restrictions. Any cat or dog with a suitable cuff range limb is applicable.
- Page 24 TOOTOO MEDITECH CO., LTD. Address: RM 607, HAIHANG CITY BUSINESS CENTER, LONGGANG, SHENZHEN, CHINA. Tel: +86-755-28306385 Email:info@newtootoo.com PetPro Use Manual...
